CONFIRM THE PART FITS

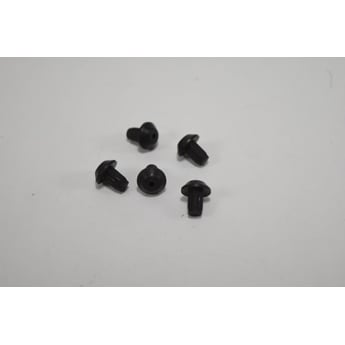

Range Surface Burner Grate Pad Set 814383
Part #814383
Replaced by #814323
?
Manufacturer substitution
This part replaces 814383. Substitute parts can look different from the original.
Online Only Price
$8.99 |Â
10% OFFÂ Phone Price : $9.99
In Stock
For ZIP codes near Edit
This part fits
Part Information
Special details: Adhesive isn't included with pad set 814323; order adhesive part number W10841140 separately.
This burner grate set (part number 814323) is for cooktops.
Burner grate set 814323 provides a stable cooking surface for cookware on the surface burner. The burner grate set contains all the burner grates on the cooktop.
Wait until the surface is cool to the touch before installing this part.
Frequently Used Together
- $6.29 |Â14% OFFÂ Phone Price : $7.29
- $21.89 |Â19% OFFÂ Phone Price : $26.89
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #KGST307BAL2 KitchenAid gas range | KGST307BAL2 | Cooktop |
| Model #KGST307BAL0 KitchenAid gas range | KGST307BAL0 | Cooktop |
| Model #KGRT507BAL1 KitchenAid gas range | KGRT507BAL1 | Cooktop |
| Model #KGST307BBL1 KitchenAid gas range | KGST307BBL1 | Cooktop |
| Model #KGRT507BAL3 KitchenAid gas range | KGRT507BAL3 | Cooktop |
| Model #KGST307BWH2 KitchenAid gas range | KGST307BWH2 | Cooktop |
| Model #KGST300BAL0 KitchenAid gas range | KGST300BAL0 | Cooktop |
| Model #KGST300BWH2 KitchenAid gas range | KGST300BWH2 | Cooktop |
| Model #KGRT507BAL2 KitchenAid gas range | KGRT507BAL2 | Cooktop |
| Model #KGRT507BBL1 KitchenAid gas range | KGRT507BBL1 | Cooktop |
Reviews
Easy to install
Just take out the old ones and pop in the new ones
Carol, Traverse city Michigan
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Not quite right size, slightly small
While the rubber material appeared to be of the same quality as the original part, the diameter of the post which is inserted into the metal grate was slightly small. I was expecting an interference fit, requiring at least a little pressure to insert, so the pad would not fall out when washing the grate. Also, the diameter of the pad itself appeared slightly small. The online chat service for SearsPartsDirect.com provided the part number based on my Sears Kenmore Elite range model number, as this information was not available elsewhere, such as the installation or use guide, or the parts "explosion" diagrams on this site. I ordered and received the recommended part. It might be there is another part that fits better, but no apparent way to identify other then buying and inspecting. I considered using a drop of silicon sealant in the metal grate post hole to help retain the part, but not sure how that would hold up to the heat. Meanwhile, I am being careful when washing the grate to not lose the part if it falls out.
QualityMattersJoe, Washington State
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Grate pads for stove top.
Representative on phone was very helpful; deserves a 5 rating. Product seems overpriced and doesn't fit securely in its hole in the grate. An adhesive was offerred during the call but I didn't think it would be needed.
Undisclosed, California
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- Less than 30 minutes
Rubber feet for Stove grates. Kenmore.
Perfect fit when sealed with silicone sealant. Just a shame this tiny package cost $20.00 to ship!!! We shall see if they hold up.
Undisclosed, Alaska
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Grate pads for gas stove
You will need high temp silicon adhesive to keep the feet from falling out. Took a trip into town to purchase. Otherwise very easy to install.
Randyfrom F, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Did not fit properly
Too large for opening, would not seat properly, possibly wrong part
Too s t b, Memphis, TN
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Way, way, way overpriced.
Very easy to install. Just push in. ................
Ramonj, Napa, CA
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Too small, the dimensions on page were not true
Just insert bumpers in grate holes. I used car black gasket maker to hold them in.
bumpers, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
