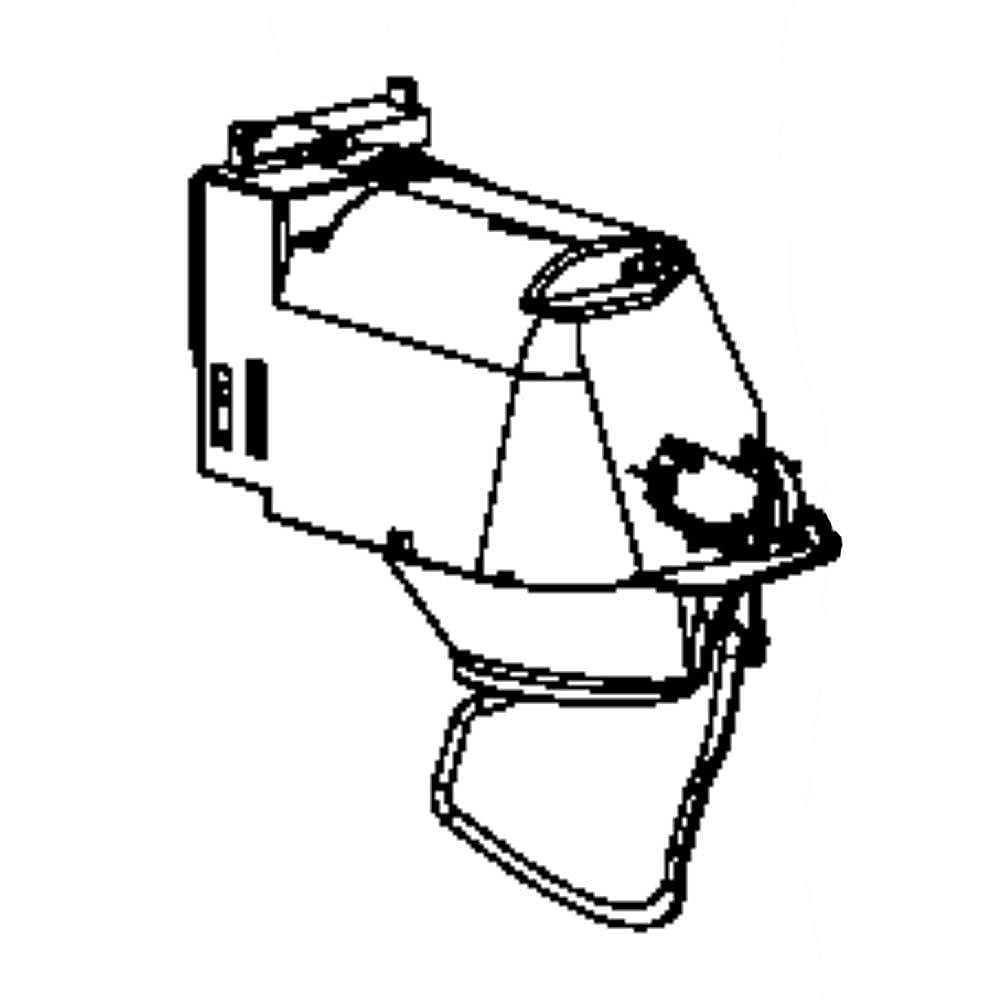

Refrigerator Dispenser Ice Chute Door And Funnel Assembly WR13X10735

Refrigerator Dispenser Ice Chute Door and Funnel Assembly WR13X10735

5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Part #WR13X10735

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This dispenser ice chute door and funnel assembly (part number WR13X10735) is for refrigerators.

Dispenser ice chute door and funnel assembly WR13X10735 opens to let ice through when dispensing into a glass or other container. The assembly may include multiple parts; refer to your parts diagram for a complete list of parts included.

Unplug the refrigerator and safely store any food that could deteriorate while the power is off before installing this part. Wear work gloves to protect your hands.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #GFSF6KKXBBB GE bottom-mount refrigeratorGFSF6KKXBBB
Fresh food doors
Shop Parts
Model #GFSL6KKXBLS GE bottom-mount refrigeratorGFSL6KKXBLS
Fresh food doors
Shop Parts
Model #GFSS6KKXBSS GE bottom-mount refrigeratorGFSS6KKXBSS
Fresh food doors
Shop Parts
Model #GFSF6KKYABB GE bottom-mount refrigeratorGFSF6KKYABB
Fresh food doors
Shop Parts
Model #PFSF6PKXBBB GE bottom-mount refrigeratorPFSF6PKXBBB
Fresh food doors
Shop Parts
Model #GFSF6KKXBWW GE bottom-mount refrigeratorGFSF6KKXBWW
Fresh food doors
Shop Parts
Model #PFSF6PKXBWW GE bottom-mount refrigeratorPFSF6PKXBWW
Fresh food doors
Shop Parts
Model #GFSF6KKYAWW GE bottom-mount refrigeratorGFSF6KKYAWW
Fresh food doors
Shop Parts
Model #GFSF6PKBABB GE bottom-mount refrigeratorGFSF6PKBABB
-
Shop Parts
Model #PFSF6PKXEBB GE bottom-mount refrigeratorPFSF6PKXEBB
Fresh food doors
Shop Parts

Reviews

Exact part perfect fit
January 23, 2019

I replaced the water and ice chute assembly on my GE refrigerator. The most difficult part of the process was removing the control panel. To remove the control panel a small screw driver was inserted into the small hole on the right underside of the panel. The screw had to be inserted about half an inch to an inch and the I pushed to my right to release the lower tab. Once the lower tab is released all the other could be released. Take your time and be careful not to break any tabs. After the panel was removed there were four electrical connectors to disconnect and the water line had to be pulled out from the assembly. There were only two screws to remove and the assembly slid out easily. To reinstall do the reverse and the control panel snapped back in easily with a little pressure. Overall easy job.

Charlie728, Chesapeake, Va

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
30 minutes - 1 hour
