CONFIRM THE PART FITS
Range Oven Door Hinge and Receptacle Kit, Right 12400029
Part #12400029
Part Information
This oven door hinge and receptacle kit (part number 12400029) is for ranges.

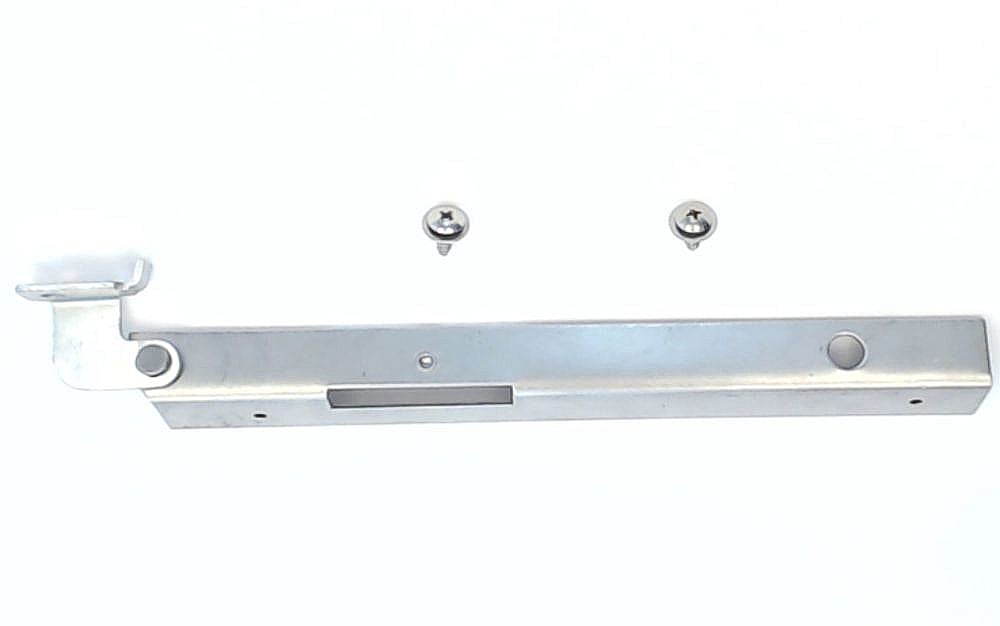

Oven door hinge and receptacle kit 12400029 includes the receptacle that connects the hinge to the oven frame, and the hinge that controls the rate at which the door opens and allows the door to stay open at an angle. The kit contains one hinge, one receptacle and installation instructions.
Wait until the surface is cool to the touch before starting the repair. Wear work gloves to protect your hands. Caution: The oven door is heavy, so you might need two people to safely lift it off the oven frame for servicing.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #BT22LA-4STVX Magic Chef range | BT22LA-4STVX | Body |
| Model #BT16MK-4T Magic Chef range | BT16MK-4T | Body |
| Model #BT18LK-4Z Magic Chef range | BT18LK-4Z | Body |
| Model #BT18NK-4T Magic Chef range | BT18NK-4T | Cavity & door |
| Model #CLY2231BDB Magic Chef range | CLY2231BDB | Door |
| Model #BT16PA-4T Magic Chef range | BT16PA-4T | Cavity & door |
| Model #BT18LK-4TZ Magic Chef range | BT18LK-4TZ | Body |
| Model #BT16KA-4 Magic Chef range | BT16KA-4 | Oven |
| Model #22RW-3B-49 Magic Chef range | 22RW-3B-49 | Door |
| Model #BT22NA-4TX Magic Chef range | BT22NA-4TX | Cavity & door |
Reviews
Needed instructions
My purpose in ordering the part was to receive the instructions that was to come with it -non were inclosed; therefore making installations questionable.
butch100, Rio Rancho
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- More than 2 hours
