Evaporative Cooler

Model # ED630D/RD63D Official Adobe Aire evaporative cooler

Here are the diagrams and repair parts for Official Adobe Aire ED630D-RD63D evaporative cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Pump A400113A
#4

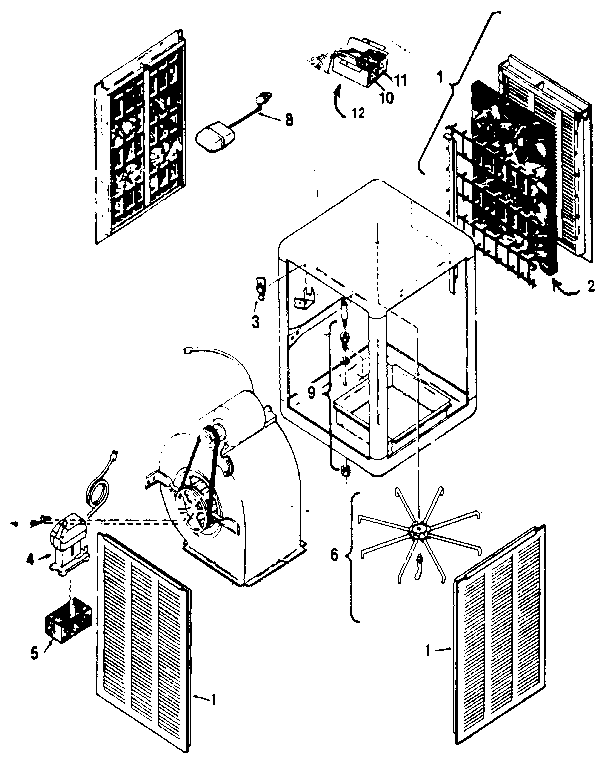

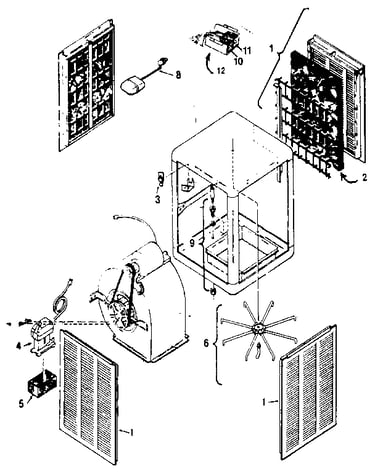

Down discharge evaporative cooler diagram

Pump

Part #A400113A

The manufacturer no longer makes this part, and there's no substitute part

Rcptcle Box M708501A
#12

Down discharge evaporative cooler diagram

Rcptcle box

Part #M708501A

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2-905
#10

Down discharge evaporative cooler diagram

Receptacle

Part #P2-905

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel A305002A
#16

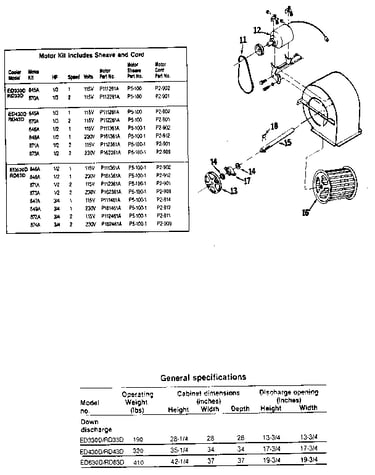

Motors and associated diagram

Air conditioner blower wheel

Part #A305002A

The manufacturer no longer makes this part, and there's no substitute part

Evaporative Cooler Media Pad Kit AP568A
#2

Down discharge evaporative cooler diagram

Evaporative cooler media pad kit

Part #AP568A

The manufacturer no longer makes this part, and there's no substitute part

Distributor A901304C
#6

Down discharge evaporative cooler diagram

Distributor

Part #A901304C

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2-907
#11

Down discharge evaporative cooler diagram

Receptacle

Part #P2-907

The manufacturer no longer makes this part, and there's no substitute part

V-belt P670066A
#11

Motors and associated diagram

V-belt

Part #P670066A

The manufacturer no longer makes this part, and there's no substitute part

Pad Assembly A502001A
#1

Down discharge evaporative cooler diagram

Pad assembly

Part #A502001A

The manufacturer no longer makes this part, and there's no substitute part

Latch Pad A903902A
#3

Down discharge evaporative cooler diagram

Latch pad

Part #A903902A

The manufacturer no longer makes this part, and there's no substitute part
