GE AZW206DBV1 room air conditioner Parts

Here are the diagrams and repair parts for GE AZW206DBV1 room air conditioner, as well as links to manuals and error code tables, if available.

GE AZW206DBV1 room air conditioner

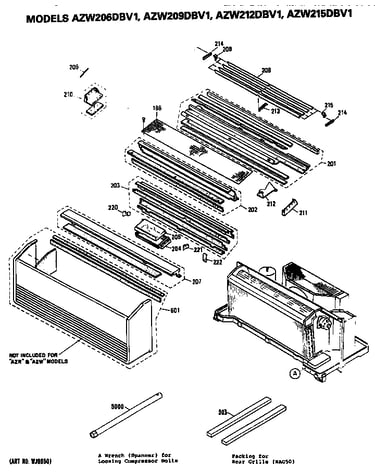

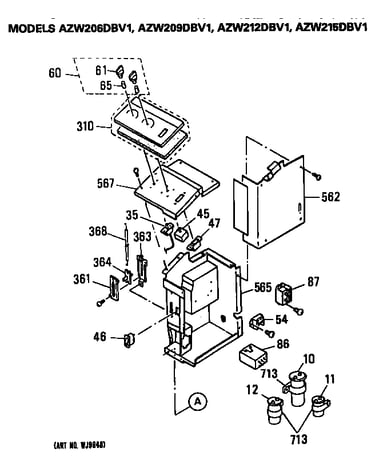

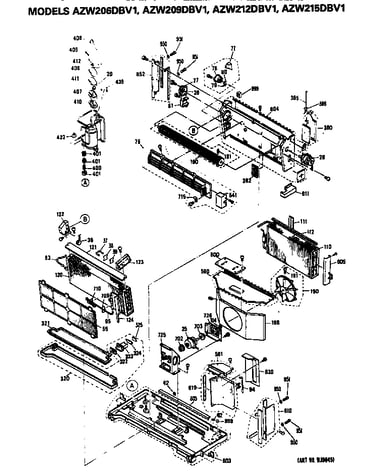

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AZW206DBV1 Room Air Conditioner

  • Horizontal Louver for GE AZW206DBV1 - Part WP71X28

    #208

    All parts diagram

    Horizontal Louver

    Part #WP71X28

    The manufacturer no longer makes this part, and there's no substitute part

  • Evaporator Kit for GE AZW206DBV1 - Part WP87X22

    #120

    All parts diagram

    Evaporator Kit

    Part #WP87X22

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Bracket for GE AZW206DBV1 - Part WP66X24

    #210

    All parts diagram

    Mounting Bracket

    Part #WP66X24

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulation Condenser for GE AZW206DBV1 - Part WP43X24

    #112

    All parts diagram

    Insulation Condenser

    Part #WP43X24

    The manufacturer no longer makes this part, and there's no substitute part

  • Basepan Assembly for GE AZW206DBV1 - Part WP89X07

    #603

    All parts diagram

    Basepan Assembly

    Part #WP89X07

    The manufacturer no longer makes this part, and there's no substitute part

  • Comp Ovrload for GE AZW206DBV1 - Part WP23X50

    #20

    All parts diagram

    Comp Ovrload

    Part #WP23X50

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser Kit for GE AZW206DBV1 - Part WP88X09

    #110

    All parts diagram

    Condenser Kit

    Part #WP88X09

    The manufacturer no longer makes this part, and there's no substitute part

  • Heater for GE AZW206DBV1 - Part WP70X75

    #75

    All parts diagram

    Heater

    Part #WP70X75

    The manufacturer no longer makes this part, and there's no substitute part

  • 624-012-9198 for GE AZW206DBV1 - Part WJ43X412

    #410

    All parts diagram

    624-012-9198

    Part #WJ43X412

    The manufacturer no longer makes this part, and there's no substitute part

  • 6260400680 for GE AZW206DBV1 - Part WJ79X430

    #407

    All parts diagram

    6260400680

    Part #WJ79X430

    The manufacturer no longer makes this part, and there's no substitute part
