Whirlpool AC2104XT1 air conditioner Parts

Name: Whirlpool AC2104XT1 Parts | Diagrams | Sears PartsDirect
Brand: Whirlpool
SKU: AC2104XT1
Availability: InStock

Here are the diagrams and repair parts for Whirlpool AC2104XT1 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

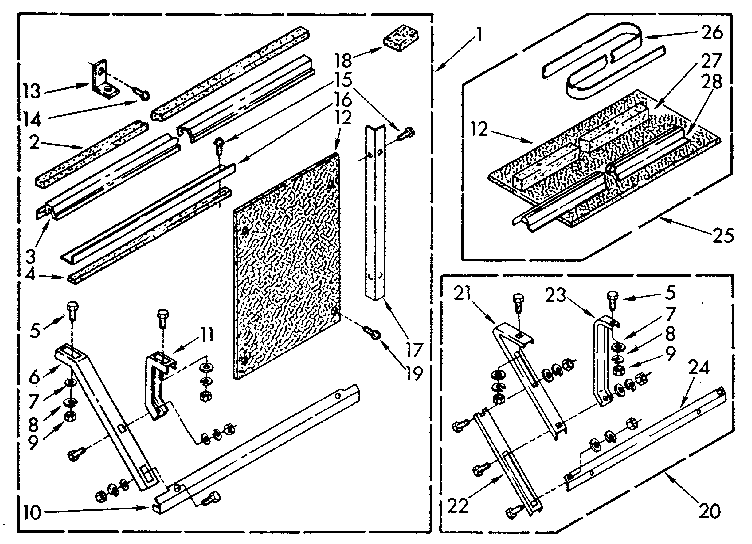

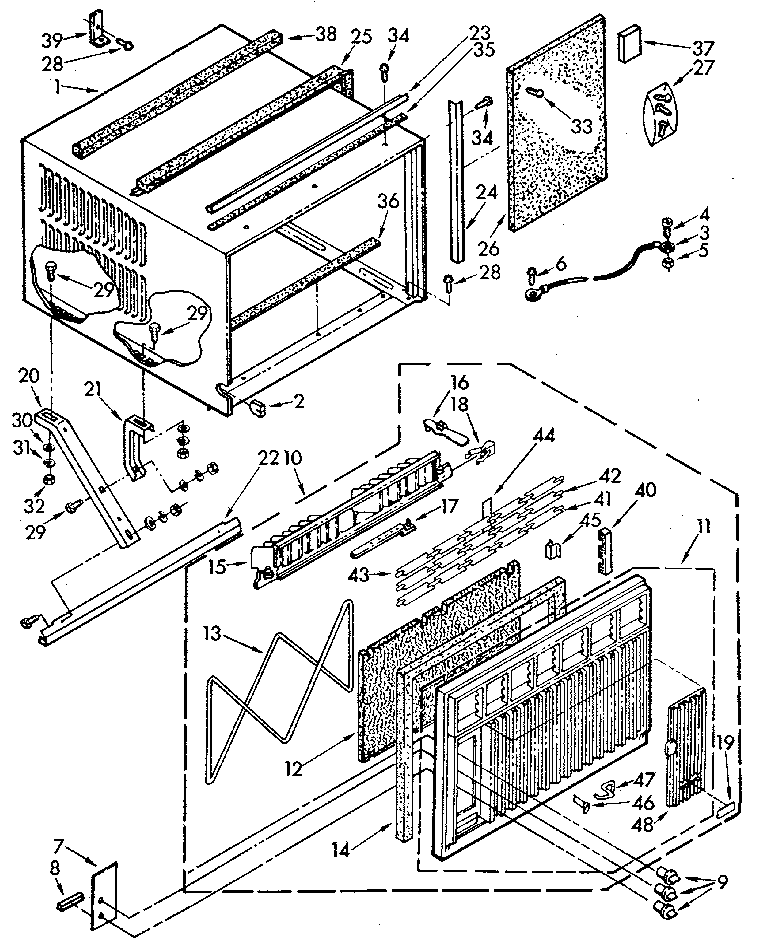

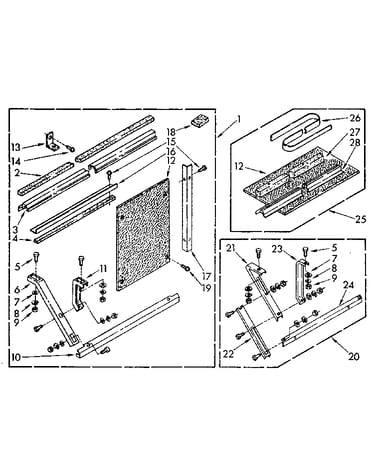

Browse Parts for AC2104XT1 Air Conditioner

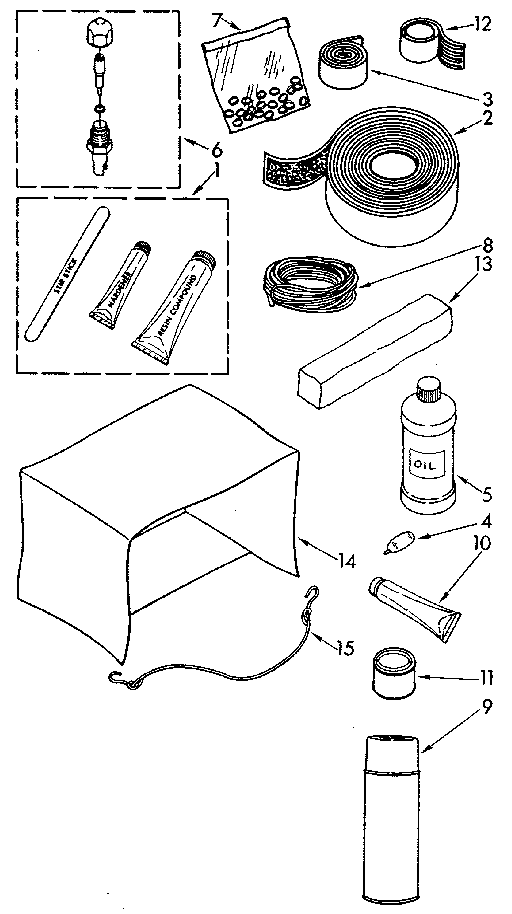

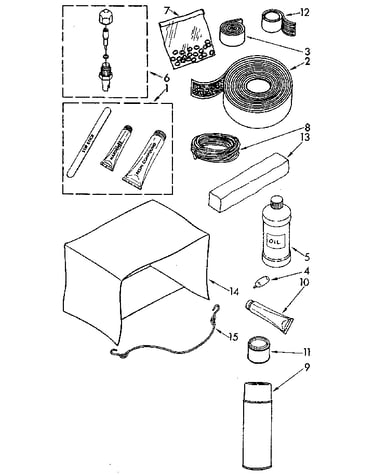

Optional parts (not included) diagram
Cement
Part #279368
Replaced by #WP279368
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
In Stock
$52.18
10% OFF Phone Price : $58.18
Qty

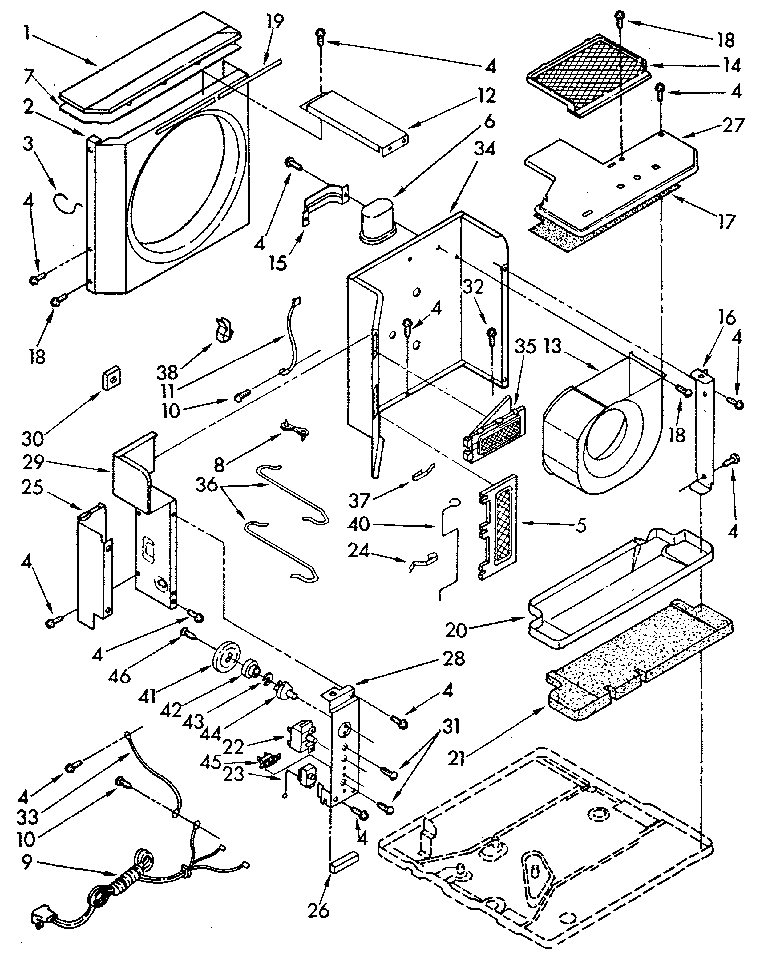

Air flow and control diagram
Capacitor
Part #952090
Replaced by #TRCFD305
Manufacturer substitution
This part replaces 952090. Substitute parts can look different from the original.
In Stock
$38.99
Qty
Screw
Part #487910
Replaced by #WP488729
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.93
17% OFF Phone Price : $5.93
Qty

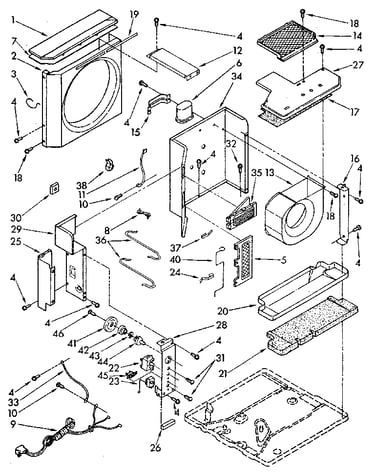

Air flow and control diagram
Screw
Part #488861
Replaced by #WP308685
Manufacturer substitution
This part replaces 488861. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.09
16% OFF Phone Price : $6.09
Qty
Screw
Part #488720
Replaced by #WP308685
Manufacturer substitution
This part replaces 488720. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.09
16% OFF Phone Price : $6.09
Qty
Screw, 8 X 1
Part #488480
Replaced by #WP489069
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty

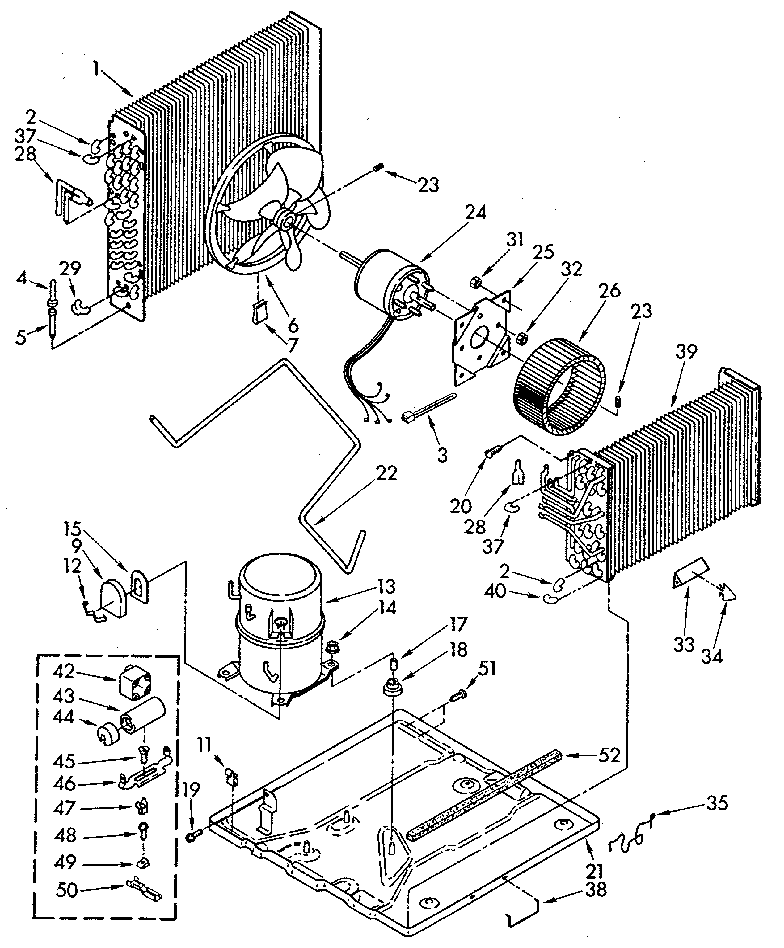

Unit diagram
Cable Tie
Part #857547
Replaced by #WPW10339879
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty

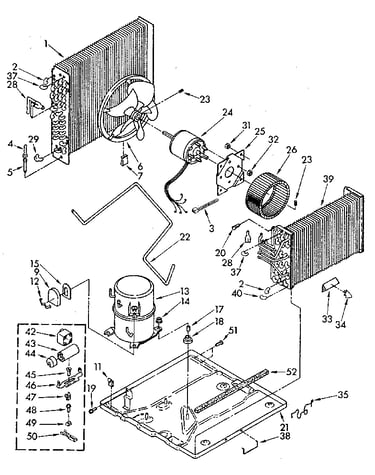

Unit diagram
Nut
Part #488130
Replaced by #WP488130
Manufacturer substitution
This part replaces 488130. Substitute parts can look different from the original.
In Stock
$28.95
Qty
Optional parts (not included) diagram
Valve Kit
Part #978027
In Stock
$103.21
Qty
Optional parts (not included) diagram
Valve Kit
Part #978030
In Stock
$105.69
Qty
