Model # 30421200150 Official LXI cassette recorder

Here are the diagrams and repair parts for Official LXI 30421200150 cassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Screw 92120000
#63

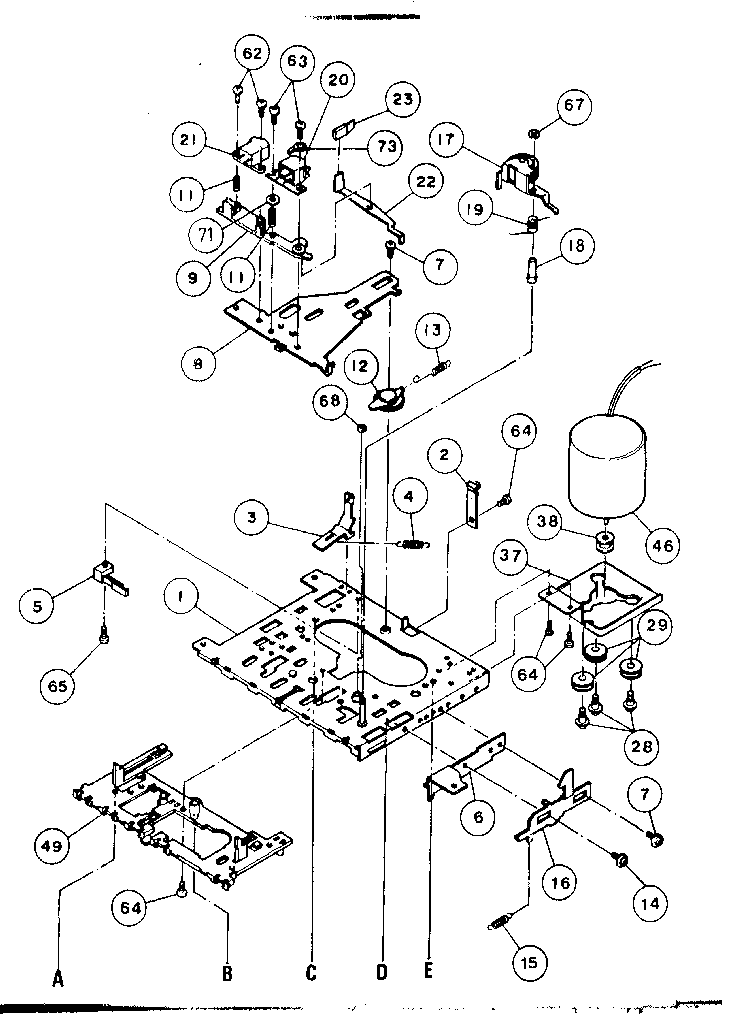

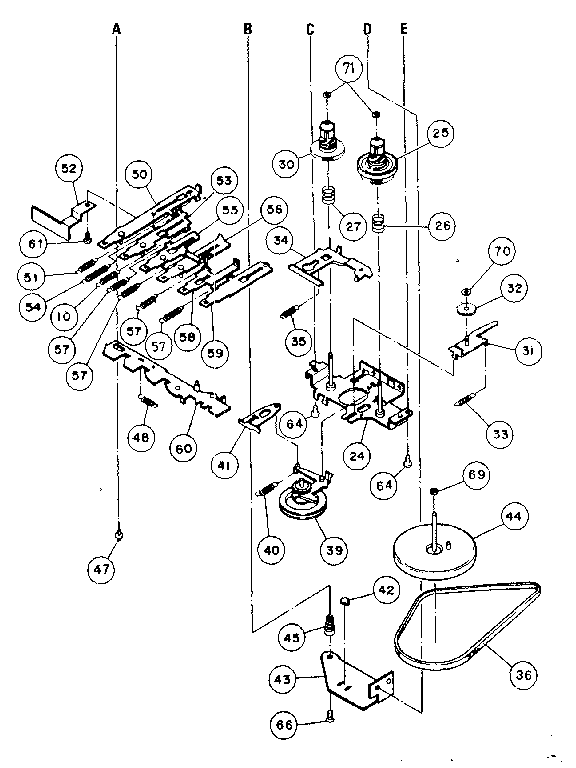

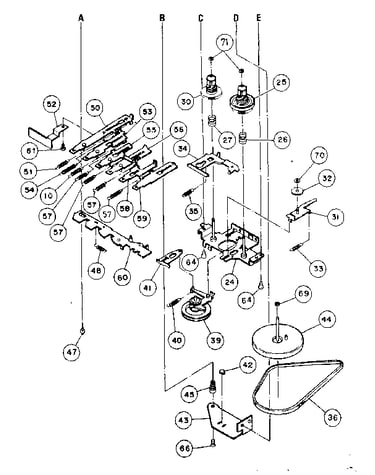

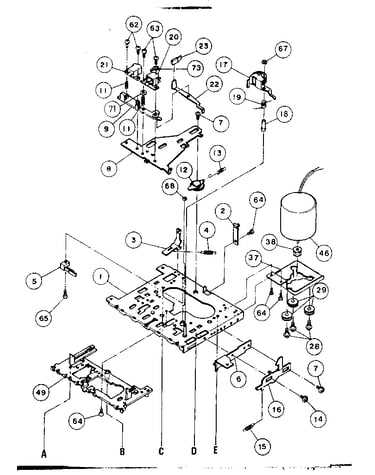

Cassette mechanism diagram

Screw

Part #92120000

The manufacturer no longer makes this part, and there's no substitute part

Screw 91910000
Screw

Part #91910000

The manufacturer no longer makes this part, and there's no substitute part

Screw DLM1310
Screw

Part #DLM1310

The manufacturer no longer makes this part, and there's no substitute part

Belt 21V0040
#36

Cassette mechanism diagram

Belt

Part #21V0040

The manufacturer no longer makes this part, and there's no substitute part

Spring 15100203
#4

Cassette mechanism diagram

Spring

Part #15100203

The manufacturer no longer makes this part, and there's no substitute part

Screw 90060000
#62

Cassette mechanism diagram

Screw

Part #90060000

The manufacturer no longer makes this part, and there's no substitute part

Plate 17000313
#22

Cassette mechanism diagram

Plate

Part #17000313

The manufacturer no longer makes this part, and there's no substitute part

Screw DLM1430
#29

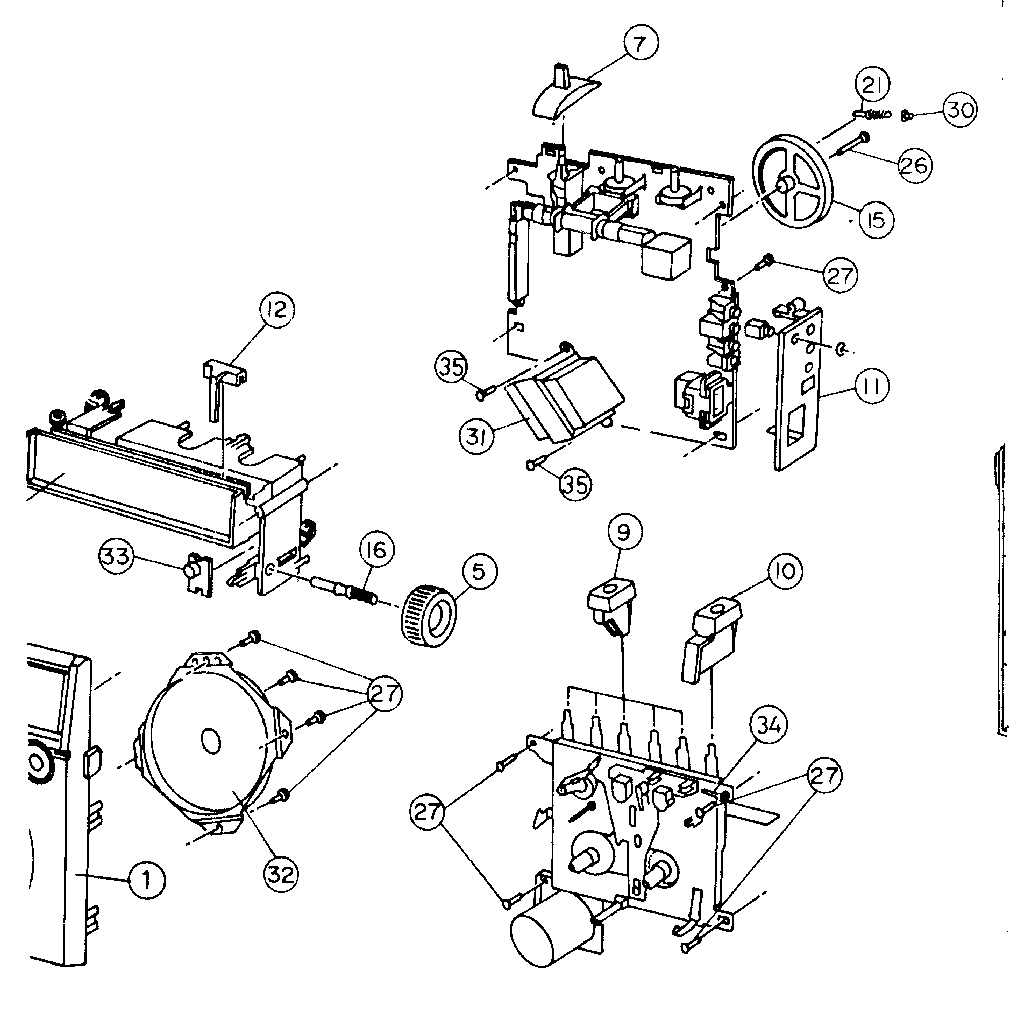

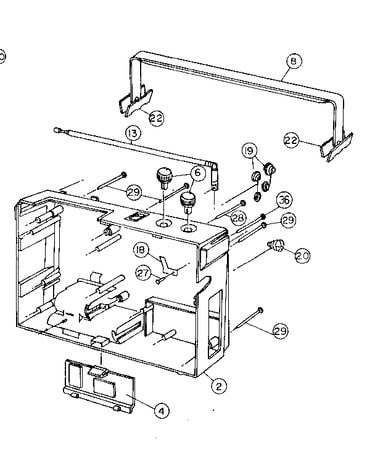

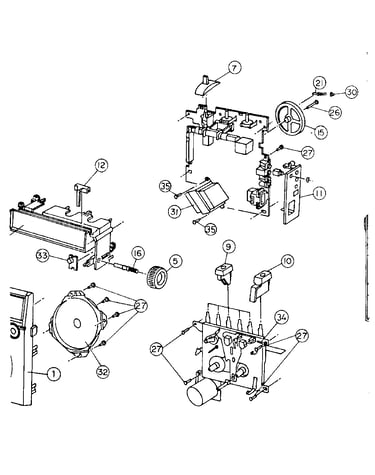

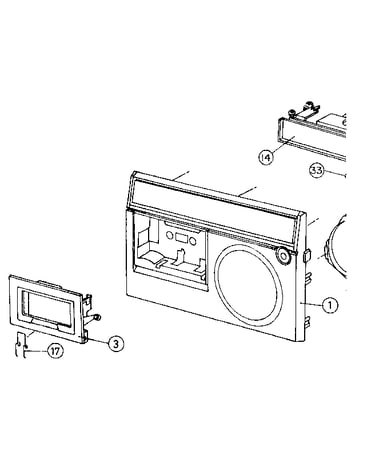

Cabinet diagram

Screw

Part #DLM1430

The manufacturer no longer makes this part, and there's no substitute part

Cord 1750364

#NI

All parts diagram

Cord

Part #1750364

The manufacturer no longer makes this part, and there's no substitute part

Washer 94190000
Washer

Part #94190000

The manufacturer no longer makes this part, and there's no substitute part
