Model # FAA065N7A3 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAA065N7A3 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

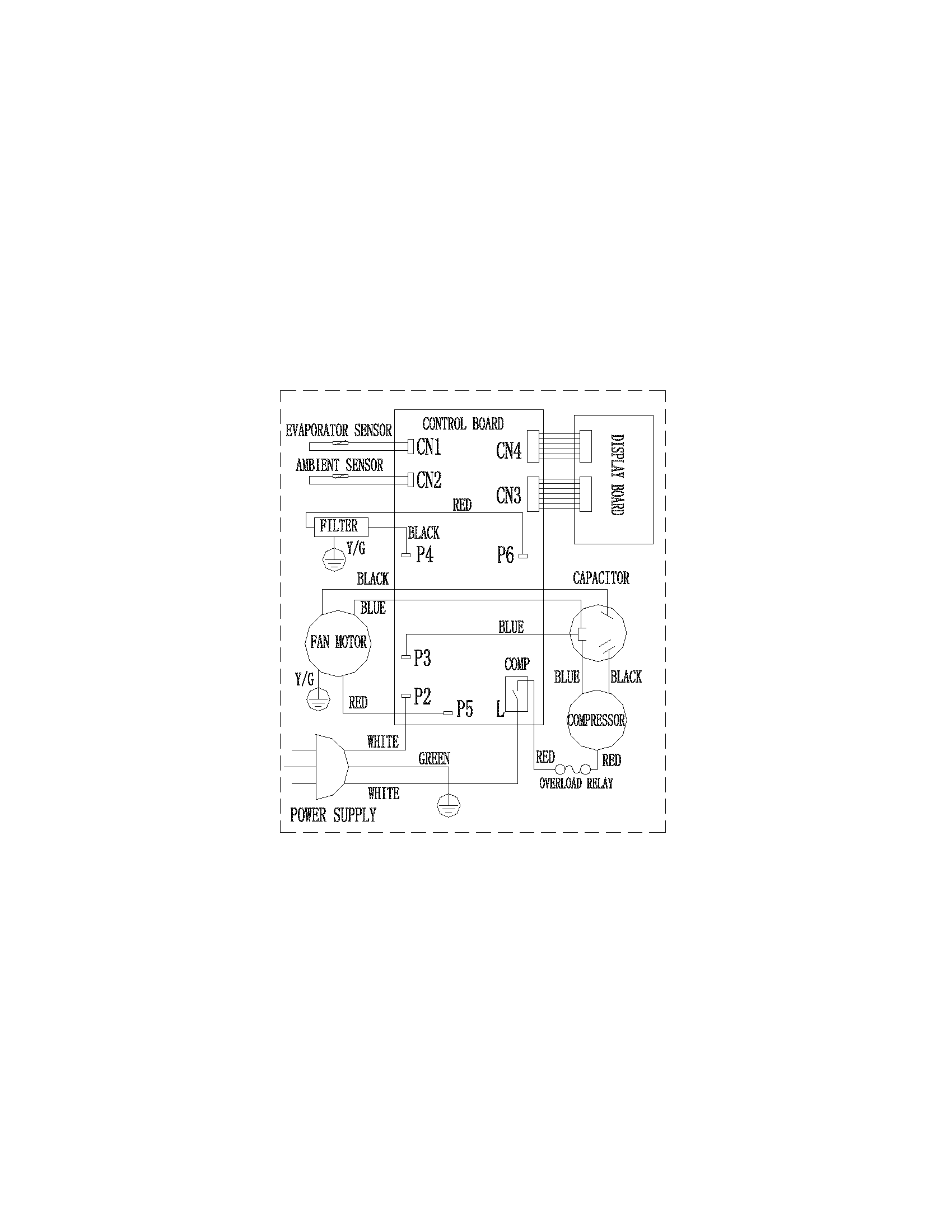

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Wrapper 5304437072
#1

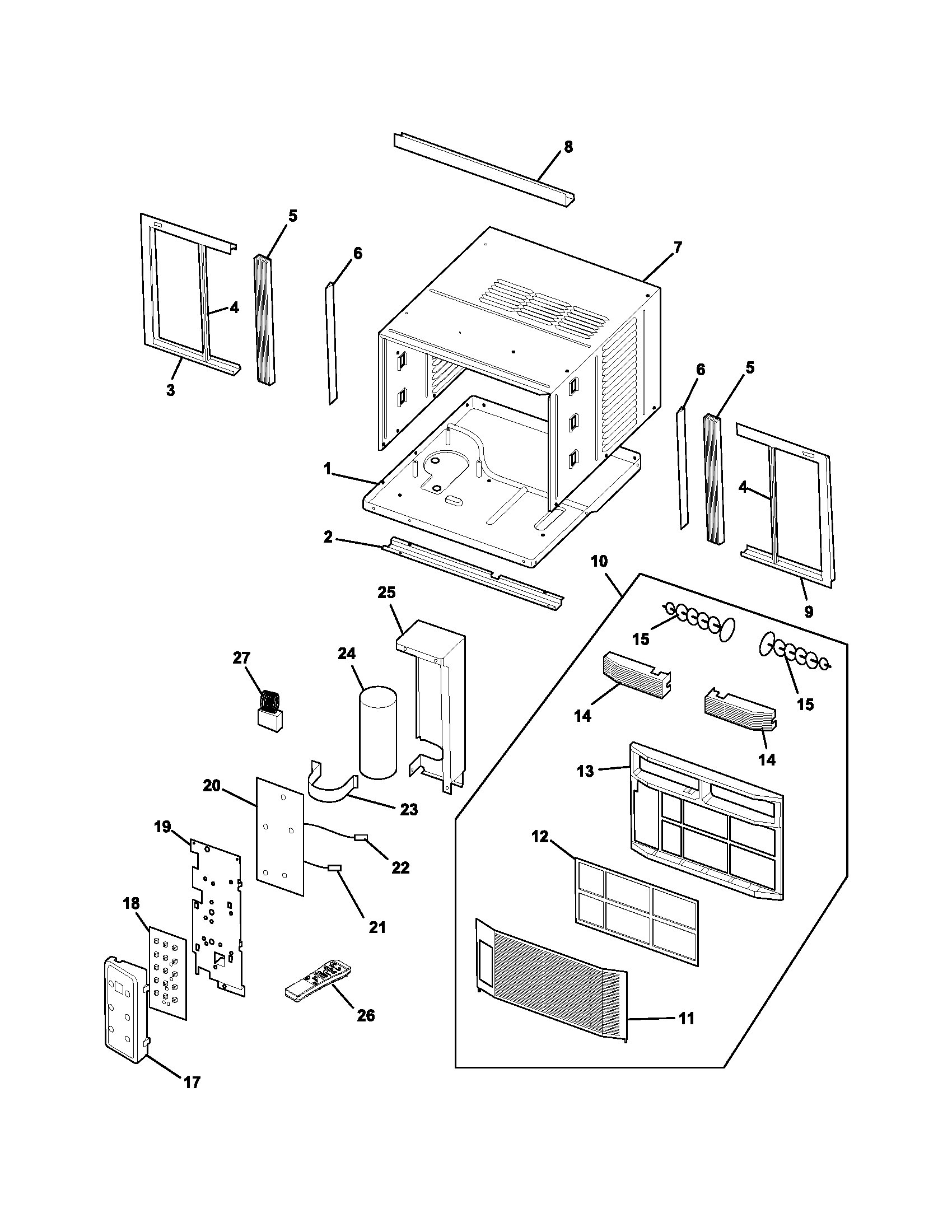

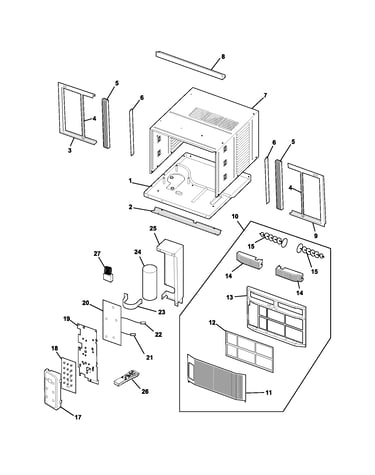

Cabinet/front/controls diagram

Wrapper

Part #5304437072

In Stock
Shell 5304437103
#6

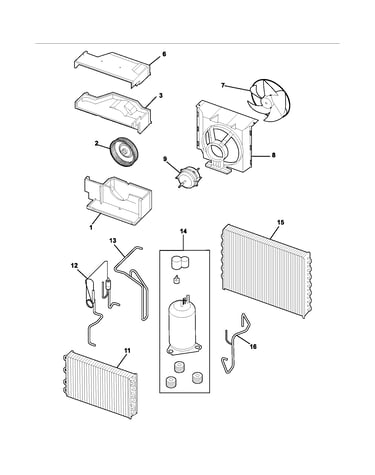

Cooling & air flow systems diagram

Shell

Part #5304437103

In Stock
Shell 5304437104
#3

Cooling & air flow systems diagram

Shell

Part #5304437104

This item is not returnable
In Stock
Compressor 5304437079
#14

Cooling & air flow systems diagram

Compressor

Part #5304437079

In Stock
Shell 5304437105
#1

Cooling & air flow systems diagram

Shell

Part #5304437105

In Stock
Evaporator 5304437091
#11

Cooling & air flow systems diagram

Evaporator

Part #5304437091

In Stock
Air Conditioner Blower Wheel 5304437891
#2

Cooling & air flow systems diagram

Air conditioner blower wheel

Part #5304437891

In Stock
Tube 5304437097
#12

Cooling & air flow systems diagram

Tube

Part #5304437097

In Stock
Tube 5304437099
#13

Cooling & air flow systems diagram

Tube

Part #5304437099

In Stock
Divider 5304437056
#8

Cooling & air flow systems diagram

Divider

Part #5304437056

In Stock
