Kenmore
Furnace

Model # 867763361 Official Kenmore gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867763361 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

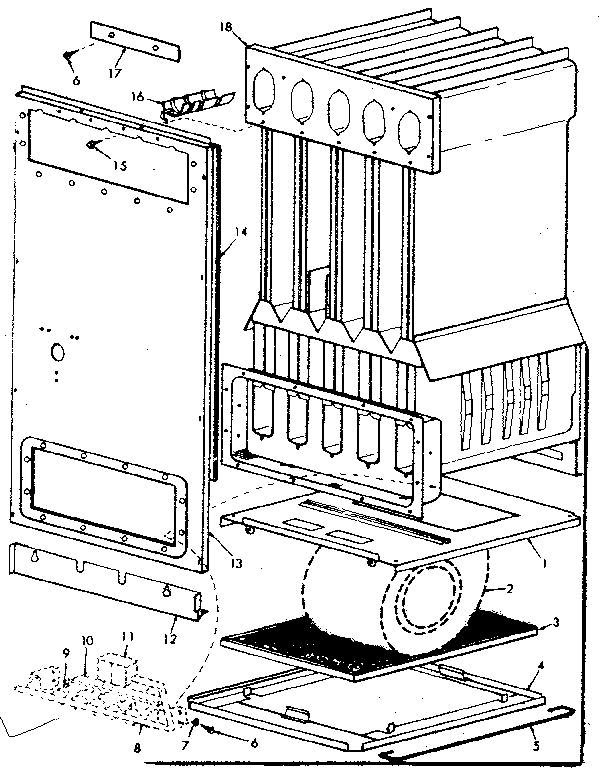

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Catch 602090
#5

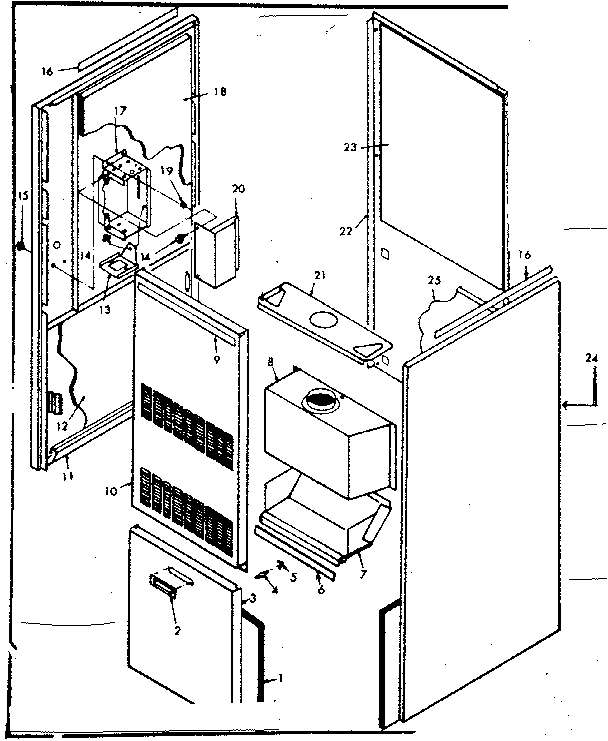

Cabinet diagram

Catch

Part #602090

Replaced by #279570

?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86 |
70% OFF MSRP : $13.00
In Stock
Strike 602089
#4

Cabinet diagram

Strike

Part #602089

Replaced by #279570

?
Manufacturer substitution
This part replaces 602089. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86 |
70% OFF MSRP : $13.00
In Stock
Furnace Blower Fan Wheel 601210
#12A

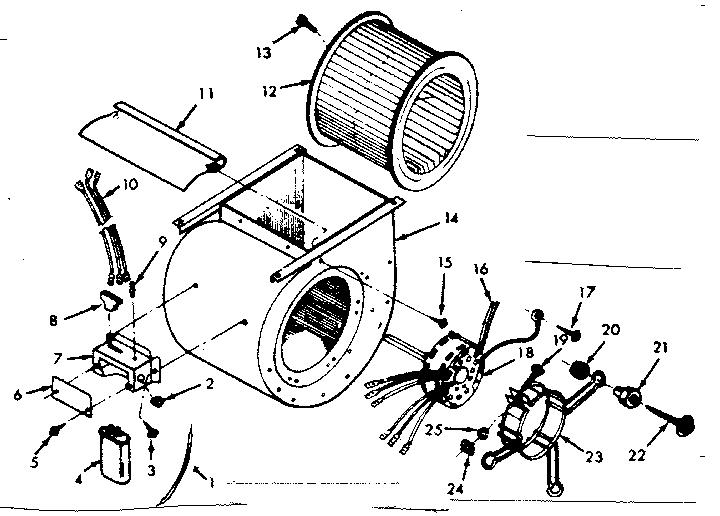

Blower diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Capacitor 87964
#4A

Blower diagram

Capacitor

Part #87964

Replaced by #12910

?
Manufacturer substitution
This part replaces 87964. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Burner 89592
#36

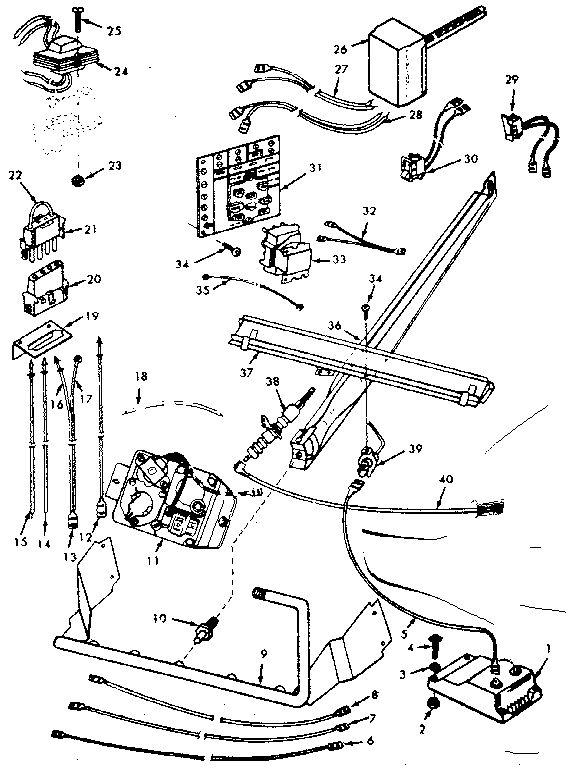

Burner and controls diagram

Burner

Part #89592

Replaced by #610232

?
Manufacturer substitution
This part replaces 89592. Substitute parts can look different from the original.
$61.22
In Stock
Motor 92407
#18A

Blower diagram

Motor

Part #92407

$830.87
In Stock
Furnace Blower Fan Wheel 601211
#12B

Blower diagram

Furnace blower fan wheel

Part #601211

$267.89
In Stock
Operator 604636
#5

Damper diagram

Operator

Part #604636

Replaced by #604967

?
Manufacturer substitution
This part replaces 604636. Substitute parts can look different from the original.
$181.39 |
5% OFF Phone Price : $191.39
In Stock
Flame Sensor 612921

#NI

All parts diagram

Flame sensor

Part #612921

The manufacturer no longer makes this part, and there's no substitute part

Fan Control 608838
#26

Burner and controls diagram

Fan control

Part #608838

The manufacturer no longer makes this part, and there's no substitute part
