Craftsman
Drill/Driver

Model #315114420 Craftsman drill/driver

Here are the diagrams and repair parts for Craftsman 315114420 drill/driver, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 32 parts

    Clutch Cap

    #8

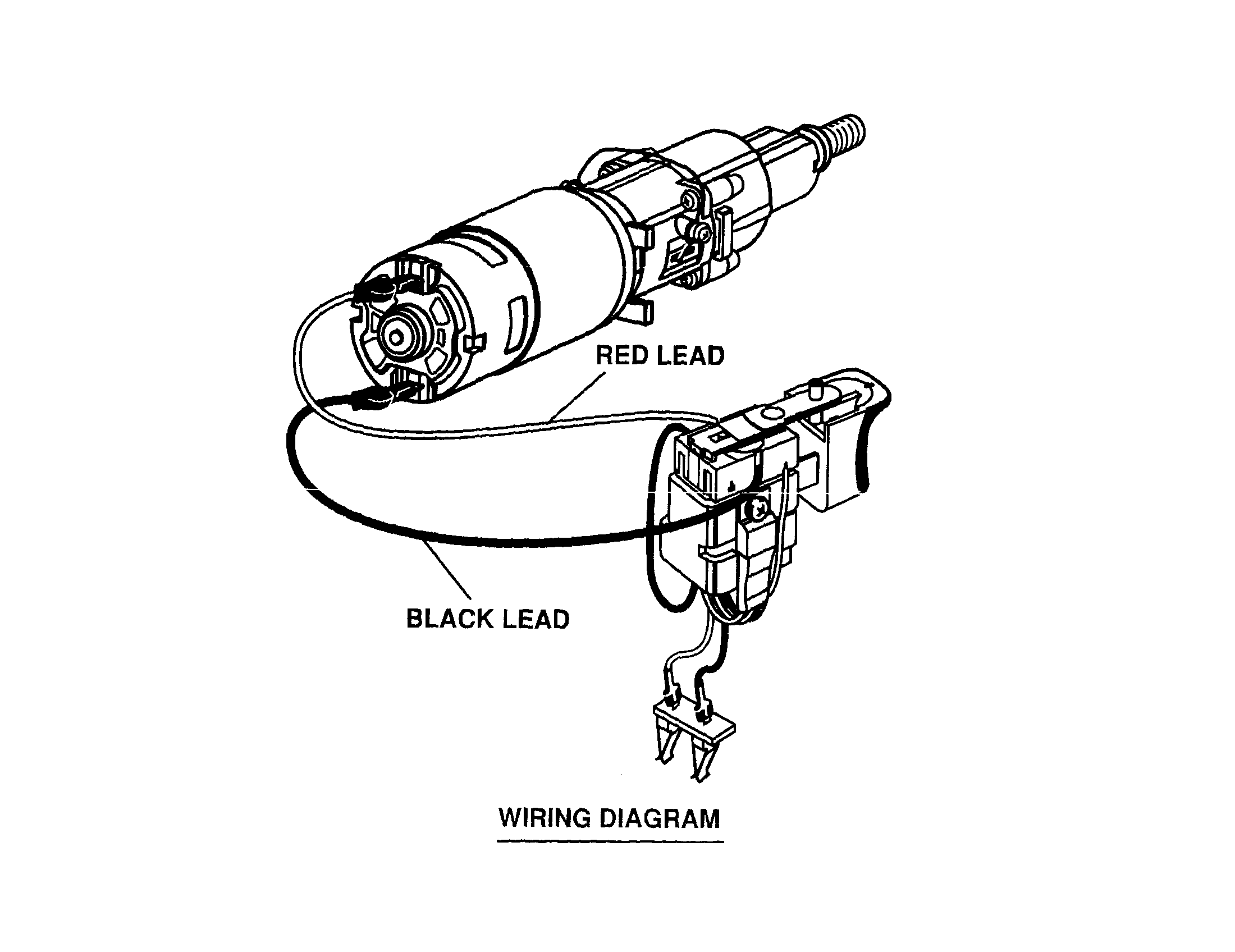

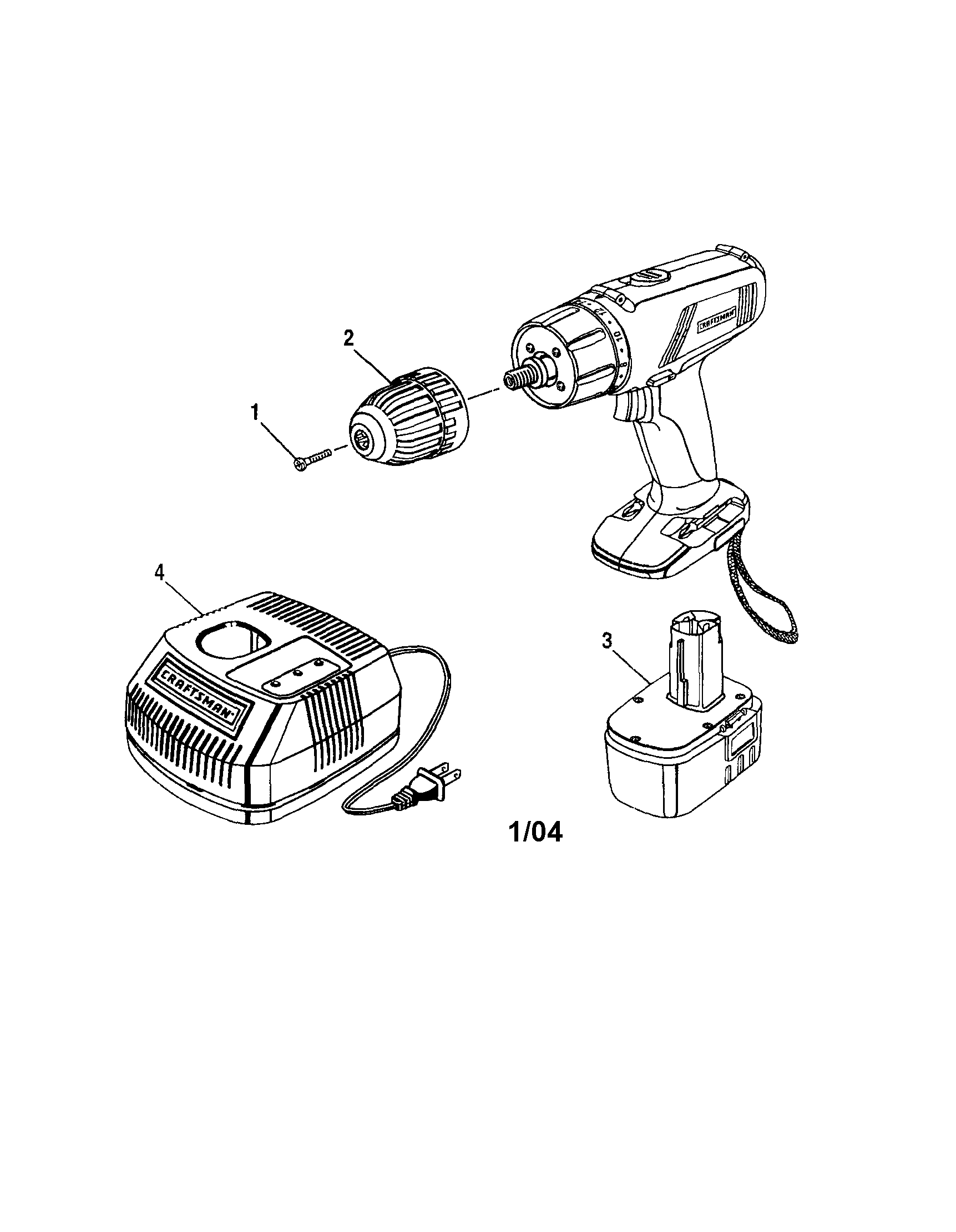

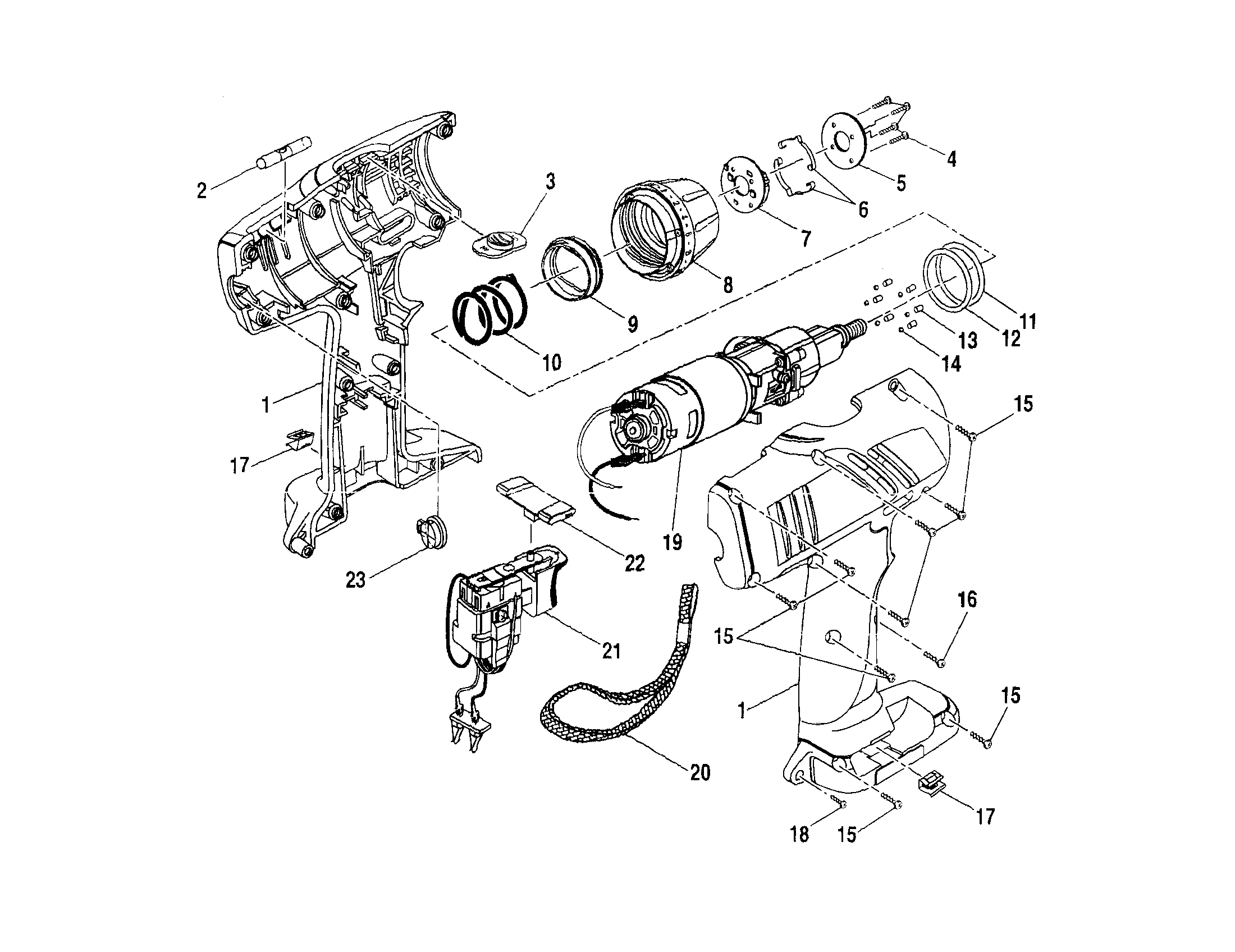

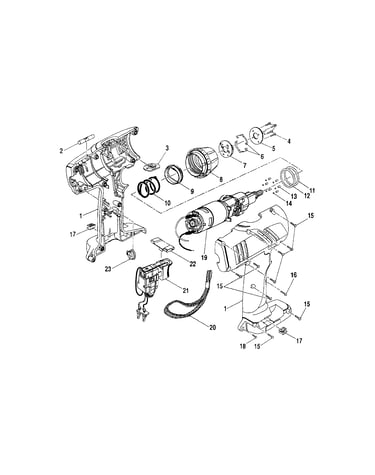

    Housing/motor Diagram

    Clutch cap

    Part #984690-001
    This item is not returnable
    $5.12

    In Stock

    Ring

    #6

    Housing/motor Diagram

    Ring

    Part #6399201
    ?
    Manufacturer substitution
    This part replaces 630992001. Substitute parts can look different from the original.
    This part replaces 630992001
    This item is not returnable
    $2.31

    In Stock

    Button

    #22

    Housing/motor Diagram

    Button

    Part #3734006
    ?
    Manufacturer substitution
    This part replaces 370340006. Substitute parts can look different from the original.
    This part replaces 370340006
    This item is not returnable
    $2.55

    In Stock

    Button

    #3

    Housing/motor Diagram

    Button

    Part #370352003

    The manufacturer no longer makes this part, and there's no substitute part

    Drill Screw, M3 x 20

    #4

    Housing/motor Diagram

    Drill screw, m3 x 20

    Part #6620311
    ?
    Manufacturer substitution
    This part replaces 660203011. Substitute parts can look different from the original.
    This part replaces 660203011
    This item is not returnable
    $3.16

    In Stock

    Bit Clip

    #17

    Housing/motor Diagram

    Bit clip

    Part #630206001

    The manufacturer no longer makes this part, and there's no substitute part

    Holder

    #7

    Housing/motor Diagram

    Holder

    Part #540346001

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #16

    Housing/motor Diagram

    Screw

    Part #6627201
    ?
    Manufacturer substitution
    This part replaces 660272001. Substitute parts can look different from the original.
    This part replaces 660272001
    This item is not returnable
    $2.16

    In Stock

    Washer

    #12

    Housing/motor Diagram

    Washer

    Part #680380001

    The manufacturer no longer makes this part, and there's no substitute part

    Mounting Plate

    #5

    Housing/motor Diagram

    Mounting plate

    Part #630598001

    The manufacturer no longer makes this part, and there's no substitute part
