Goldstar
Countertop Microwave

Model # MV-1320B Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1320B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

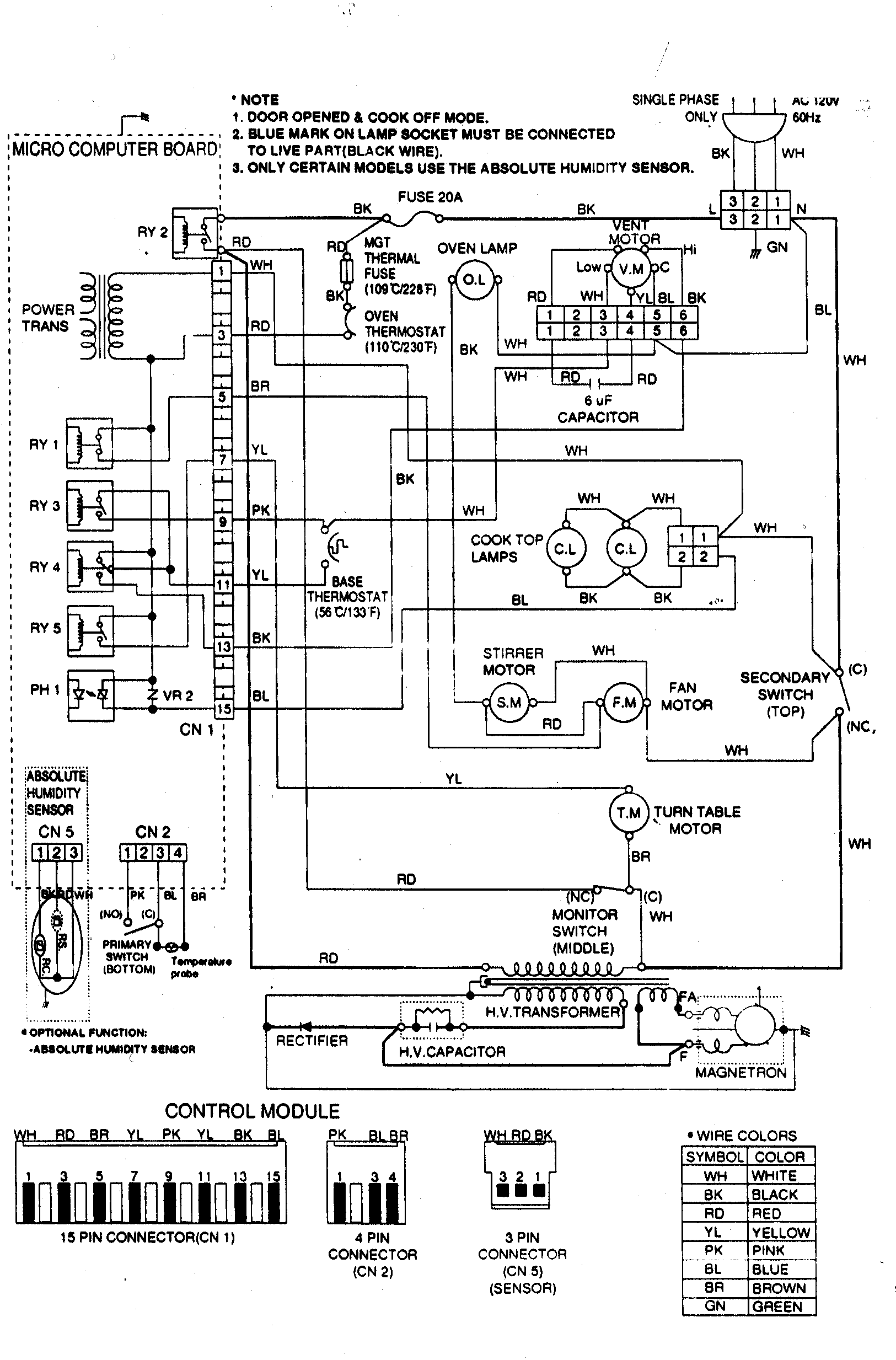

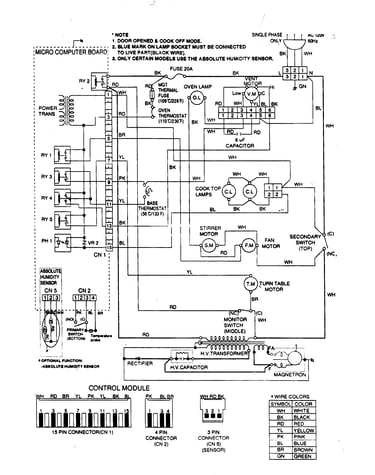

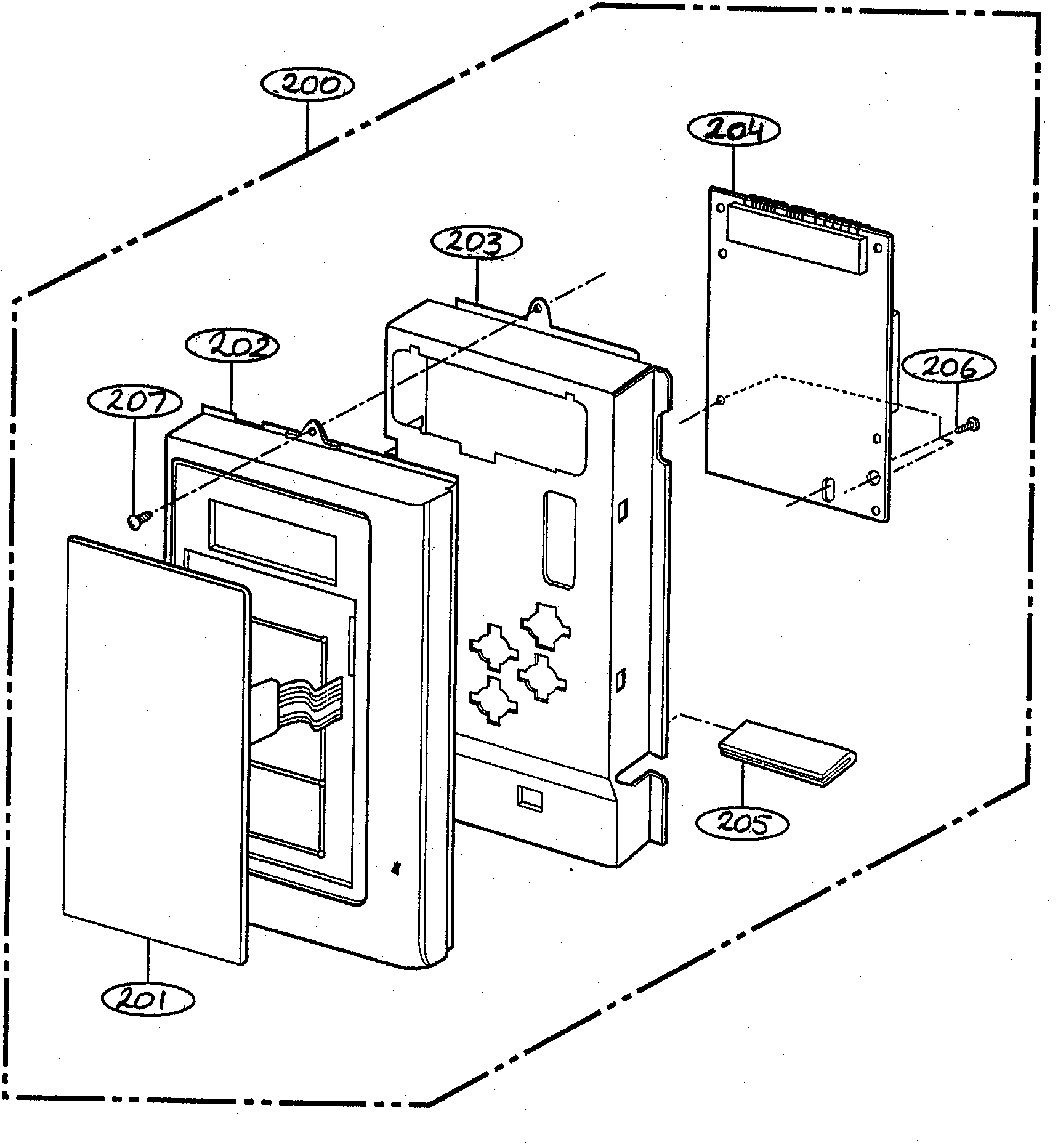

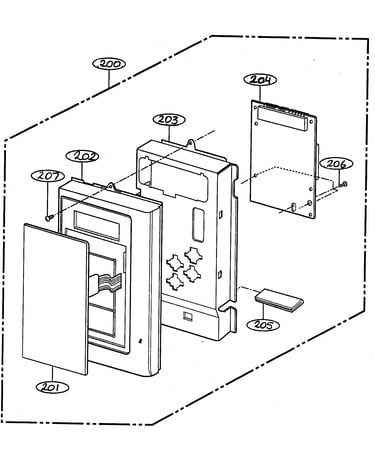

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
High-voltage Diode 6021W3B001A
#512

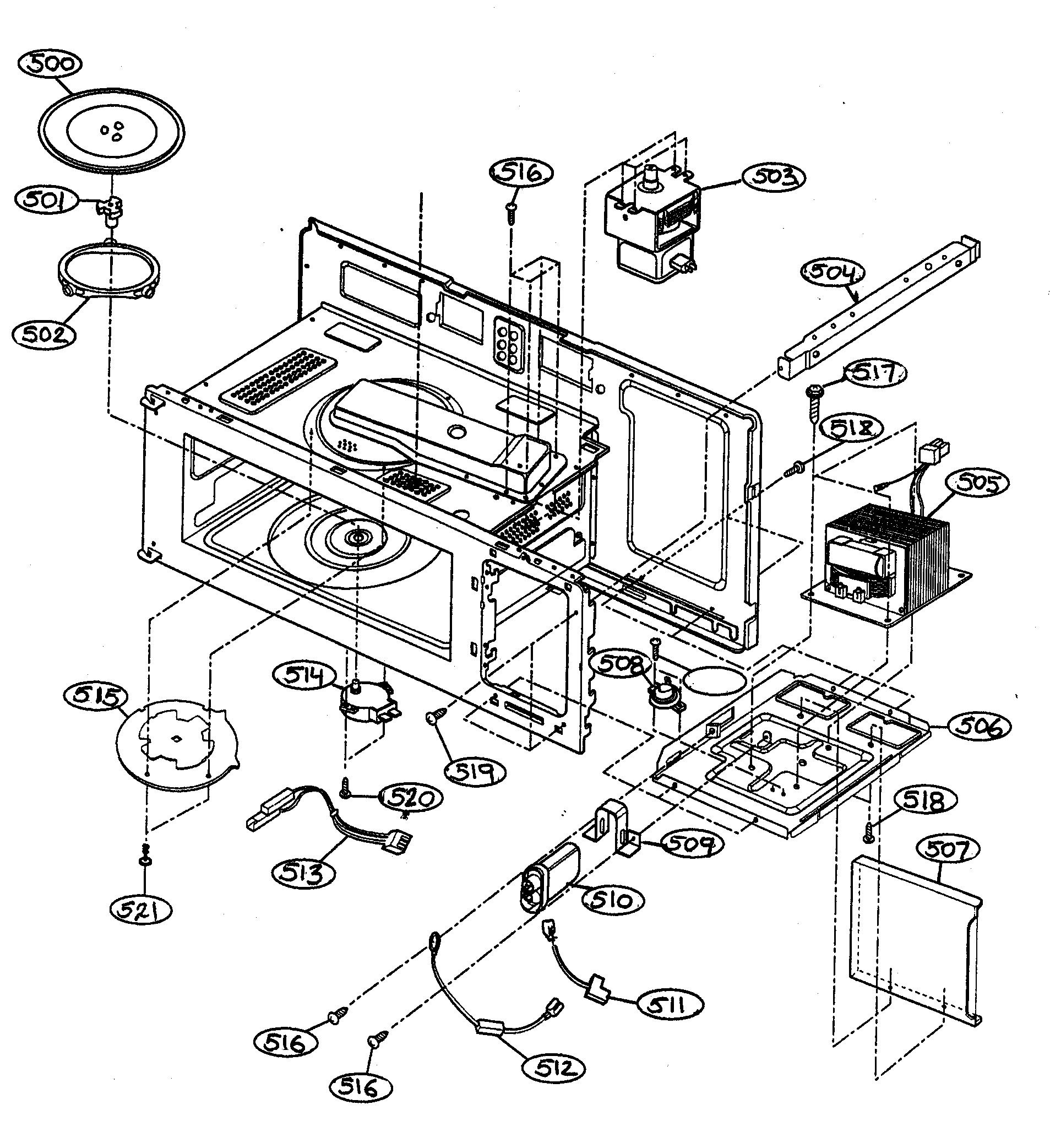

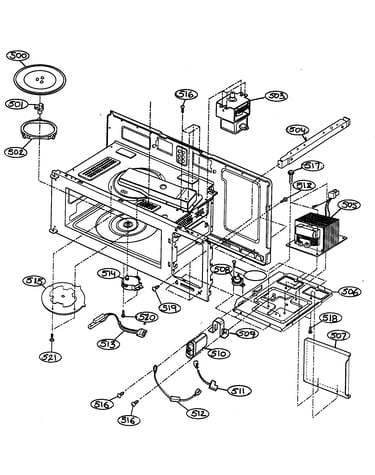

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001A

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Microwave Fuse 3B74133K
#610

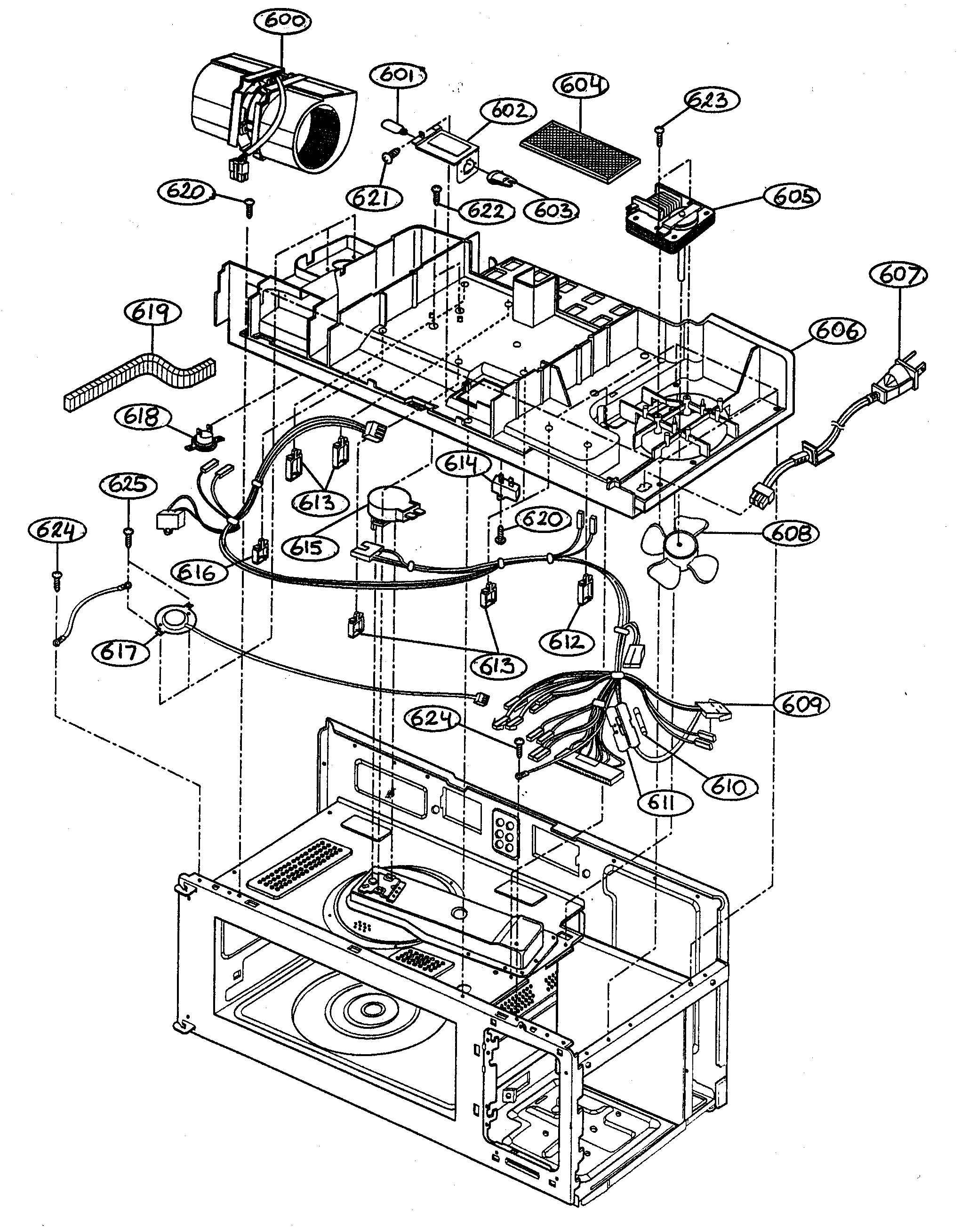

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Oven Switch 503387
#402

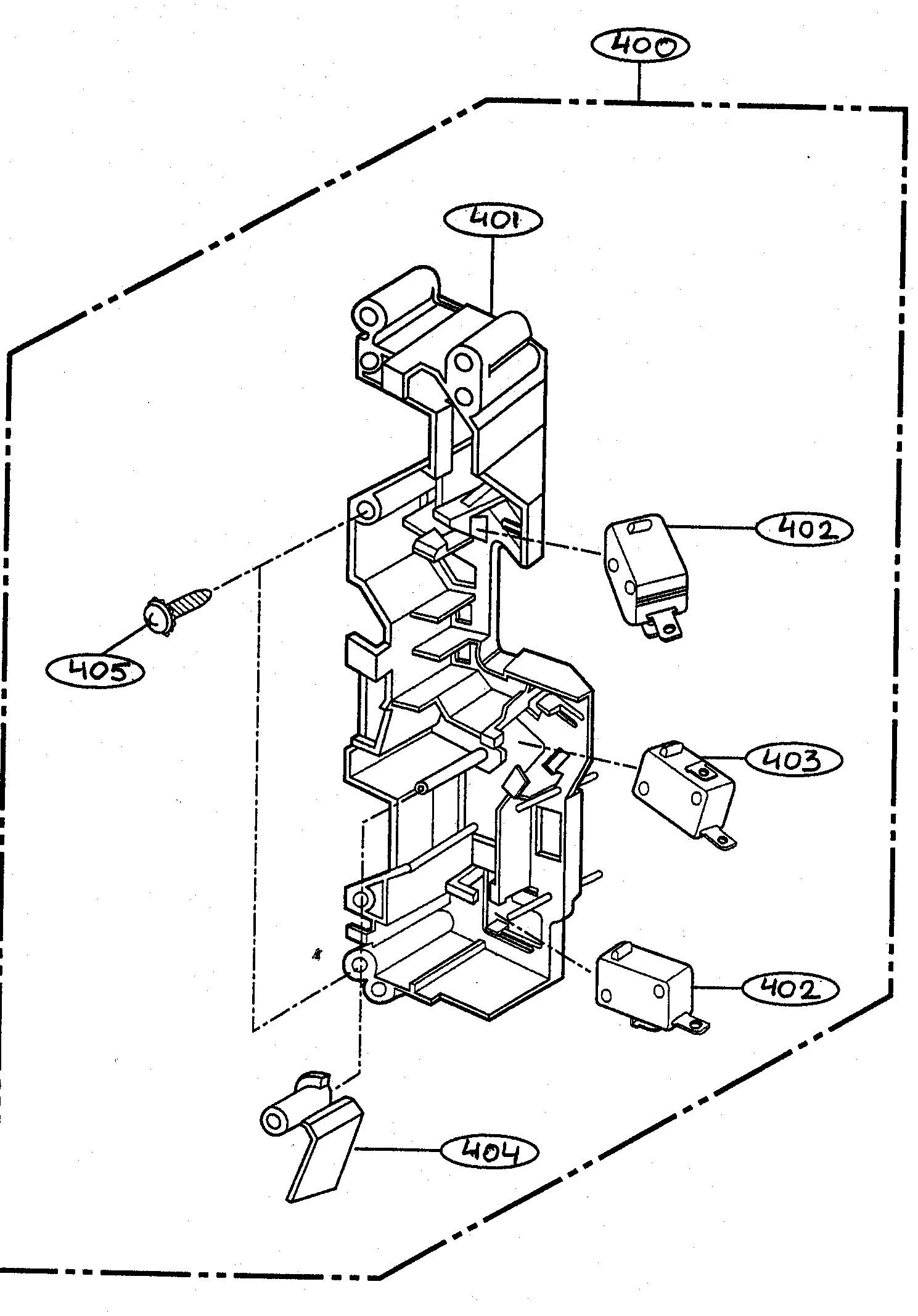

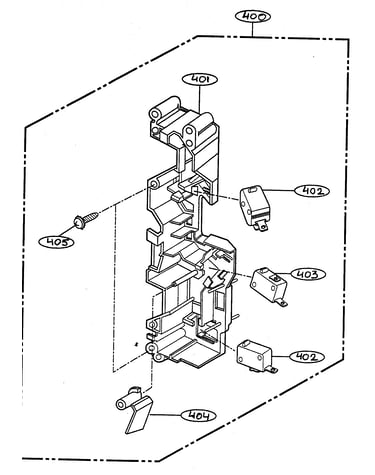

Latch board parts diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.27 |
14% OFF Phone Price : $7.27
In Stock
Damper 3B71432A
#702

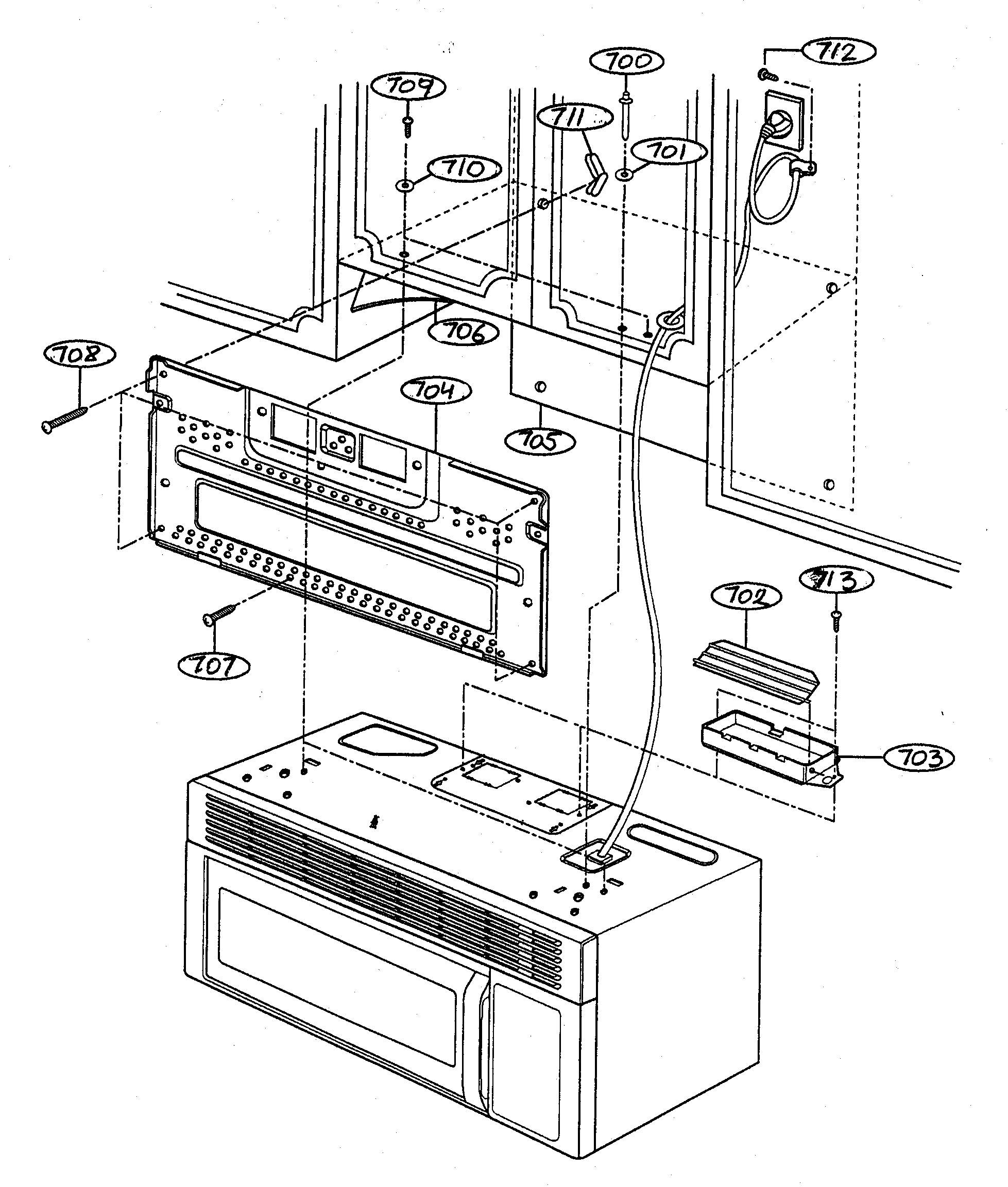

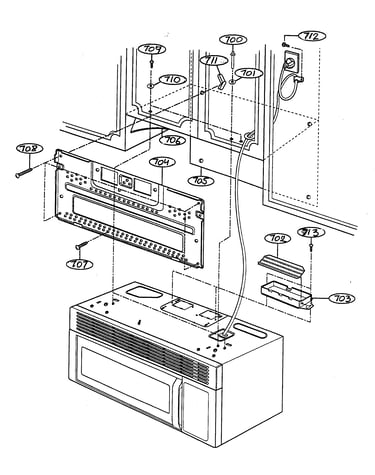

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Shaft 3B72373D
#501

Interior parts 1 diagram

Shaft

Part #3B72373D

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Mounting Bolt (replaces 500797) 4B72059C
#711

Installation parts diagram

Microwave mounting bolt (replaces 500797)

Part #4B72059C

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059C. Substitute parts can look different from the original.
This item is not returnable
$23.37 |
18% OFF Phone Price : $28.37
In Stock
Bolt 4B72059B
#708

Installation parts diagram

Bolt

Part #4B72059B

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 4B72059B. Substitute parts can look different from the original.
This item is not returnable
$23.37 |
18% OFF Phone Price : $28.37
In Stock
Microwave Door Latch Spring 4970WRA001E
#107

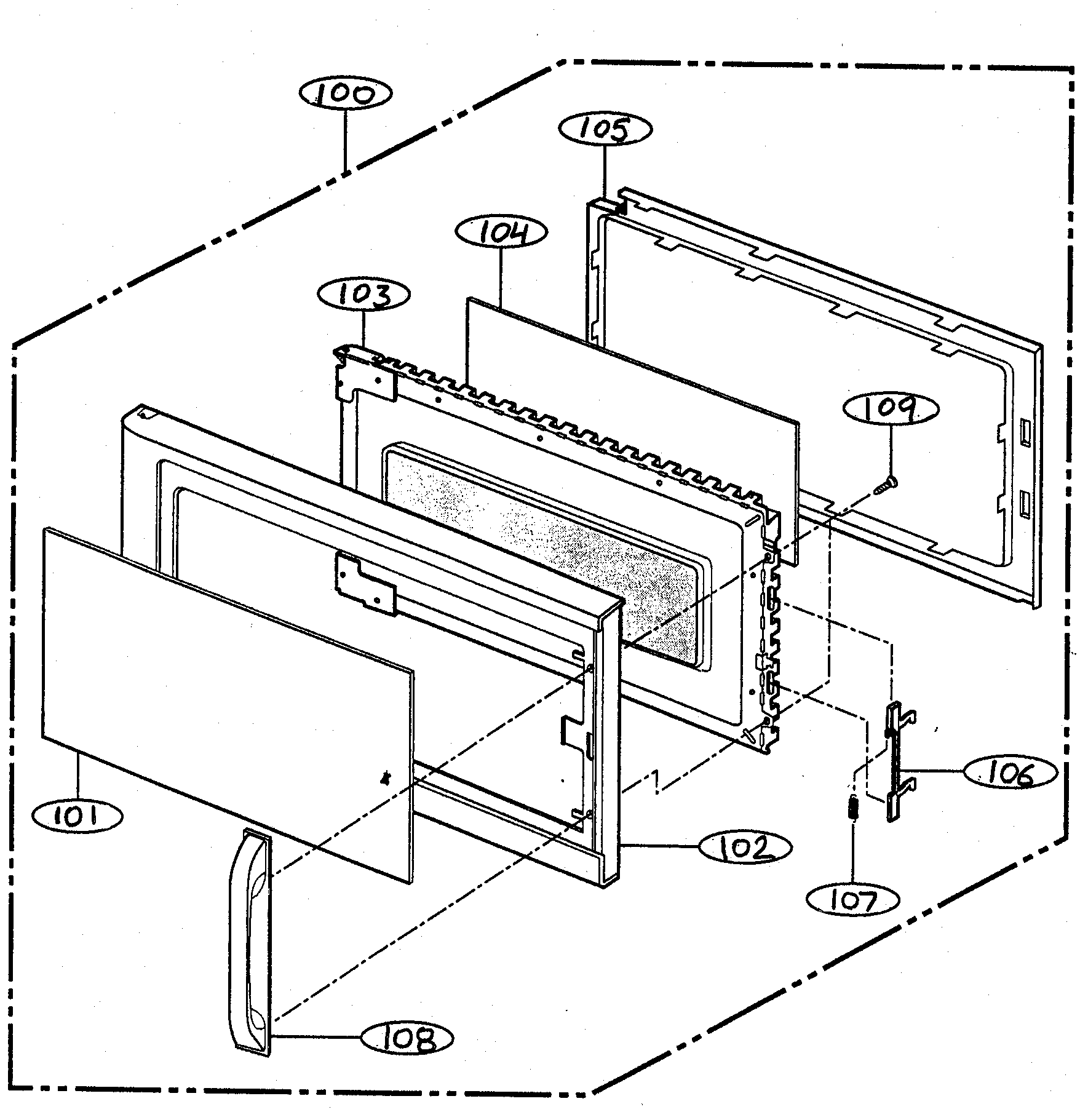

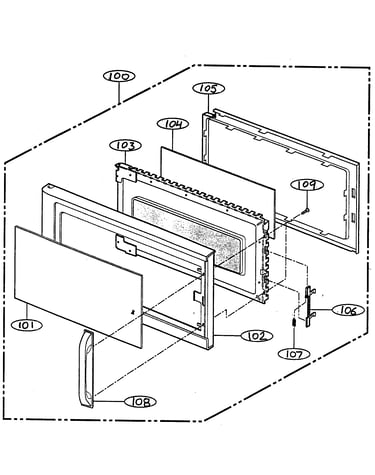

Door parts diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Microwave Screw, M4 X 12-mm 1TTL0402816
#321

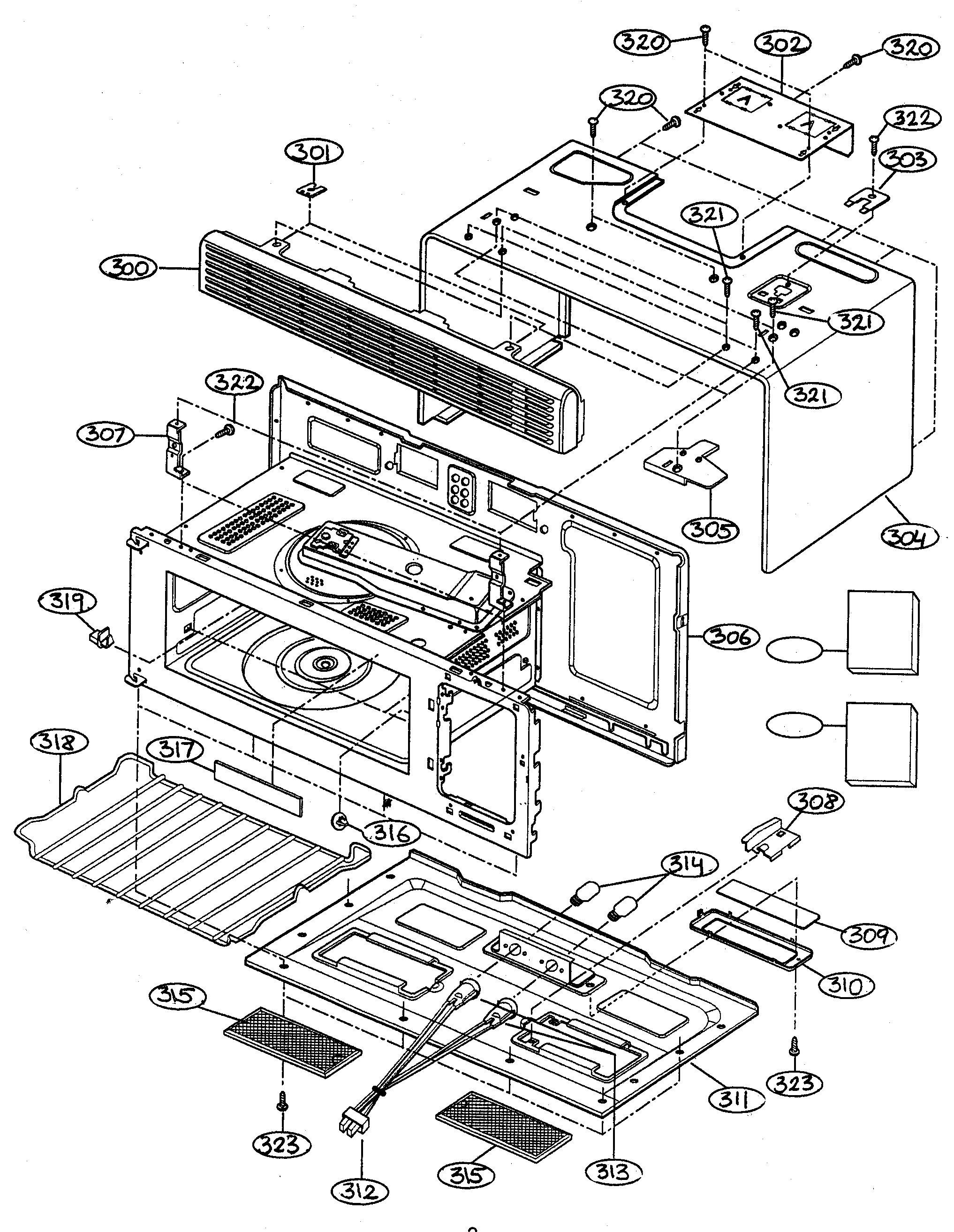

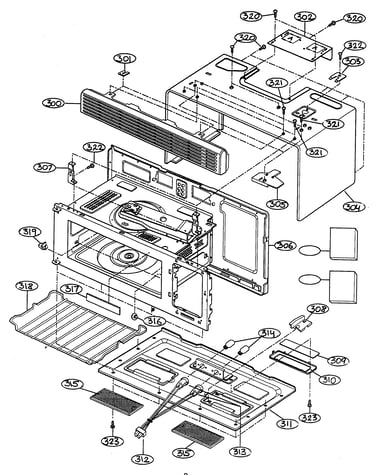

Oven cavity diagram

Microwave screw, m4 x 12-mm

Part #1TTL0402816

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Microwave Wall Mounting Plate 4810W3G062A
#305

Oven cavity diagram

Microwave wall mounting plate

Part #4810W3G062A

Replaced by #4810W1A149A

?
Manufacturer substitution
This part replaces 4810W3G062A. Substitute parts can look different from the original.
This item is not returnable
$7.89
Back Order
