Model # 1197068410 Official Kenmore range

Here are the diagrams and repair parts for Official Kenmore 1197068410 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |

Screw STD611005
#216

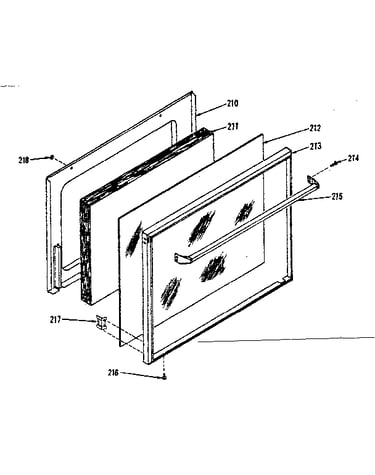

Door diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 10105
#215

Door diagram

Door handle

Part #10105

The manufacturer no longer makes this part, and there's no substitute part

Insulation 10292
#211

Door diagram

Insulation

Part #10292

The manufacturer no longer makes this part, and there's no substitute part

Button Plug 9421
#218

Door diagram

Button plug

Part #9421

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 10381
#213

Door diagram

Door frame

Part #10381

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 10291
#210

Door diagram

Door lining

Part #10291

The manufacturer no longer makes this part, and there's no substitute part

Screw 7811
#214

Door diagram

Screw

Part #7811

The manufacturer no longer makes this part, and there's no substitute part

Parts List 10382

#NI

All parts diagram

Parts list

Part #10382

The manufacturer no longer makes this part, and there's no substitute part

Door Glass 10380
#212

Door diagram

Door glass

Part #10380

The manufacturer no longer makes this part, and there's no substitute part

Clip 9420
#217

Door diagram

Clip

Part #9420

The manufacturer no longer makes this part, and there's no substitute part
