Model # CWL112P4RW5 Official GE microwave drawer

Here are the diagrams and repair parts for Official GE CWL112P4RW5 microwave drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Ass'y Control WB27X42910
#60

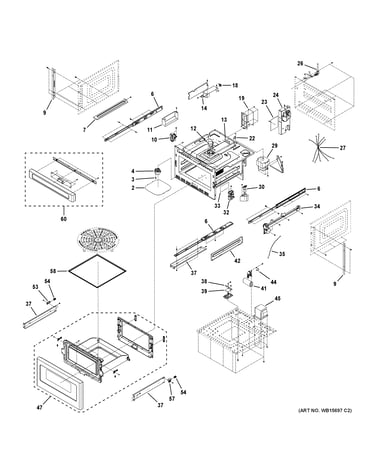

Microwave diagram

Ass'y control

Part #WB27X42910

In Stock
Slider Supporter Plate WB27X42539
#37

Microwave diagram

Slider supporter plate

Part #WB27X42539

In Stock
Ass'y Interlock Left WB27X42512
#10

Microwave diagram

Ass'y interlock left

Part #WB27X42512

In Stock
Power Circuit Board WB27X42527
#19

Microwave diagram

Power circuit board

Part #WB27X42527

In Stock
Fuse WB27X42530
#38

Microwave diagram

Fuse

Part #WB27X42530

In Stock
Fi X Ing Brkt *right WB27X42534
#57

Microwave diagram

Fi x ing brkt *right

Part #WB27X42534

In Stock
Metal Damper *right WB27X42542
#42

Microwave diagram

Metal damper *right

Part #WB27X42542

In Stock
Metal Damper *left WB27X42510
#7

Microwave diagram

Metal damper *left

Part #WB27X42510

In Stock
Power Circuit Board WB27X42538
#23

Microwave diagram

Power circuit board

Part #WB27X42538

In Stock
Fi X Ing Brkt *left WB27X42545
#53

Microwave diagram

Fi x ing brkt *left

Part #WB27X42545

In Stock
