Craftsman
Water Pump

Model # 390252150 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390252150 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Hose Clamp U19-55SS
#5

Sears 1/2 hp shallow well water system (tank only) diagram

Hose clamp

Part #U19-55SS

The manufacturer no longer makes this part, and there's no substitute part

Tube U37-211P
#18

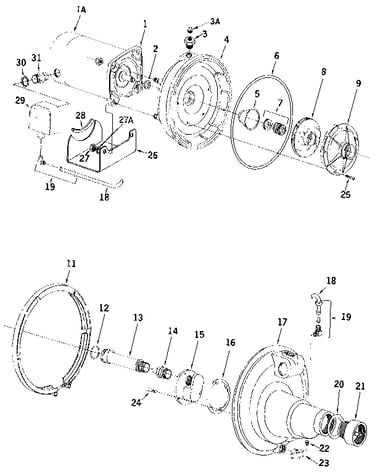

1/2 hp shallow well water system (pump only) diagram

Tube

Part #U37-211P

Replaced by #U37-673P

?
Manufacturer substitution
This part replaces U37-211P. Substitute parts can look different from the original.
This item is not returnable
$19.98
9% OFF Phone Price : $21.98
Back Order
O-ring U9-389
#6

1/2 hp shallow well water system (pump only) diagram

O-ring

Part #U9-389

$38.19
12% OFF Phone Price : $43.19
In Stock
Captive Air Tank Air Valve (replaces U212-159, U212-162) U212-160
#1B

Sears 1/2 hp shallow well water system (tank only) diagram

Captive air tank air valve (replaces u212-159, u212-162)

Part #U212-160

This item is not returnable
$25.18
17% OFF Phone Price : $30.18
Back Order
Complete Fitting U111-86T
#19

1/2 hp shallow well water system (pump only) diagram

Complete fitting

Part #U111-86T

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U111-86T. Substitute parts can look different from the original.
This item is not returnable
$27.69
15% OFF Phone Price : $32.69
In Stock
Pump Nozzle N34P-19
#14

1/2 hp shallow well water system (pump only) diagram

Pump nozzle

Part #N34P-19

In Stock
Insert Elbow U78-796P
#4

Sears 1/2 hp shallow well water system (tank only) diagram

Insert elbow

Part #U78-796P

In Stock
Pump Check Valve (replaces N12-12p) N166-5P
#21

1/2 hp shallow well water system (pump only) diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89
7% OFF Phone Price : $133.89
In Stock
Pump Venturi N32P-66
#13

1/2 hp shallow well water system (pump only) diagram

Pump venturi

Part #N32P-66

In Stock
Connector L43-5C
#31

1/2 hp shallow well water system (pump only) diagram

Connector

Part #L43-5C

In Stock
