York
Central Air Conditioner

Model # E1FD030S06C Official York heat pump

Here are the diagrams and repair parts for Official York E1FD030S06C heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 41 parts  |
Central Air Conditioner Condenser Fan Motor (replaces 024-20779-000, 024-20779-700)
#2

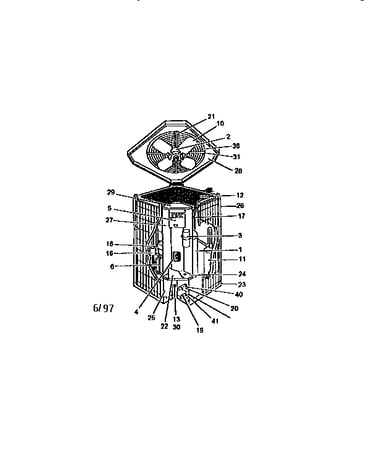

Unit parts diagram

Central air conditioner condenser fan motor (replaces 024-20779-000, 024-20779-700)

Part #024-25100-700

$190.79 |
5% OFF Phone Price : $200.79
In Stock
Grommet
#37

Unit parts diagram

Grommet

Part #028-03468-000

This item is not returnable
$2.16
In Stock
Cap Seal
#30

Unit parts diagram

Cap seal

Part #023-10745-000

This item is not returnable
$2.16
In Stock
Central Air Conditioner Condenser Fan Blade
#10

Unit parts diagram

Central air conditioner condenser fan blade

Part #026-31136-000

$104.19
In Stock
Cont Elec
#4

Unit parts diagram

Cont elec

Part #024-25835-700

$29.42
In Stock
Muffler
#16

Unit parts diagram

Muffler

Part #026-30587-000

$7.99
In Stock
Def Sensor
#7

Unit parts diagram

Def sensor

Part #025-31994-000

Replaced by #02537482000

?
Manufacturer substitution
This part replaces 025-31994-000. Substitute parts can look different from the original.
$30.15
In Stock
Accumulato
#11

Unit parts diagram

Accumulatr

Part #026-31681-002

Replaced by #02631681002

?
Manufacturer substitution
This part replaces 026-31681-002. Substitute parts can look different from the original.
$135.65
In Stock
Capacitor
#3

Unit parts diagram

Capacitor

Part #024-23297-700

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Electronic Control Board
#5

Unit parts diagram

Control de

Part #031-01222-000

Replaced by #031-01954-000

?
Manufacturer substitution
This part replaces 031-01222-000. Substitute parts can look different from the original.
$135.70 |
7% OFF Phone Price : $145.70
In Stock
