Goldstar
Room Air Conditioner

Model # R5204 Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar R5204 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

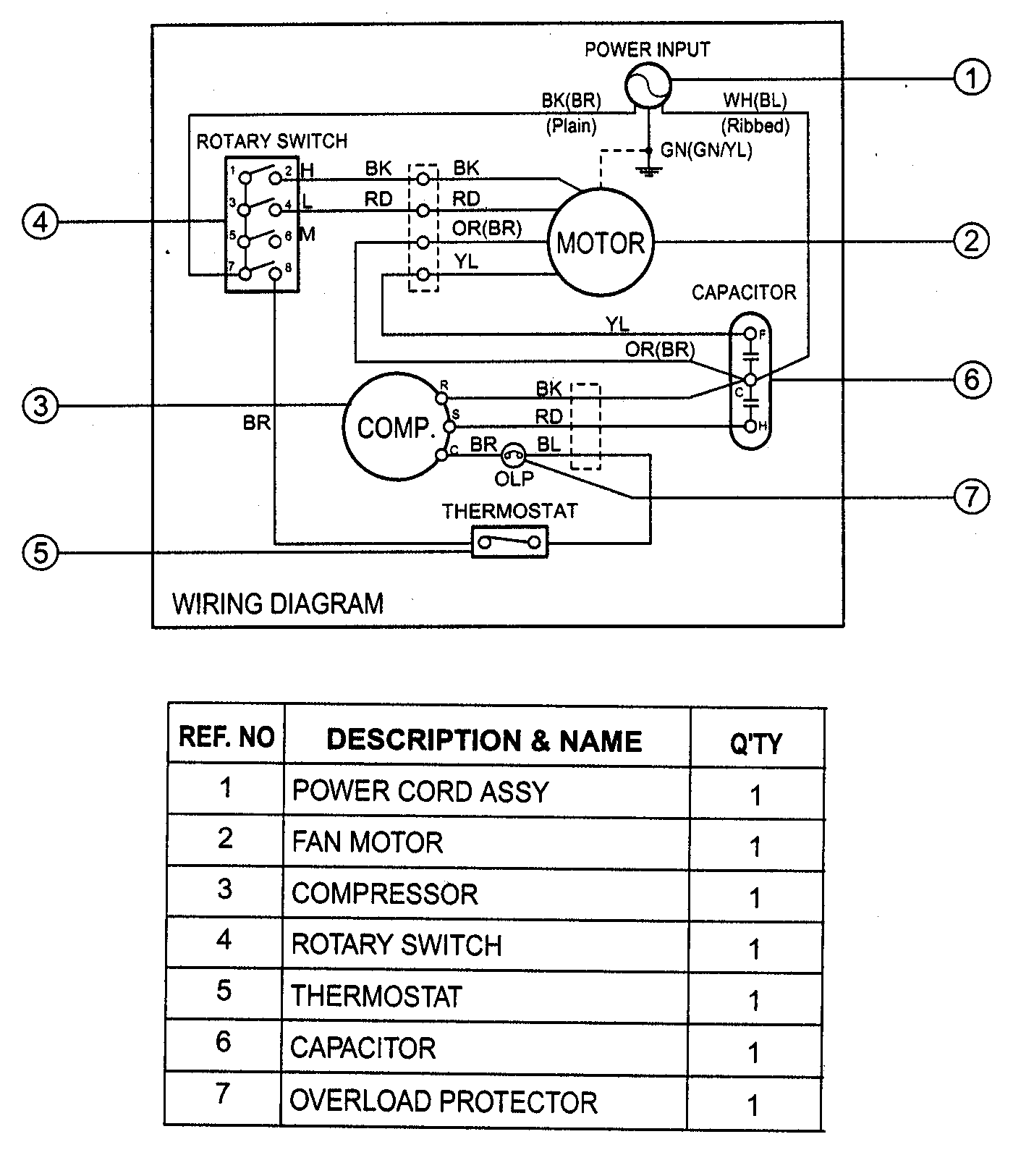

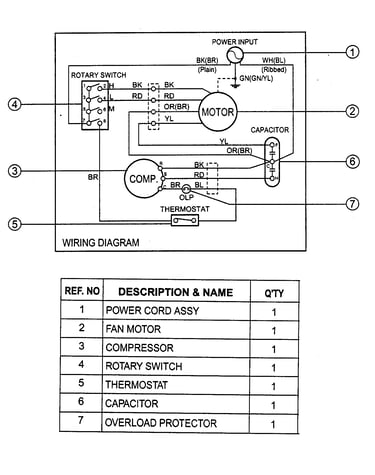

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#8602

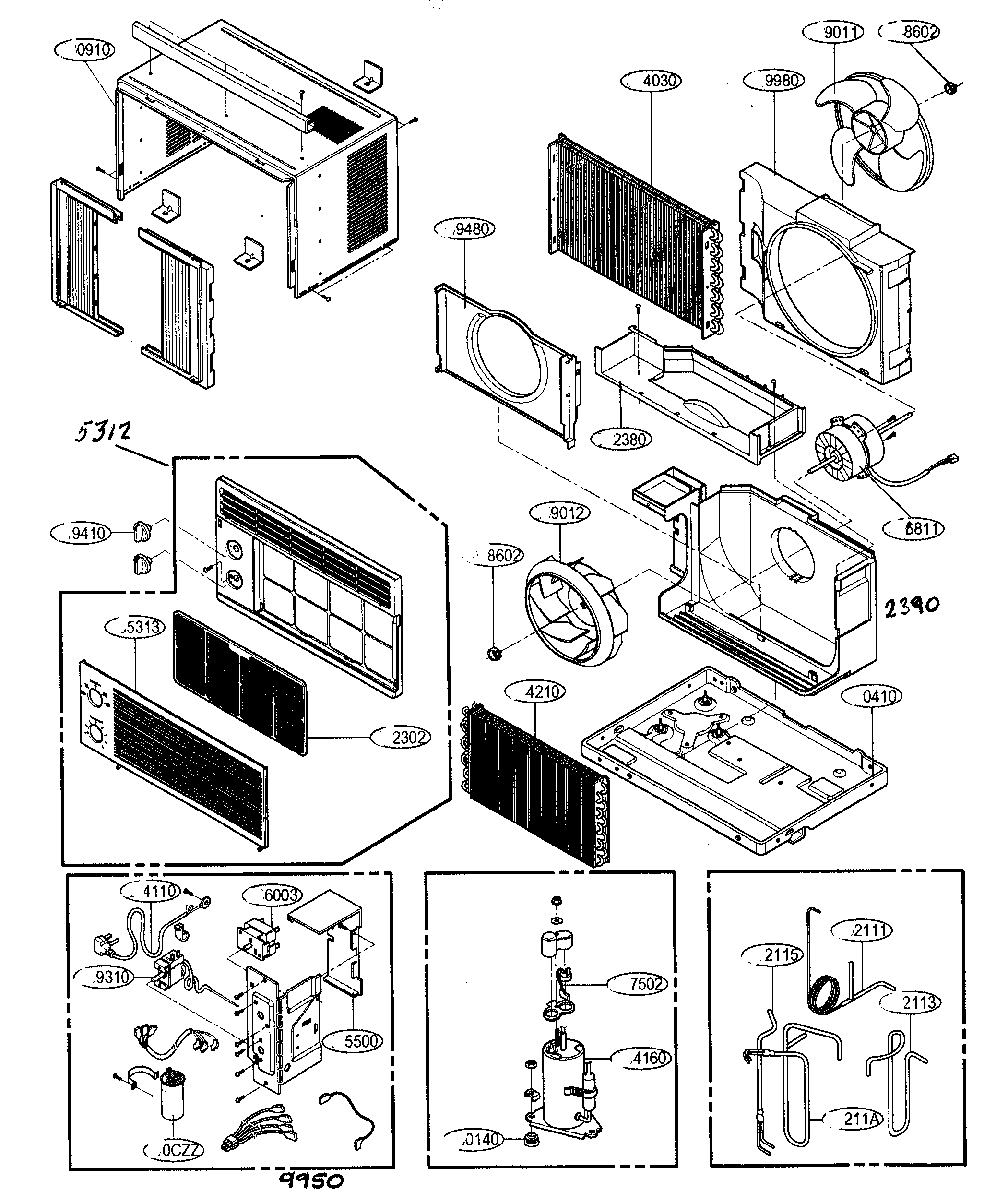

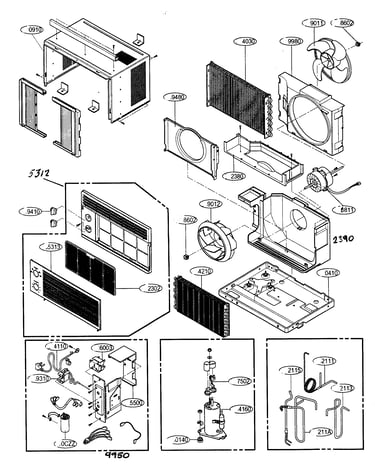

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Thermostat 2H01109H
#9310

Cabinet parts diagram

Room air conditioner thermostat

Part #2H01109H

Replaced by #2H01109L

?
Manufacturer substitution
This part replaces 2H01109H. Substitute parts can look different from the original.
$31.05 |
14% OFF Phone Price : $36.05
In Stock
Room Air Conditioner Compressor Grommet 5040AR4195A
#140

Cabinet parts diagram

Room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Evaporator 5421A10008B
#4210

Cabinet parts diagram

Evaporator

Part #5421A10008B

Replaced by #5421A10008A

?
Manufacturer substitution
This part replaces 5421A10008B. Substitute parts can look different from the original.
$105.92
In Stock
Capacitor 6120AR2359V
#CZZ

Cabinet parts diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
14% OFF Phone Price : $34.57
In Stock
Condenser 5403A20038D
#4030

Cabinet parts diagram

Condenser

Part #5403A20038D

Replaced by #5403A20038H

?
Manufacturer substitution
This part replaces 5403A20038D. Substitute parts can look different from the original.
$150.02
In Stock
Filter(mec 5231AR2148D
#2302

Cabinet parts diagram

Filter(mec

Part #5231AR2148D

Replaced by #5231AR2148R

?
Manufacturer substitution
This part replaces 5231AR2148D. Substitute parts can look different from the original.
$14.51
In Stock
Fan 5900A20005A
#9012

Cabinet parts diagram

Fan

Part #5900A20005A

The manufacturer no longer makes this part, and there's no substitute part

Orifice 4948A10007A
#9480

Cabinet parts diagram

Orifice

Part #4948A10007A

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly 4941AR7315B
#9410

Cabinet parts diagram

Knob assembly

Part #4941AR7315B

The manufacturer no longer makes this part, and there's no substitute part
