Frigidaire
Room Air Conditioner

Model # FFRP152LT40 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRP152LT40 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

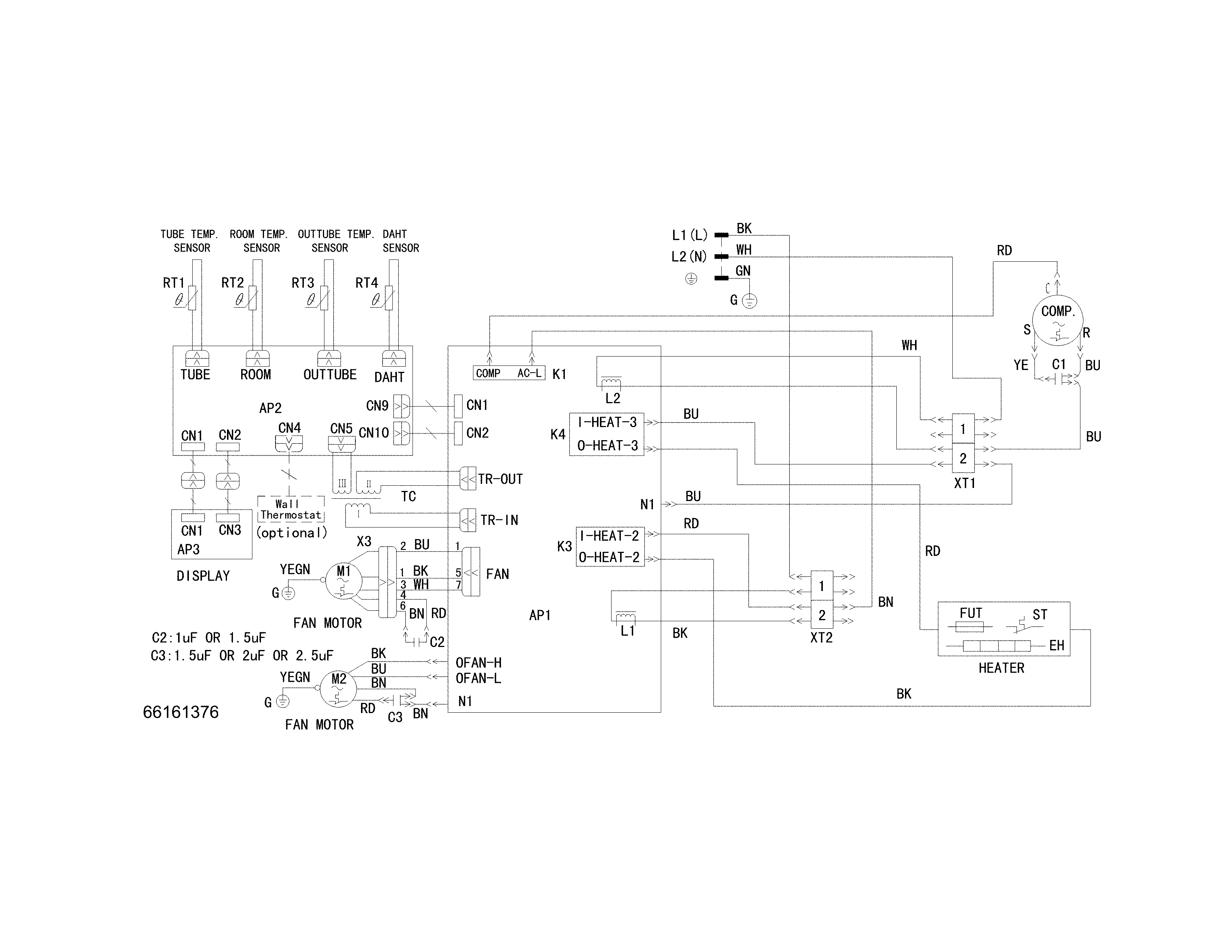

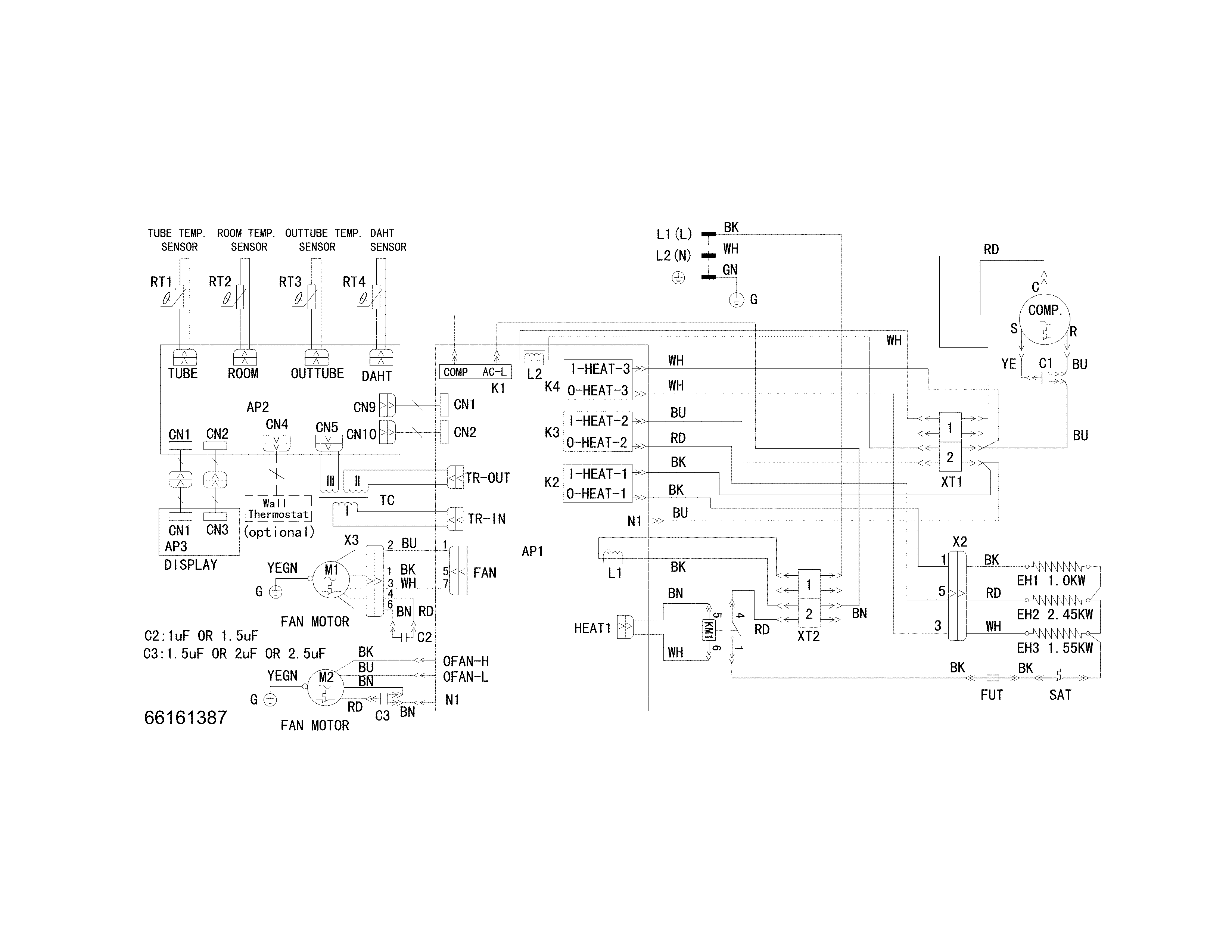

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Terminal,electric ,board 2-8 5304459674
#69

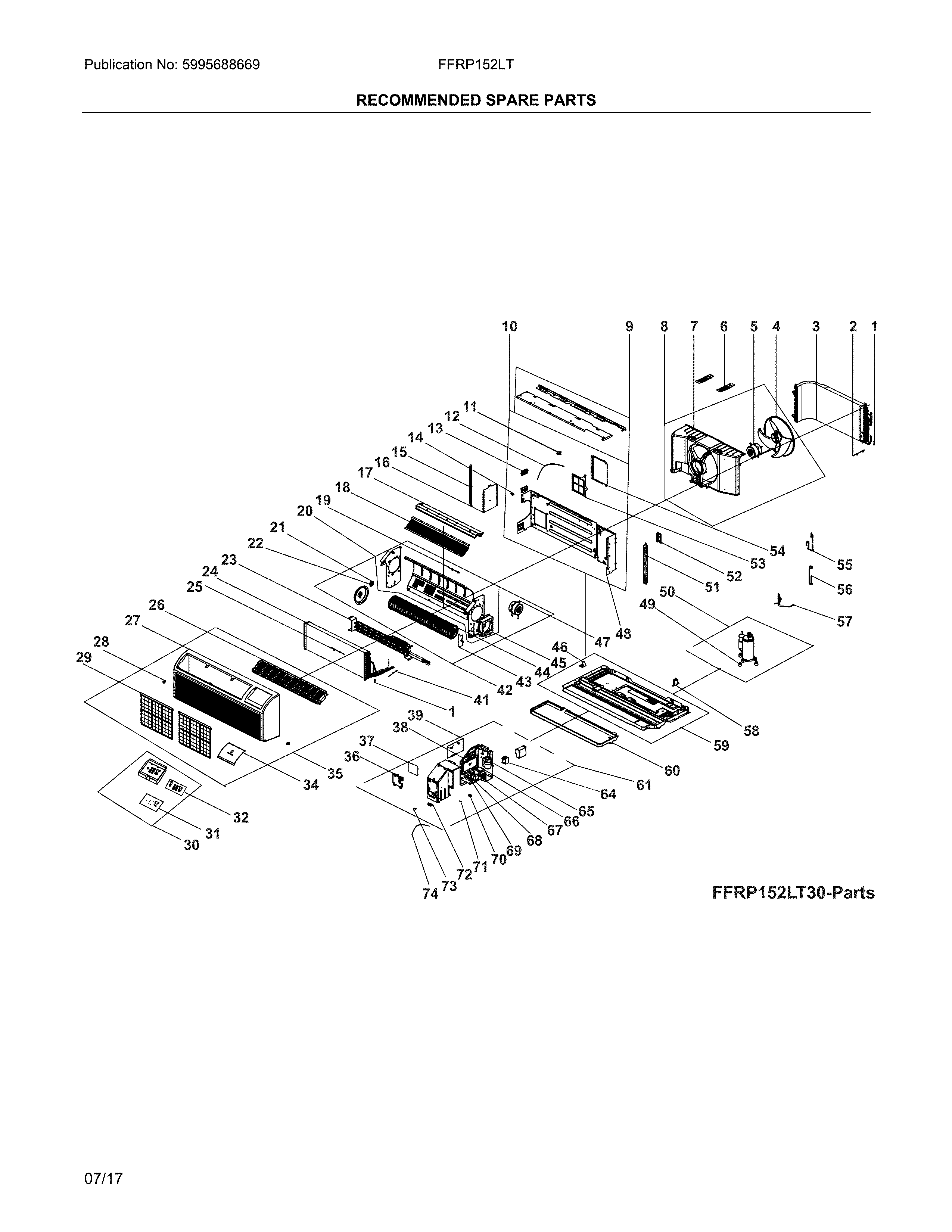

Recommended spare parts diagram

Terminal,electric ,board 2-8

Part #5304459674

The manufacturer no longer makes this part, and there's no substitute part

Chassis 5304510806
#59

Recommended spare parts diagram

Chassis

Part #5304510806

The manufacturer no longer makes this part, and there's no substitute part

Box Assembly,electric ,w/pc Boards 5304510683
#61

Recommended spare parts diagram

Box assembly,electric ,w/pc boards

Part #5304510683

The manufacturer no longer makes this part, and there's no substitute part

Support Plate,pc Board 5304510623
#36

Recommended spare parts diagram

Support plate,pc board

Part #5304510623

The manufacturer no longer makes this part, and there's no substitute part

Connector,wire ,wall Thermostat 5304483950
#72

Recommended spare parts diagram

Connector,wire ,wall thermostat

Part #5304483950

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade,propeller ,axial Flow 5304483797
#4

Recommended spare parts diagram

Fan blade,propeller ,axial flow

Part #5304483797

The manufacturer no longer makes this part, and there's no substitute part

Remote Control Cover 5304483961
#34

Recommended spare parts diagram

Remote control cover

Part #5304483961

The manufacturer no longer makes this part, and there's no substitute part

Box Assembly,electric ,w/pc Boards 5304510798
#61

Recommended spare parts diagram

Box assembly,electric ,w/pc boards

Part #5304510798

The manufacturer no longer makes this part, and there's no substitute part

Air Duct,assembly ,w/fan & Blower 5304510809
#42

Recommended spare parts diagram

Air duct,assembly ,w/fan & blower

Part #5304510809

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube Assembly 5304510805
#57

Recommended spare parts diagram

Capillary tube assembly

Part #5304510805

The manufacturer no longer makes this part, and there's no substitute part
