GE
Room Air Conditioner

Model # AZ95H12EACK1 Official GE room a/c

Here are the diagrams and repair parts for Official GE AZ95H12EACK1 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Reversing Valve Assembly WP53X28412
#320

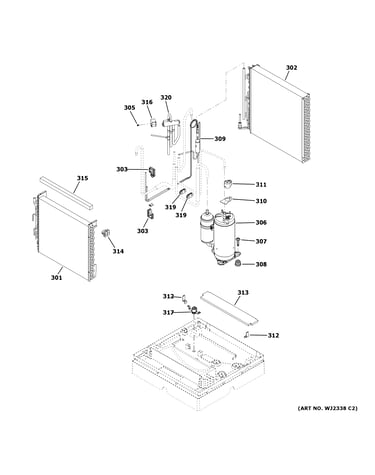

Sealed system diagram

Reversing valve assembly

Part #WP53X28412

In Stock
Scr 5/16 B S WP01X20878
#206

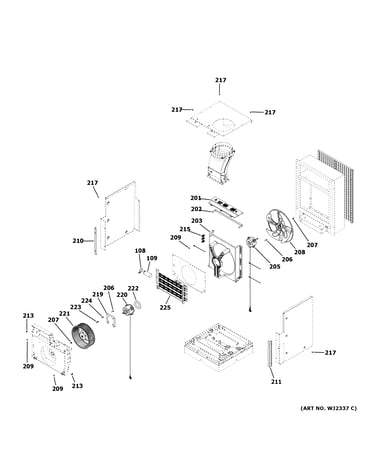

Motor & chassis parts diagram

Scr 5/16 b s

Part #WP01X20878

In Stock
Motor Bracket Screw WP01X28086
#223

Motor & chassis parts diagram

Motor bracket screw

Part #WP01X28086

In Stock
Personality Board WP26X28064
#102

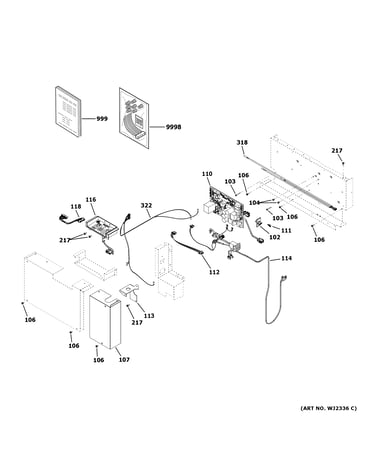

Control parts diagram

Personality board

Part #WP26X28064

In Stock
Indoor Thermistor WP26X28044
#318

Control parts diagram

Indoor thermistor

Part #WP26X28044

In Stock
Outdoor Shroud Cover Gasket WP43X28038
#202

Motor & chassis parts diagram

Outdoor shroud cover gasket

Part #WP43X28038

In Stock
Isolator Tube WP53X28067
#319

Sealed system diagram

Isolator tube

Part #WP53X28067

In Stock
Scr 10-32 Ab Hxw 7/16 S WP01X21546
#104

Control parts diagram

Scr 10-32 ab hxw 7/16 s

Part #WP01X21546

This item is not returnable
In Stock
Fan Motor Gasket WP43X28076
#222

Motor & chassis parts diagram

Fan motor gasket

Part #WP43X28076

In Stock
Heater Grommet WP01X28041
#314

Sealed system diagram

Heater grommet

Part #WP01X28041

In Stock
