Carrier KCA023301P window air conditioner

Carrier KCA023301P window air conditioner Parts

Here are the diagrams and repair parts for Carrier KCA023301P window air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for KCA023301P Window Air Conditioner

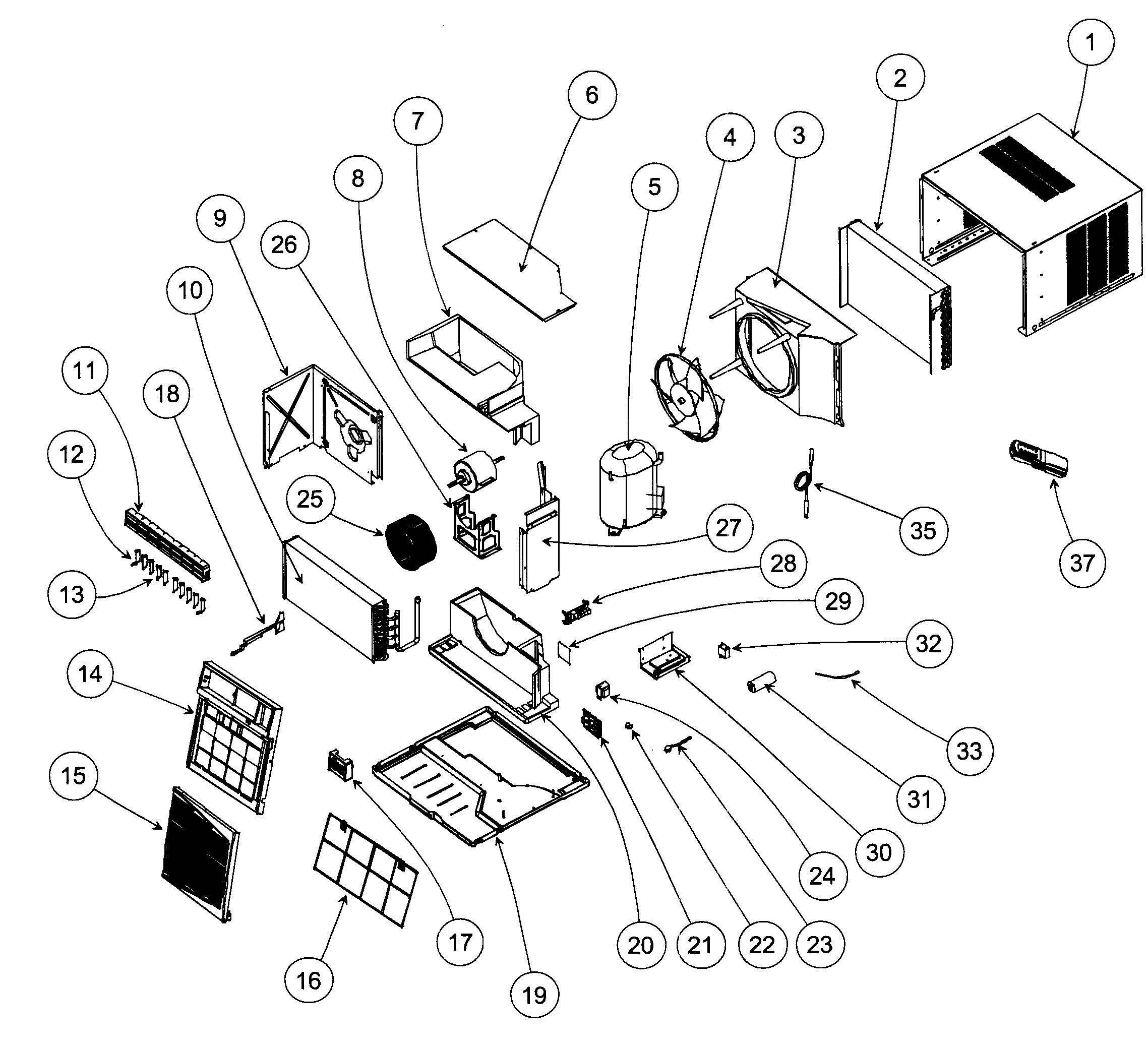

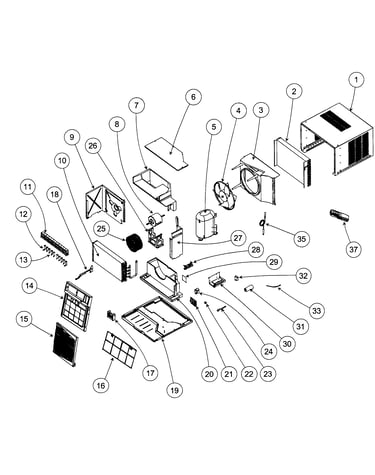

Cabinet parts diagram
Drain
Part #210945
In Stock
$47.80
Qty
Cabinet parts diagram
Thermistor
Part #814071
In Stock
$108.32
Qty
Cabinet parts diagram
Capacitor
Part #1411685
In Stock
$31.97
Qty
Cabinet parts diagram
Air Duct
Part #810129
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Head Support
Part #81408277
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Compressor
Part #P032-2627
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Evaporator Assembly
Part #81301162
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Front Panel Base
Part #810061120
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Chassis Assembly
Part #81002188
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Air Vane
Part #8120154
The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your room air conditioners

Why is water leaking into the house from my window air conditioner?

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Why your window AC compressor is not turning on?

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Why won't my window air conditioner start?

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Why isn’t my air conditioner cooling?

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Why isn’t my air conditioner cooling well?

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Why does my window air conditioner's compressor hum but not work?

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Why won't my air conditioner turn on?

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Why are my window air conditioner's evaporator fins iced up?

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Why won't water draining from my window air conditioner?

Main causes: clogged drain hole, air conditioner not leveled properly…
