Frigidaire
Room Air Conditioner

Model # FAS185F2A3 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAS185F2A3 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

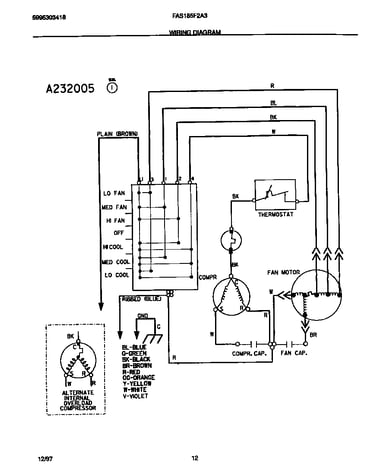

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Cover 5303002067
#7

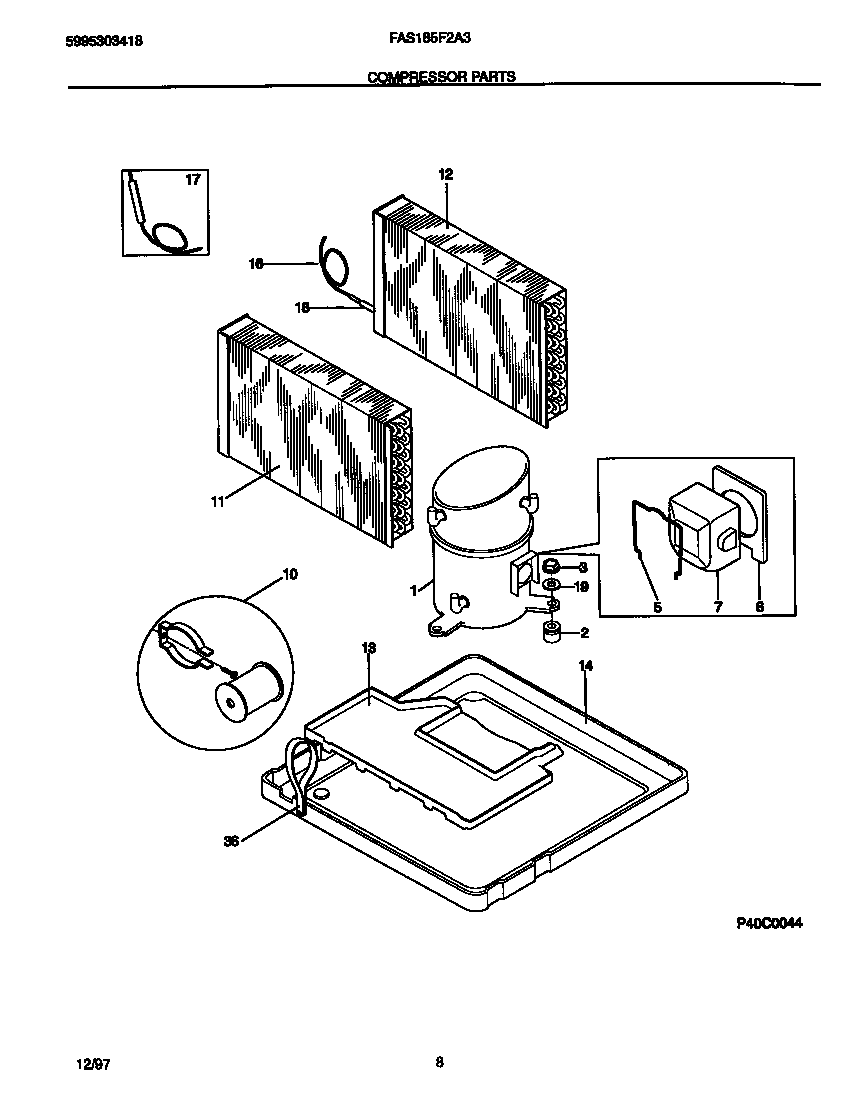

Compressor parts diagram

Cover

Part #5303002067

In Stock
Partition 5303295753
#10

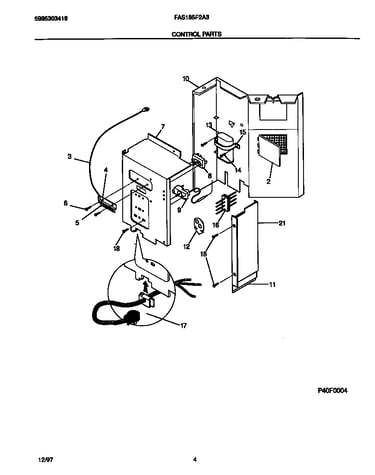

Control parts diagram

Partition

Part #5303295753

In Stock
Spacer 5303211009
#12

Control parts diagram

Spacer

Part #5303211009

This item is not returnable
In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Screw-wrapper 5303293767
Screw-wrapper

Part #5303293767

This item is not returnable
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 3202975
#2

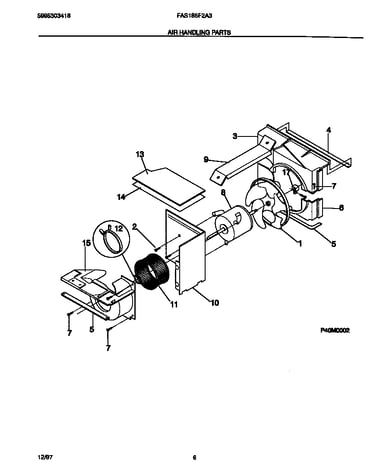

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut-hex 3017023
#12

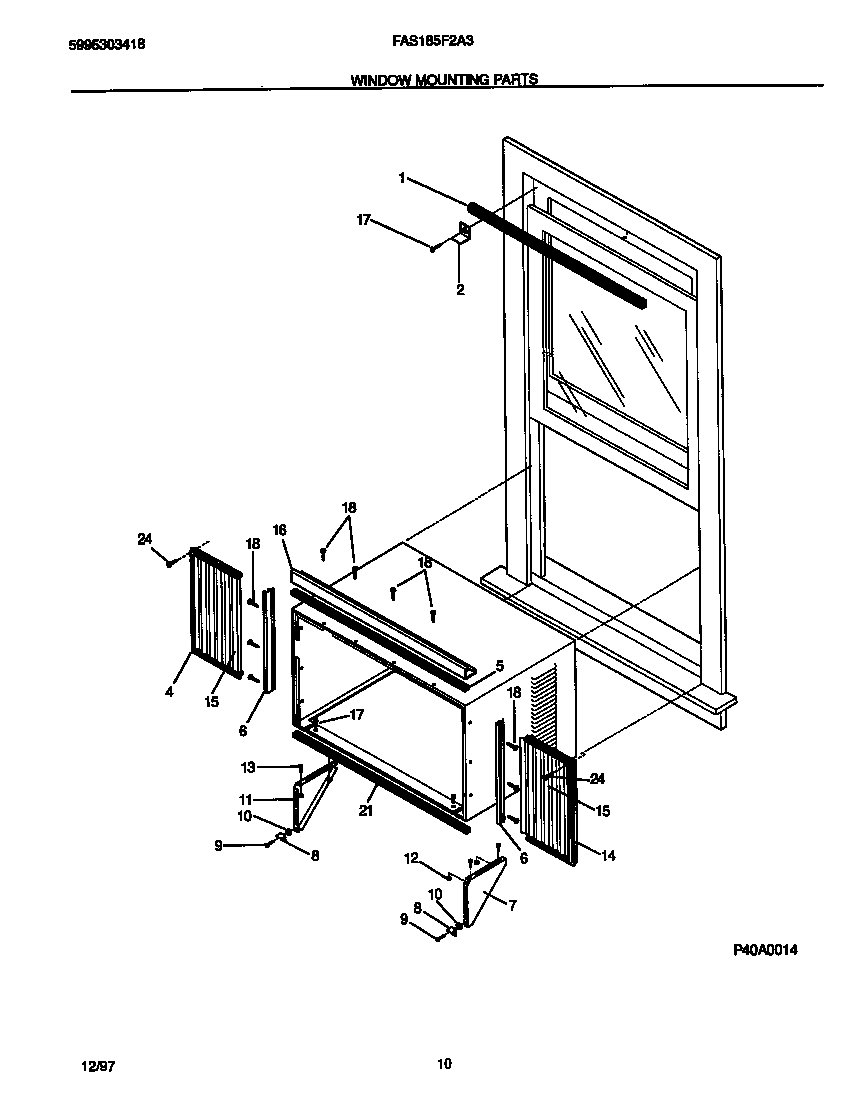

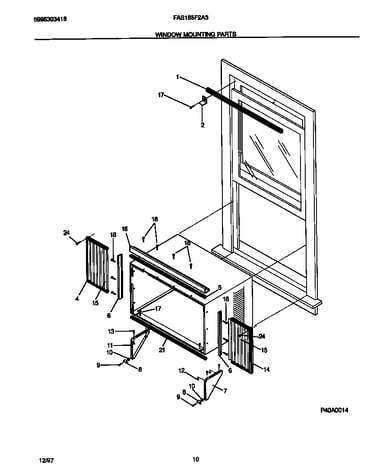

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
#14

Control parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Seal 08017132
#16

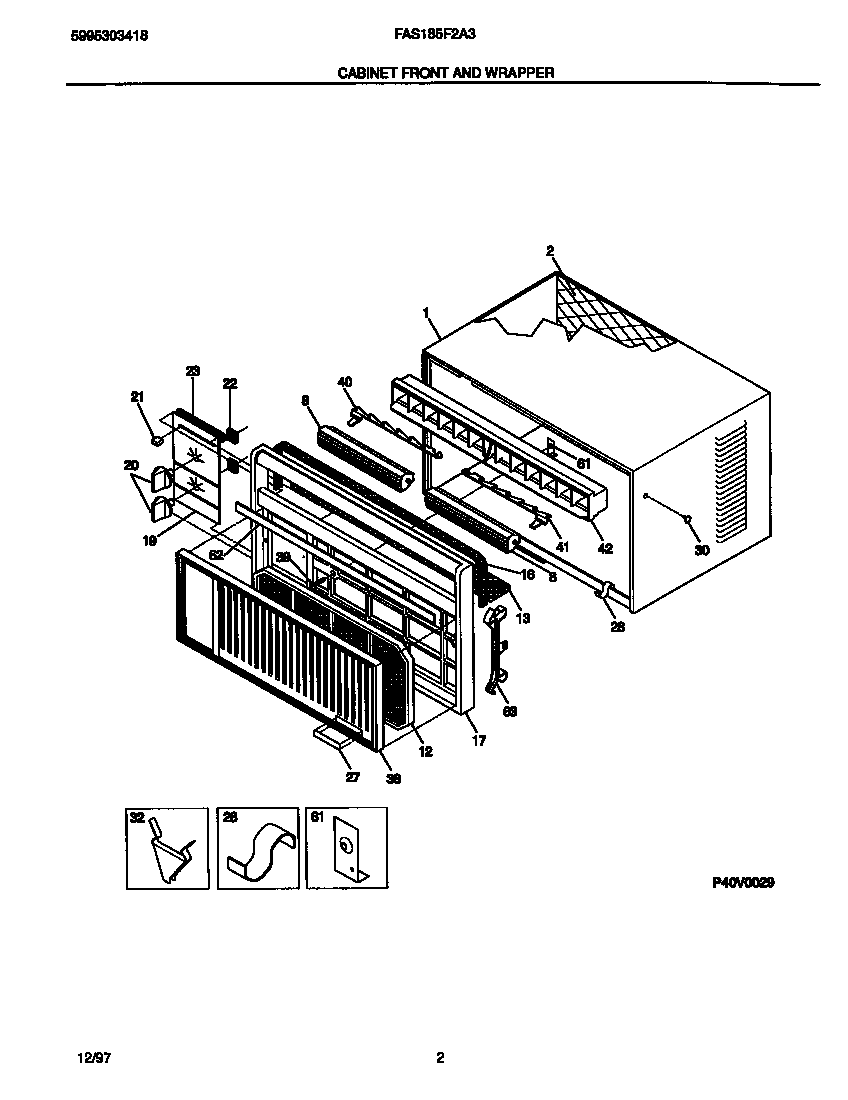

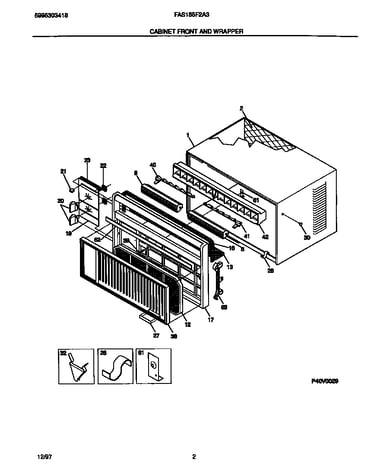

Cabinet front and wrapper diagram

Seal

Part #08017132

The manufacturer no longer makes this part, and there's no substitute part
