Model # 143274092 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143274092 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

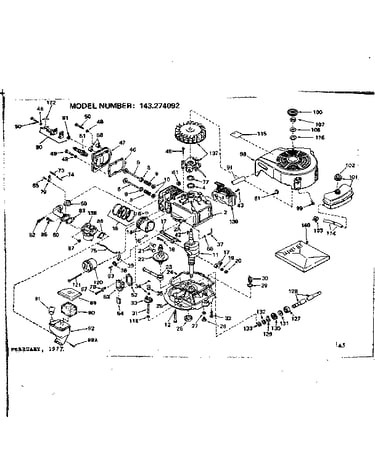

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |

Spark Plug 33636
#51

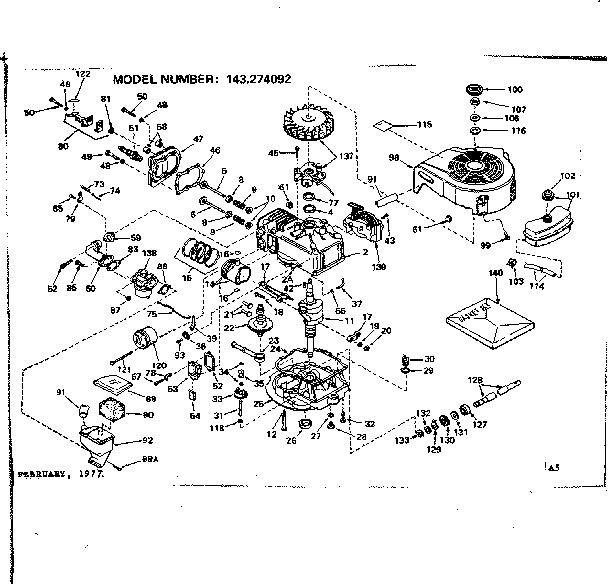

Replacement parts diagram

Spark plug

Part #33636

Replaced by #J19LM

?
Manufacturer substitution
This part replaces 33636. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.80
17% OFF Phone Price : $5.80
In Stock
Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#83

Replacement parts diagram

Lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.03
36% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#103

Replacement parts diagram

Lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Starter Rope 590527
#6

Rewind starter diagram

Starter rope

Part #590527

Replaced by #590535

?
Manufacturer substitution
This part replaces 590527. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89
10% OFF Phone Price : $9.89
In Stock
Fitting 631038
#26

Carburetor diagram

Fitting

Part #631038

Replaced by #632527

?
Manufacturer substitution
This part replaces 631038. Substitute parts can look different from the original.
This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Flange Gasket 26750A
#24

Replacement parts diagram

Flange gasket

Part #26750A

Replaced by #37609

?
Manufacturer substitution
This part replaces 26750A. Substitute parts can look different from the original.
This item is not returnable
In Stock
Spring Retainer 630731
#5

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Governor Control Lever Clamp 31335
#36

Replacement parts diagram

Lawn & garden equipment engine governor control lever clamp

Part #31335

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Breather Filter 31410
#54

Replacement parts diagram

Lawn & garden equipment engine breather filter

Part #31410

This item is not returnable
In Stock
