Model # 536886800 Official Craftsman 25" snow blower

Here are the diagrams and repair parts for Official Craftsman 536886800 25" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Wheel 90053830
#63

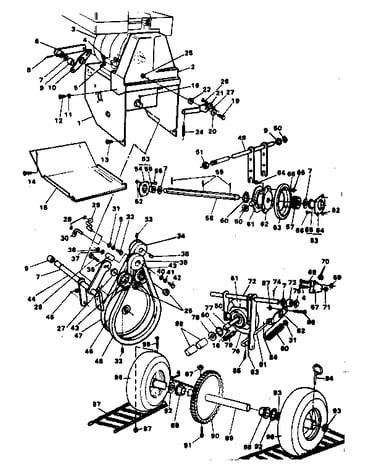

Motor mount assembly repair parts diagram

Wheel

Part #90053830

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 90053830. Substitute parts can look different from the original.
BEST SELLER
$28.81 |
15% OFF Phone Price : $33.81
In Stock
Knob 90071041
#13

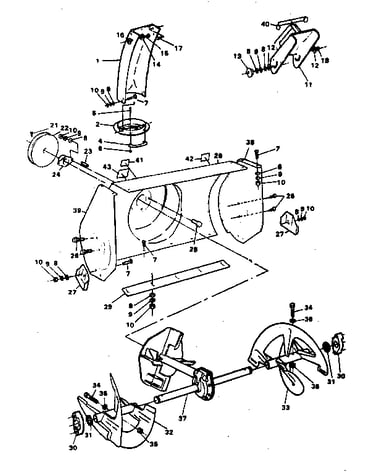

Auger housing assembly repair parts diagram

Knob

Part #90071041

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 90071041. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Height Adjustment 90085105
#27

Auger housing assembly repair parts diagram

Height adjustment

Part #90085105

Replaced by #1740912BMYP

?
Manufacturer substitution
This part replaces 90085105. Substitute parts can look different from the original.
BEST SELLER
$20.58 |
20% OFF Phone Price : $25.58
In Stock
Cable 90001579
#27

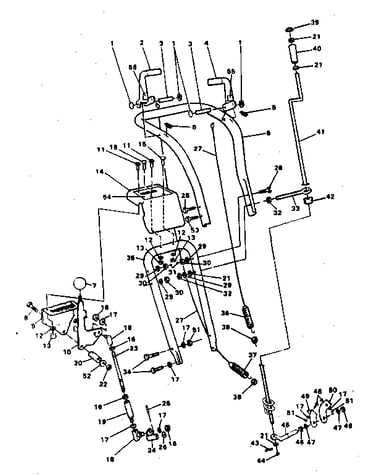

Upper handle assembly repair parts diagram

Cable

Part #90001579

Replaced by #1579MA

?
Manufacturer substitution
This part replaces 90001579. Substitute parts can look different from the original.
$32.82 |
13% OFF Phone Price : $37.82
In Stock
Retainer 90000239
#93

Motor mount assembly repair parts diagram

Retainer

Part #90000239

Replaced by #1657528SM

?
Manufacturer substitution
This part replaces 90000239. Substitute parts can look different from the original.
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Bearing 90085087
#24

Auger housing assembly repair parts diagram

Bearing

Part #90085087

Replaced by #761508MA

?
Manufacturer substitution
This part replaces 90085087. Substitute parts can look different from the original.
$84.39 |
6% OFF Phone Price : $89.39
In Stock
Screw 90000130
#21

Auger housing assembly repair parts diagram

Screw

Part #90000130

Replaced by #577400MA

?
Manufacturer substitution
This part replaces 90000130. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Hub 90053831
#62

Motor mount assembly repair parts diagram

Hub

Part #90053831

Replaced by #1739282YP

?
Manufacturer substitution
This part replaces 90053831. Substitute parts can look different from the original.
$57.08 |
8% OFF Phone Price : $62.08
In Stock
Seal 90053744
#1

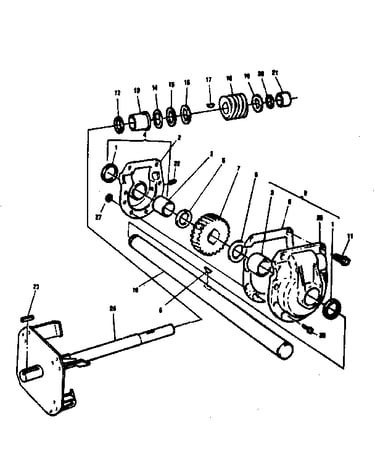

Gear box repair parts diagram

Seal

Part #90053744

Replaced by #780151MA

?
Manufacturer substitution
This part replaces 90053744. Substitute parts can look different from the original.
This item is not returnable
$15.92 |
11% OFF Phone Price : $17.92
In Stock
Bolt 90071147
#17

Auger housing assembly repair parts diagram

Bolt

Part #90071147

Replaced by #578088MA

?
Manufacturer substitution
This part replaces 90071147. Substitute parts can look different from the original.
This item is not returnable
$8.69
In Stock
