Amana
Heating & Cooling Combined Unit

Model #PTH123A25AA/P1223514R Amana air conditioner & heater

Here are the diagrams and repair parts for Amana PTH123A25AA-P1223514R air conditioner & heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 175 parts

    Screw

    #1231

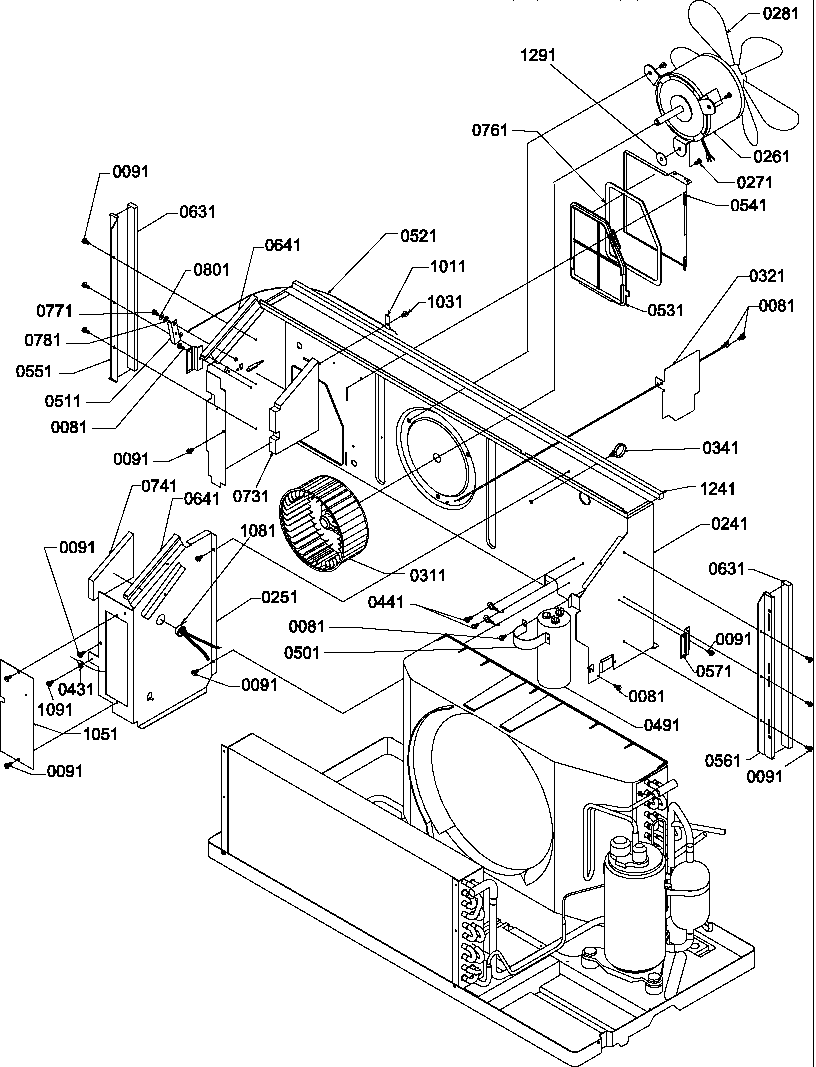

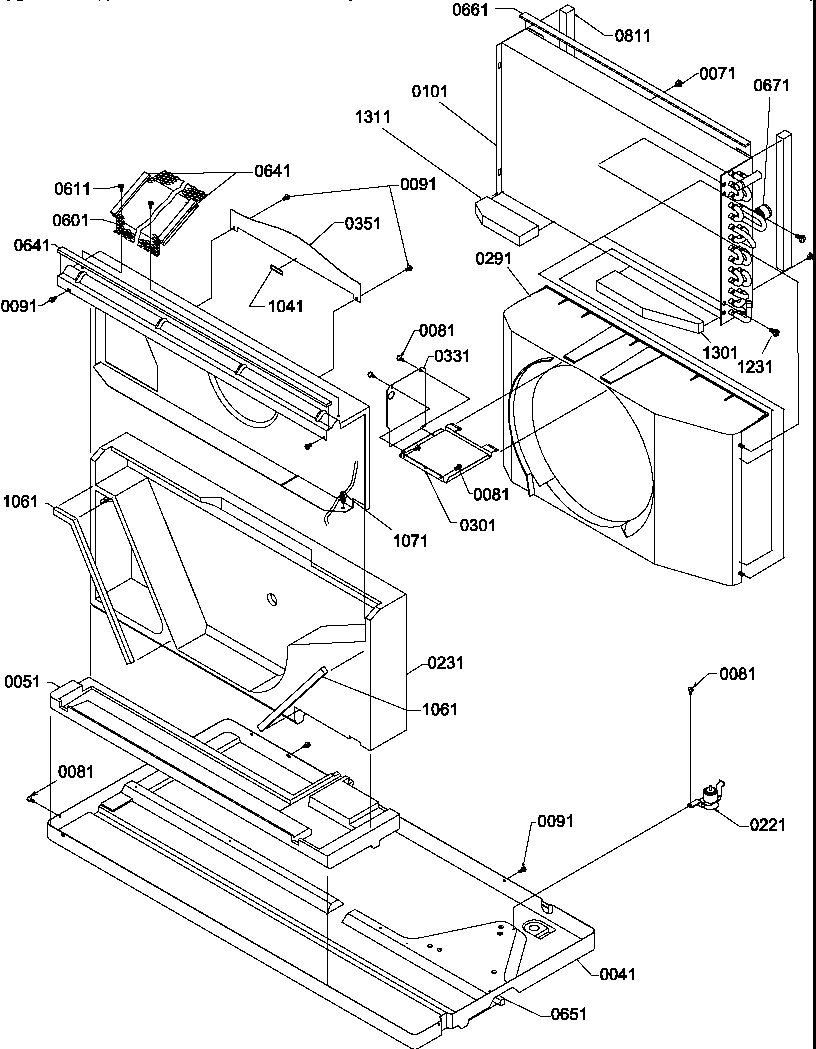

    Chassis Diagram

    Screw

    Part #M0216716

    The manufacturer no longer makes this part, and there's no substitute part

    Capacitor

    #491

    Chassis Diagram

    Capacitor

    Part #D6789060
    ?
    Manufacturer substitution
    This part replaces D6879842. Substitute parts can look different from the original.
    This part replaces D6879842
    $14.86

    In Stock

    Clip

    #111

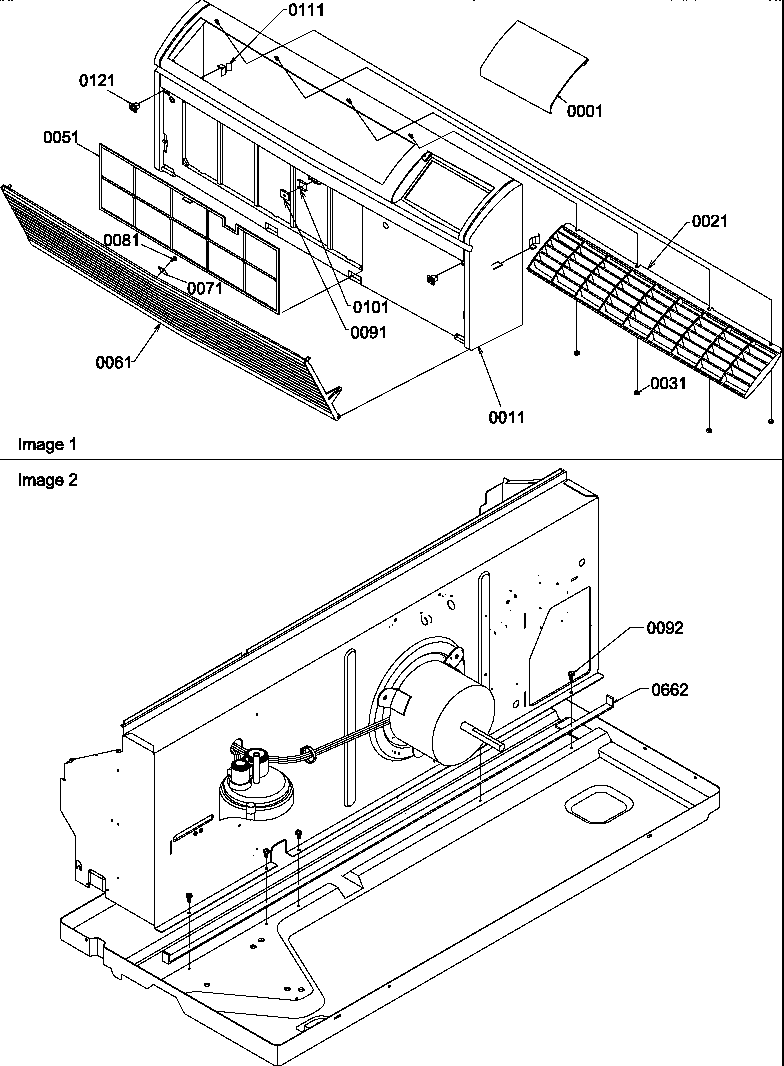

    Front/chassis Diagram

    Clip

    Part #11045102
    ?
    Manufacturer substitution
    This part replaces 11045102. Substitute parts can look different from the original.
    This part replaces 11045102
    This item is not returnable
    $4.20

    In Stock

    Screw

    #0

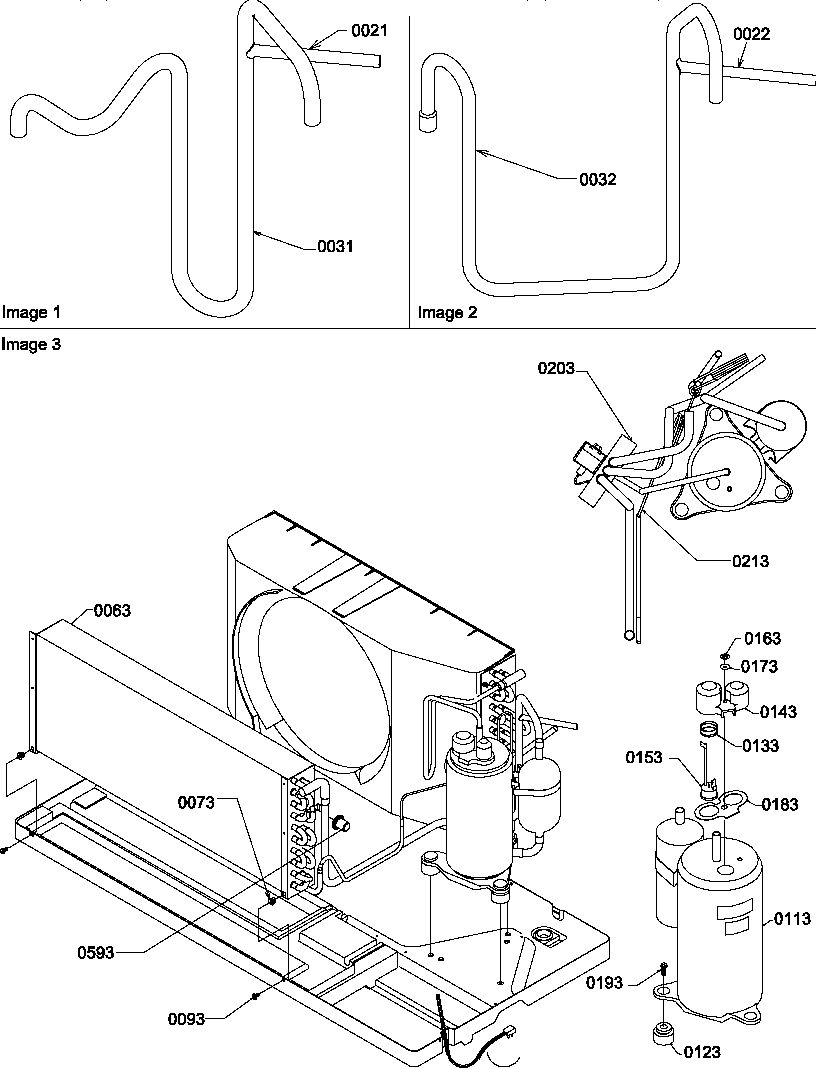

    Compressor/tubing Diagram

    Screw

    Part #W10841059
    ?
    Manufacturer substitution
    This part replaces M0211345. Substitute parts can look different from the original.
    This part replaces M0211345
    This item is not returnable
    $3.29

    In Stock

    Lock Nut

    #163

    Compressor/tubing Diagram

    Lock nut

    Part #WP776338
    ?
    Manufacturer substitution
    This part replaces A3436601. Substitute parts can look different from the original.
    This part replaces A3436601
    $9.48

    In Stock

    Refrigerator Screw

    #611

    Chassis Diagram

    Refrigerator screw

    Part #WP489464
    ?
    Manufacturer substitution
    This part replaces M0204517. Substitute parts can look different from the original.
    This part replaces M0204517
    This item is not returnable
    $4.99

    In Stock

    Screw

    #81

    Chassis Diagram

    Screw

    Part #M0211216

    The manufacturer no longer makes this part, and there's no substitute part

    Room Air Conditioner Foam Seal

    #1241

    Chassis Diagram

    Room air conditioner foam seal

    Part #WP854334
    ?
    Manufacturer substitution
    This part replaces 10839814. Substitute parts can look different from the original.
    This part replaces 10839814
    $8.60

    In Stock

    Screw

    #1092

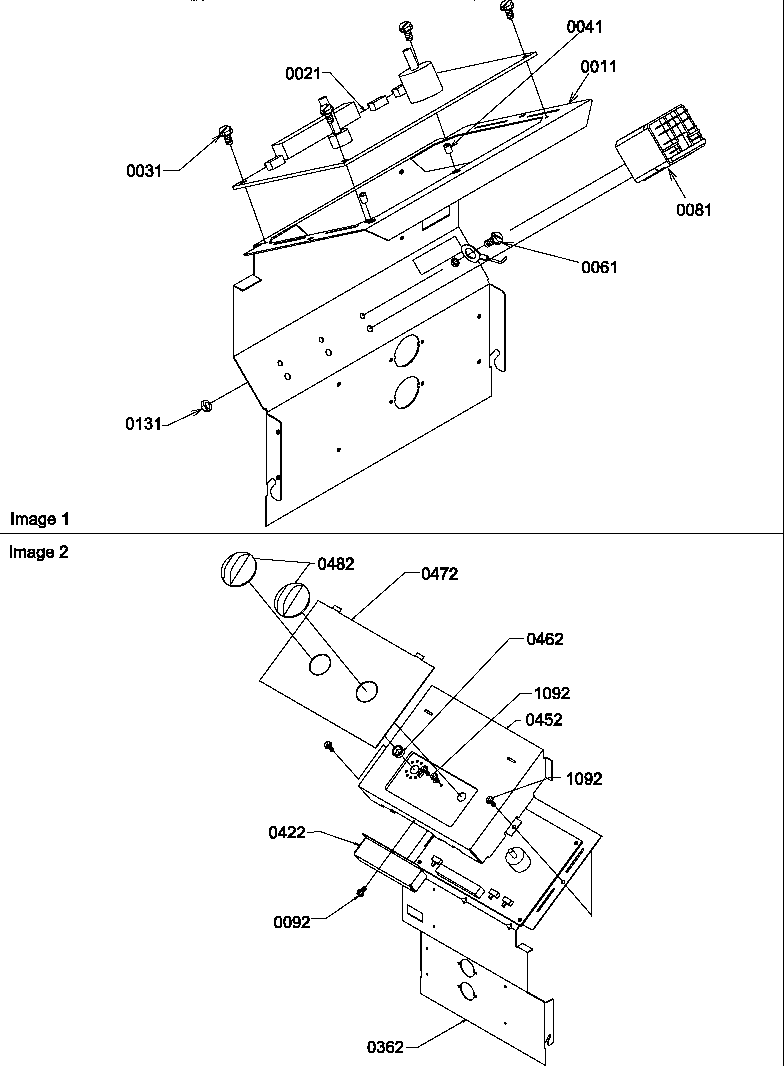

    Control panel Diagram

    Screw

    Part #M0216529

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Screw

    #81

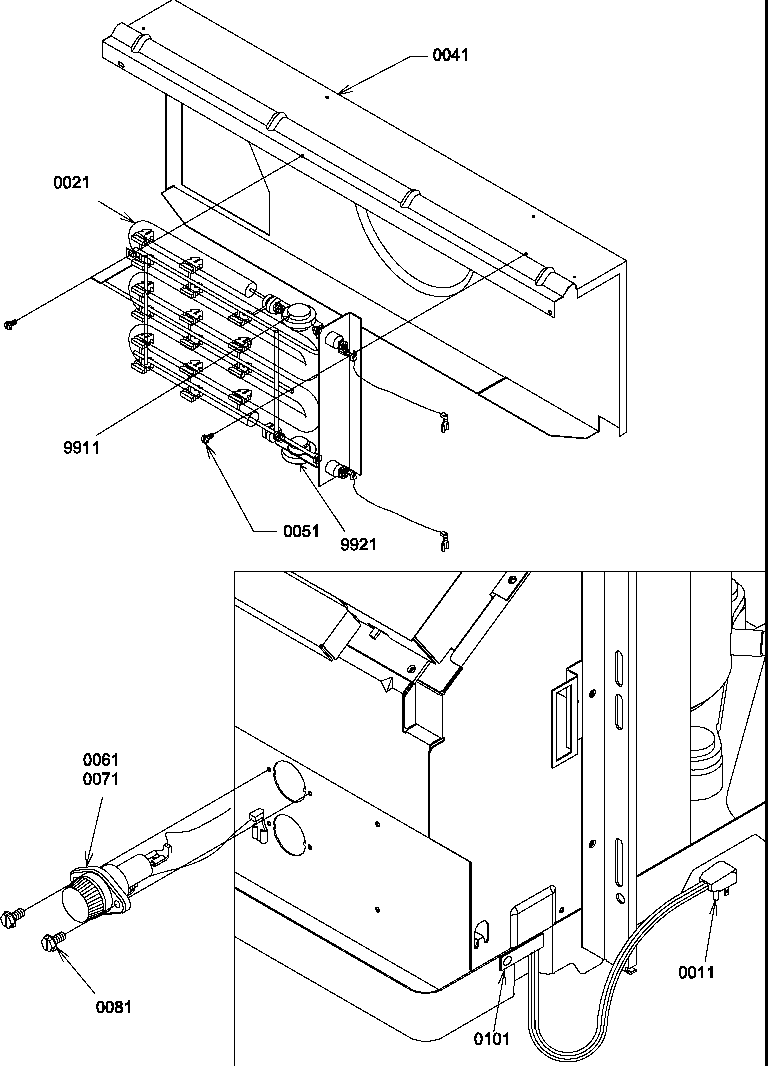

    Heater Diagram

    Microwave screw

    Part #8169474
    ?
    Manufacturer substitution
    This part replaces M0213817. Substitute parts can look different from the original.
    This part replaces M0213817
    This item is not returnable
    $3.58

    In Stock
