Sharp AF-806X air conditioner

Sharp AF-806X air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-806X air conditioner, as well as links to manuals and error code tables, if available.

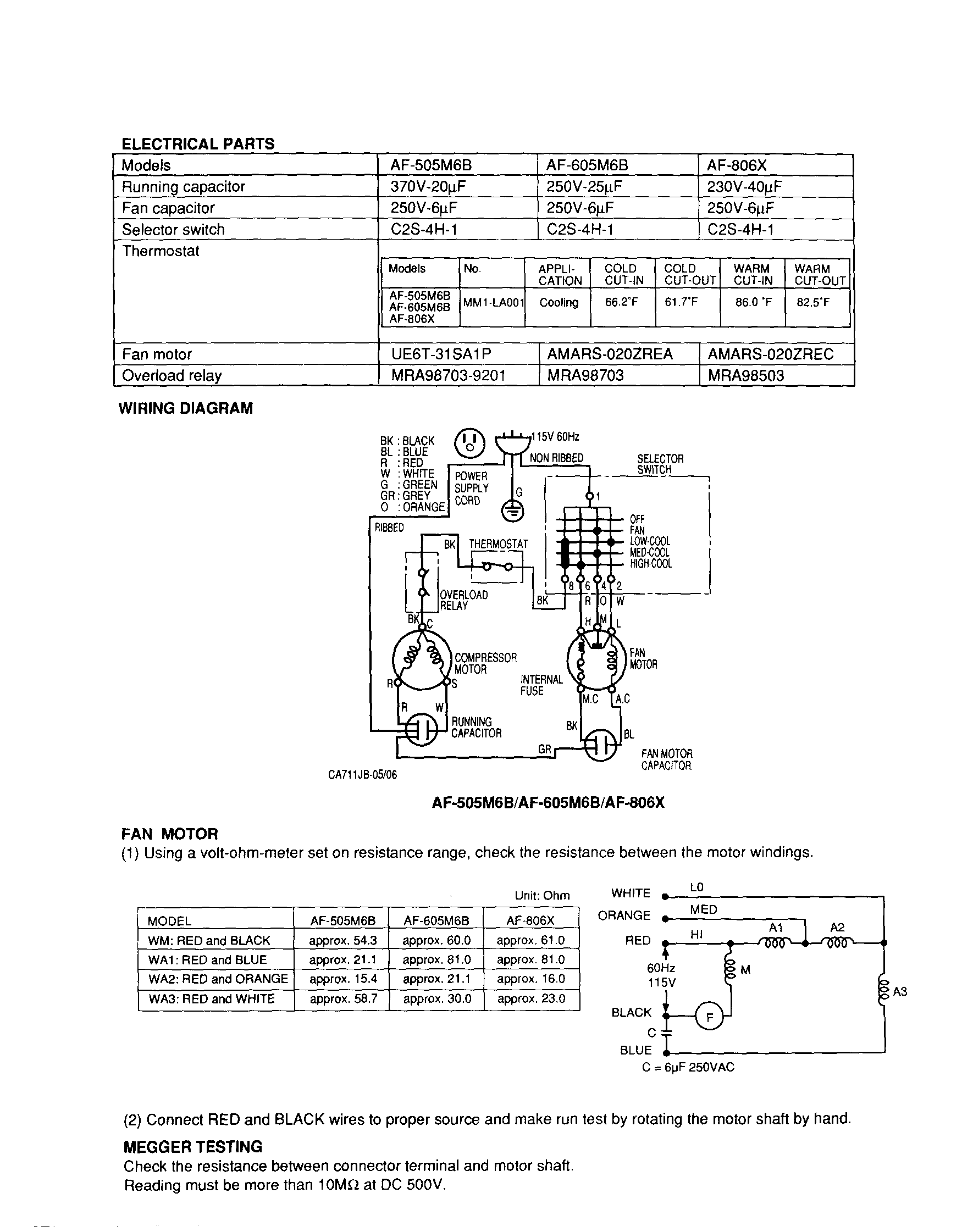

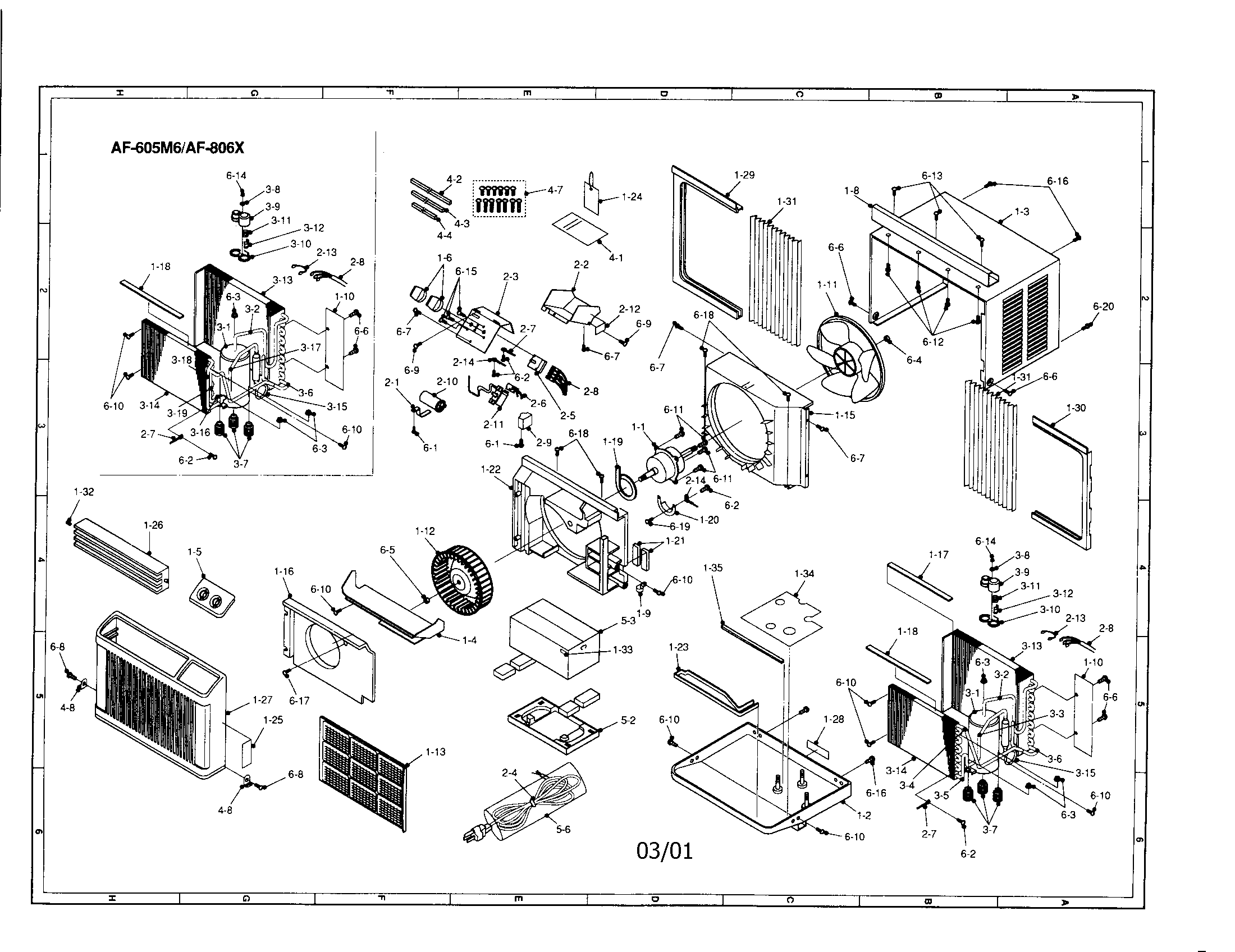

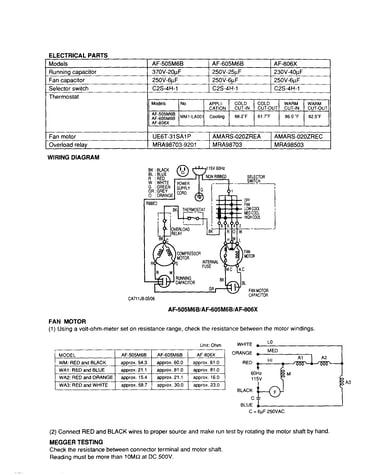

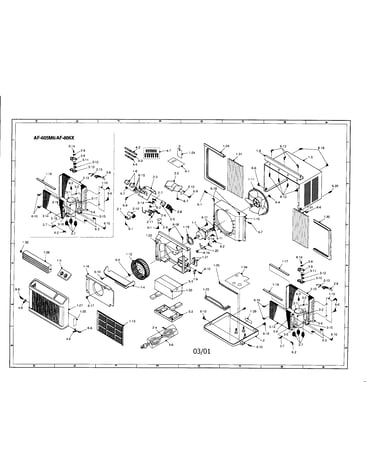

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AF-806X Air Conditioner

  • Screw for Sharp AF-806X - Part LX-BZ0107CBE0

    Air conditioner diagram

    Screw

    Part #LX-BZ0107CBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Evaporator for Sharp AF-806X - Part PEVA-A288JBE0

    Air conditioner diagram

    Evaporator

    Part #PEVA-A288JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Special Nut for Sharp AF-806X - Part LX-NZA074JBE0

    Air conditioner diagram

    Special Nut

    Part #LX-NZA074JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal for Sharp AF-806X - Part PSEL-A967JBE0

    Air conditioner diagram

    Seal

    Part #PSEL-A967JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Sharp AF-806X - Part RC-HZA283JBE0

    Air conditioner diagram

    Capacitor

    Part #RC-HZA283JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate for Sharp AF-806X - Part DPLT-A034JBW0

    Air conditioner diagram

    Plate

    Part #DPLT-A034JBW0

    The manufacturer no longer makes this part, and there's no substitute part

  • Foot for Sharp AF-806X - Part GLEG-A073JBE0

    Air conditioner diagram

    Foot

    Part #GLEG-A073JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover for Sharp AF-806X - Part PCOV-A320JBP0

    Air conditioner diagram

    Cover

    Part #PCOV-A320JBP0

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal for Sharp AF-806X - Part PSEL-A969JBE0

    Air conditioner diagram

    Seal

    Part #PSEL-A969JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser for Sharp AF-806X - Part PCON-A313JBE0

    Air conditioner diagram

    Condenser

    Part #PCON-A313JBE0

    The manufacturer no longer makes this part, and there's no substitute part
