Whirlpool
Microwave/Hood Combo

Model # MH6110XEQ1 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool MH6110XEQ1 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Light Bulb 4158344
Light bulb

Part #4158344

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158344. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

$30.98
In Stock
Microwave Air Filter 4358853
#8

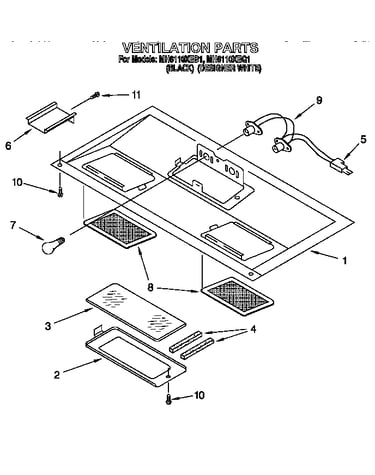

Ventilation diagram

Microwave air filter

Part #4358853

This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Thermostat 4358775
#5

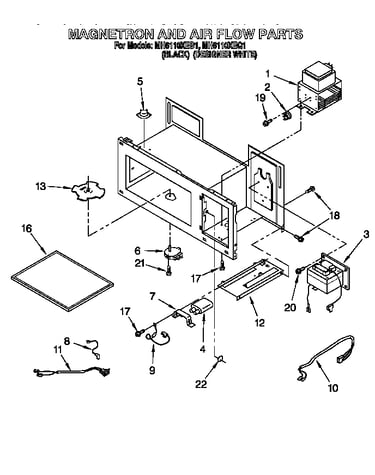

Magnetron and air flow diagram

Thermostat

Part #4358775

Replaced by #W10864742

?
Manufacturer substitution
This part replaces 4358775. Substitute parts can look different from the original.
$37.68 |
12% OFF Phone Price : $42.68
In Stock
Microwave Screw 4358380
#10B

Ventilation diagram

Microwave screw

Part #4358380

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358380. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw 4358192
Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Wire Harness 4358779
#10

Magnetron and air flow diagram

Wire harness

Part #4358779

$55.22
In Stock
Microwave Screw 4358489
Microwave screw

Part #4358489

Replaced by #4344826

?
Manufacturer substitution
This part replaces 4358489. Substitute parts can look different from the original.
$12.49
In Stock
Screw 4158321
#3

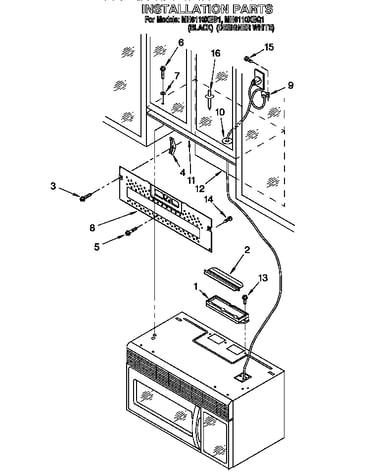

Installation diagram

Screw

Part #4158321

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Screw 4158747
#20

Magnetron and air flow diagram

Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
