Amana
Central Air Conditioner

Model # CRH3-1/P58094-22C Official Amana remote condensing section - crh series

Here are the diagrams and repair parts for Official Amana CRH3-1-P58094-22C remote condensing section - crh series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0211016
#95

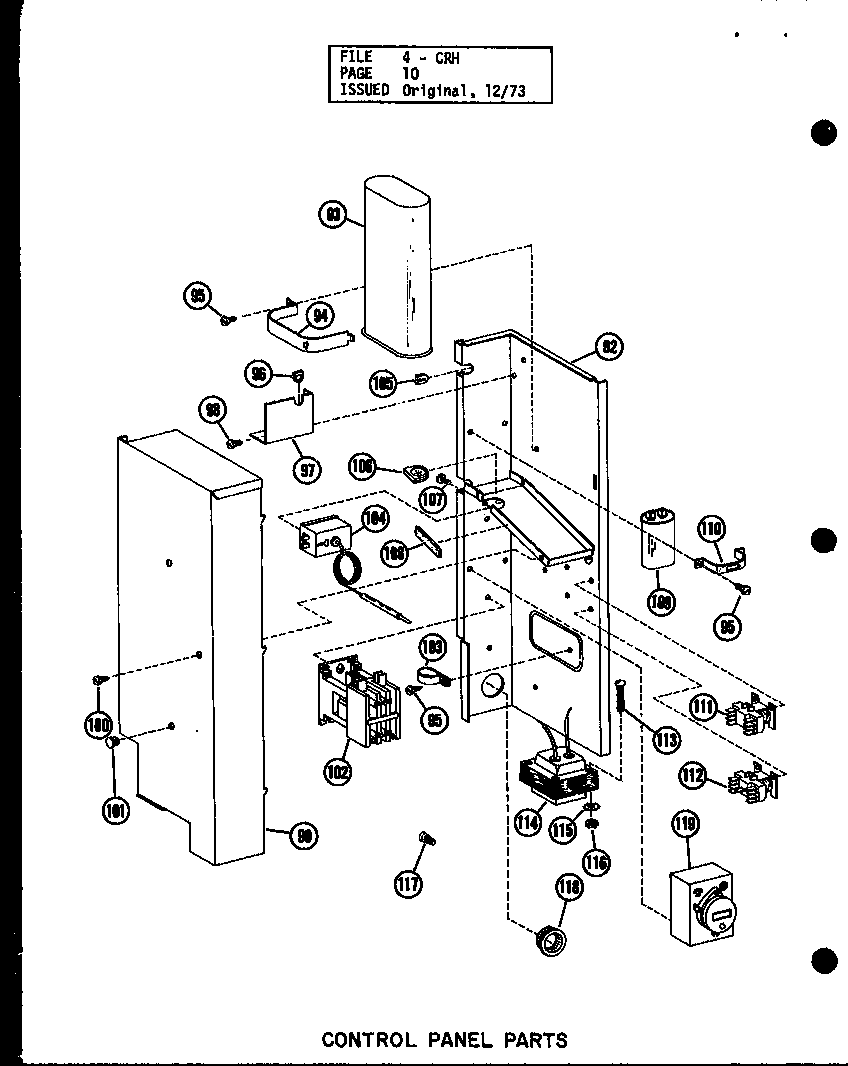

Control panel parts diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Defrost Timer C4859602
#119

Control panel parts diagram

Defrost timer

Part #C4859602

The manufacturer no longer makes this part, and there's no substitute part

Line, Liquid, Strainer To Q.c. A3315501
#60

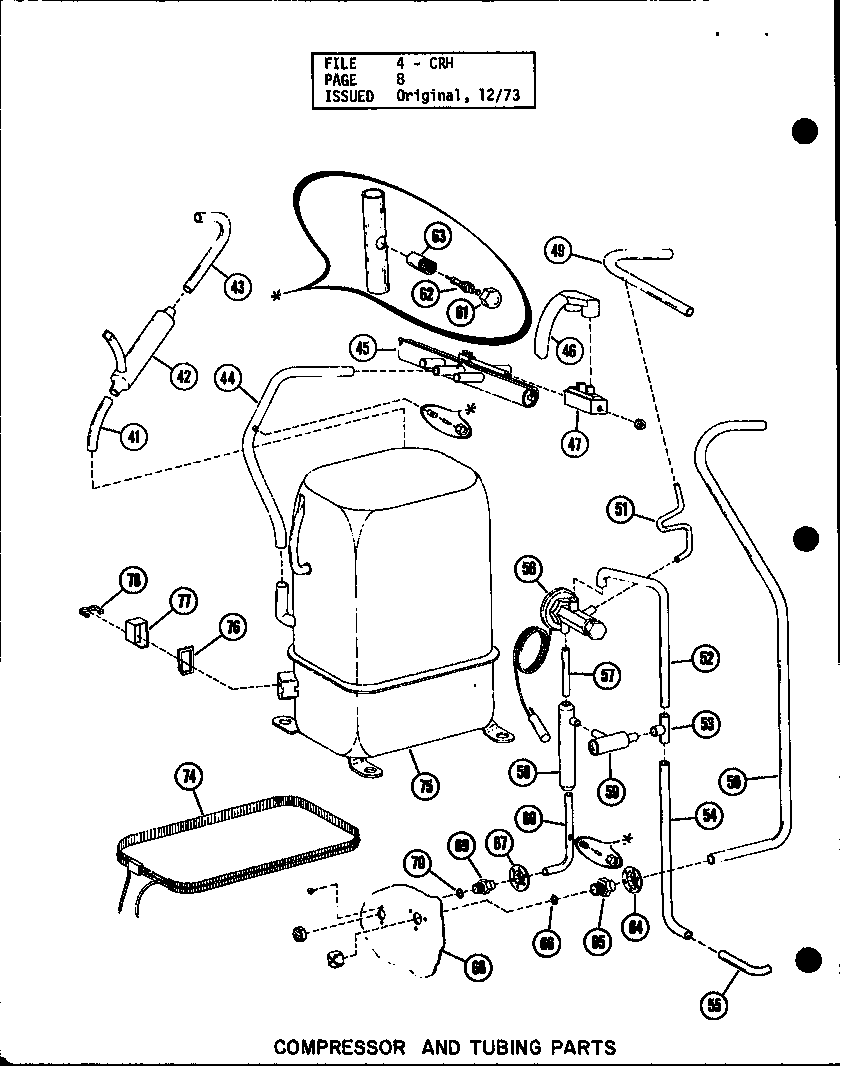

Compressor and tubing parts diagram

Line, liquid, strainer to q.c.

Part #A3315501

The manufacturer no longer makes this part, and there's no substitute part

Control 30/60 Wilcolator B4760301
#104

Control panel parts diagram

Control 30/60 wilcolator

Part #B4760301

The manufacturer no longer makes this part, and there's no substitute part

Nut M0283610
#13

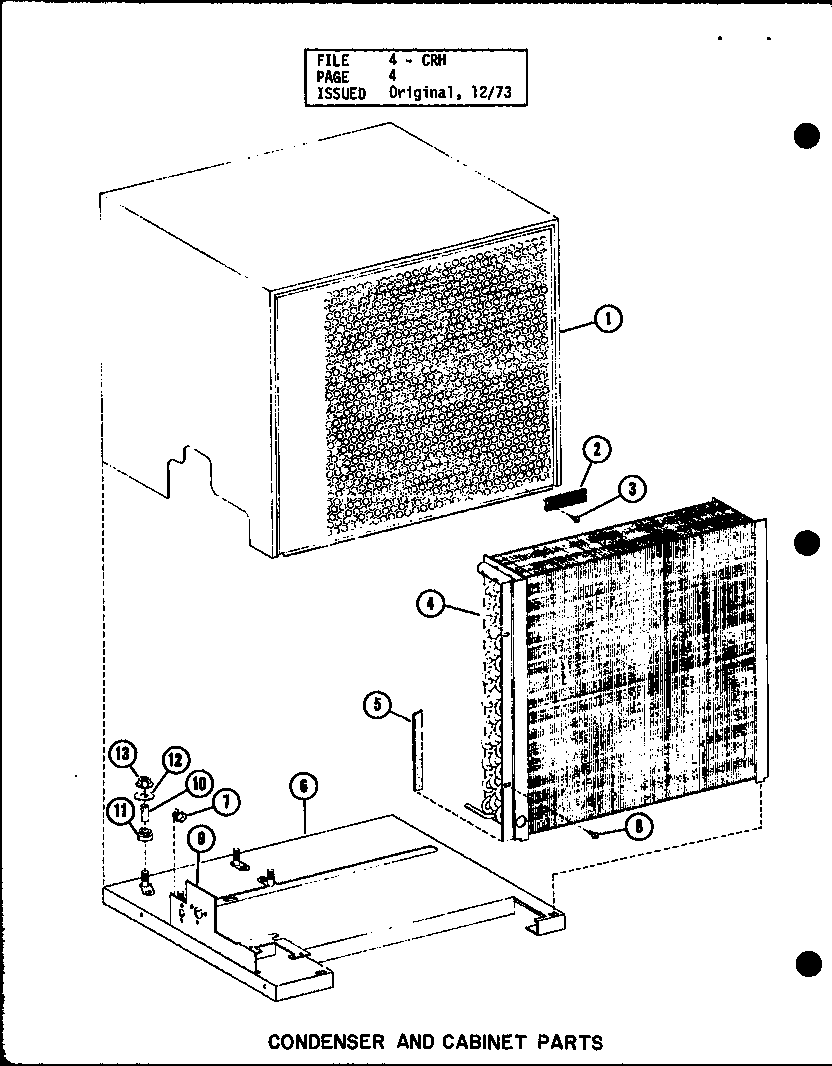

Condenser and cabinet parts diagram

Nut

Part #M0283610

The manufacturer no longer makes this part, and there's no substitute part

Relay Reversing Rbm 91-232016-23801, 2 Pole S.t. 24 V. C C5215803
#111

Control panel parts diagram

Relay reversing rbm 91-232016-23801, 2 pole s.t. 24 v. c

Part #C5215803

The manufacturer no longer makes this part, and there's no substitute part

Strainer B4769302
#42B

Compressor and tubing parts diagram

Strainer

Part #B4769302

The manufacturer no longer makes this part, and there's no substitute part

Line Discharge, Strainer To Reversing Valve A3317001
#43A

Compressor and tubing parts diagram

Line discharge, strainer to reversing valve

Part #A3317001

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Compressor Terminal Cover A4631401
#76B

Compressor and tubing parts diagram

Gasket, compressor terminal cover

Part #A4631401

The manufacturer no longer makes this part, and there's no substitute part
