Kenmore
Central Air Conditioner

Model # 25366900 Official Kenmore 230-v coldspot air conditioner

Here are the diagrams and repair parts for Official Kenmore 25366900 230-v coldspot air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Link 100365
#13

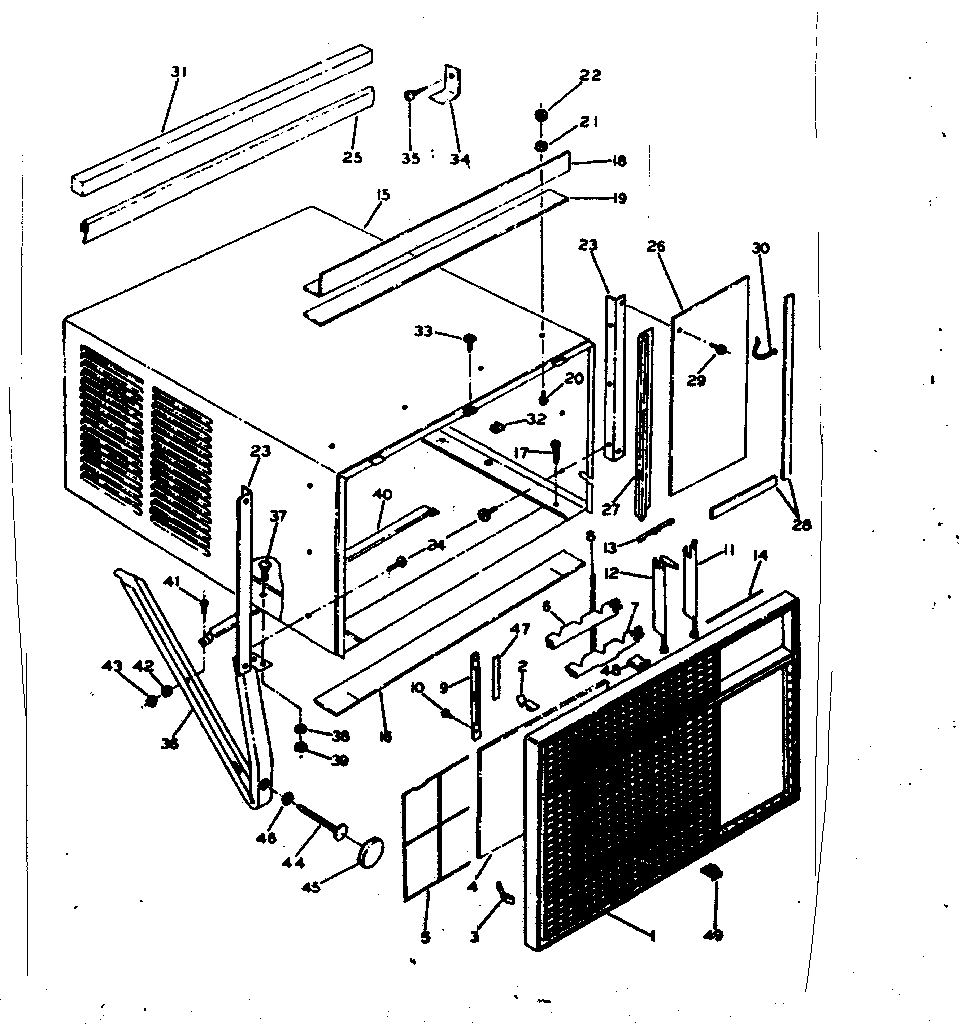

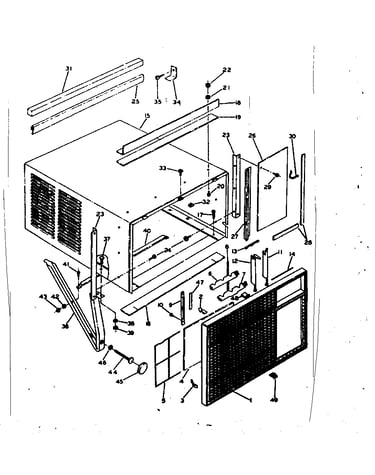

Cabinet & front parts diagram

Link

Part #100365

Replaced by #08047498

?
Manufacturer substitution
This part replaces 100365. Substitute parts can look different from the original.
This item is not returnable
$2.22
In Stock
Knob 95306
#23

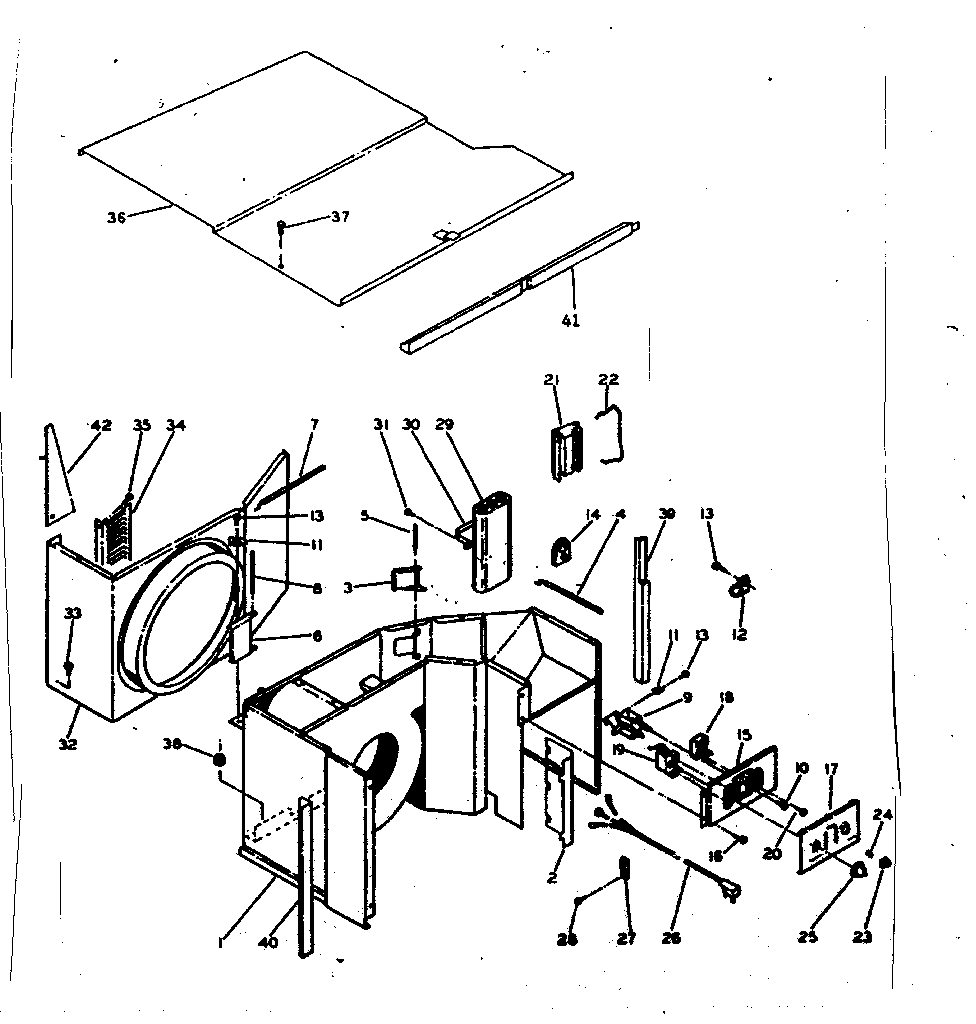

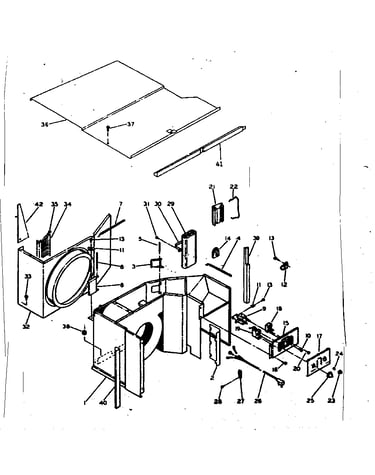

Electrical system & air handling parts diagram

Knob

Part #95306

The manufacturer no longer makes this part, and there's no substitute part

Compressor AHB257-10
#3

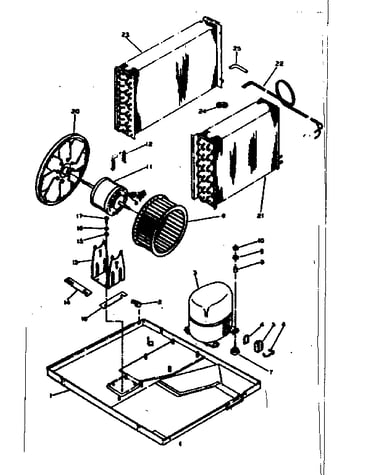

Refrigeration system & handling parts diagram

Compressor

Part #AHB257-10

The manufacturer no longer makes this part, and there's no substitute part

Clip 112571
#3

Cabinet & front parts diagram

Clip

Part #112571

The manufacturer no longer makes this part, and there's no substitute part

Louver 123305
#12

Cabinet & front parts diagram

Louver

Part #123305

The manufacturer no longer makes this part, and there's no substitute part

Transformer 132571

#NI

All parts diagram

Transformer

Part #132571

The manufacturer no longer makes this part, and there's no substitute part

Screw 100823
#24

Cabinet & front parts diagram

Screw

Part #100823

The manufacturer no longer makes this part, and there's no substitute part

Owners Parts List 135081

#NI

All parts diagram

Owners parts list

Part #135081

The manufacturer no longer makes this part, and there's no substitute part

Screw 99156
#28

Electrical system & air handling parts diagram

Screw

Part #99156

The manufacturer no longer makes this part, and there's no substitute part

Gasket 116604
#4

Refrigeration system & handling parts diagram

Gasket

Part #116604

The manufacturer no longer makes this part, and there's no substitute part
