GE
Countertop Microwave

Model # JES1400T02 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1400T02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Sw-secondary WB24X796
#1446

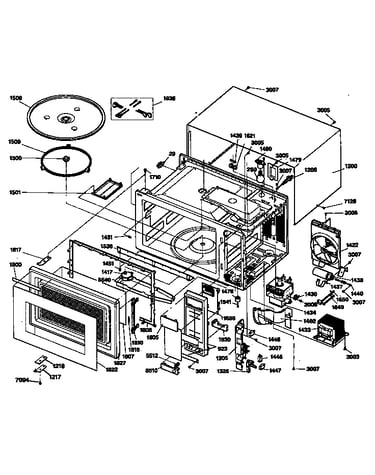

Microwave diagram

Sw-secondary

Part #WB24X796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Latch Switch WB24X5227
#1447

Microwave diagram

Latch switch

Part #WB24X5227

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5227. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Microwave High-voltage Diode WB27X608
#1440

Microwave diagram

Microwave high-voltage diode

Part #WB27X608

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X608. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
Mini Manual 31-1433

#NI

All parts diagram

Mini manual

Part #31-1433

$21.99
In Stock
Wiring Diagram 31-1433-A

#NI

All parts diagram

Wiring diagram

Part #31-1433-A

$21.99
In Stock
Control Panel WB7X1986
#923

Microwave diagram

Control panel

Part #WB7X1986

$66.49
In Stock
Use And Care Guide 49-8412

#NI

All parts diagram

Use and care guide

Part #49-8412

$8.49
In Stock
High-voltage Capacitor WB27X882
#1438

Microwave diagram

High-voltage capacitor

Part #WB27X882

Replaced by #WB27X10073

?
Manufacturer substitution
This part replaces WB27X882. Substitute parts can look different from the original.
$70.75 |
7% OFF Phone Price : $75.75
In Stock
Sc Washer WB1X1436
#3003

Microwave diagram

Sc washer

Part #WB1X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB1X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Magnetron WB27X764
#1434

Microwave diagram

Magnetron

Part #WB27X764

Replaced by #WB27X10249

?
Manufacturer substitution
This part replaces WB27X764. Substitute parts can look different from the original.
$261.55
In Stock
