Electric Line Trimmer

Model # 24085780 Official Craftsman cordless electric hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 24085780 cordless electric hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Switch Assembly 3935
#7

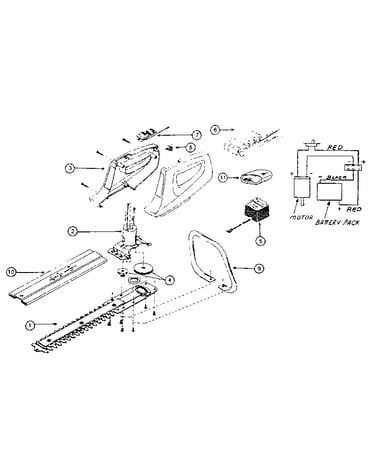

Unit parts diagram

Switch assembly

Part #3935

The manufacturer no longer makes this part, and there's no substitute part

Screw 4819

#NI

All parts diagram

Screw

Part #4819

The manufacturer no longer makes this part, and there's no substitute part

Screw 3610

#NI

All parts diagram

Screw

Part #3610

The manufacturer no longer makes this part, and there's no substitute part

Blade Bolt 2051

#NI

All parts diagram

Blade bolt

Part #2051

The manufacturer no longer makes this part, and there's no substitute part

Blade Guard 4022
#10

Unit parts diagram

Blade guard

Part #4022

The manufacturer no longer makes this part, and there's no substitute part

Handle Loop 3985
#9

Unit parts diagram

Handle loop

Part #3985

The manufacturer no longer makes this part, and there's no substitute part

Blade 4008
#1

Unit parts diagram

Blade

Part #4008

The manufacturer no longer makes this part, and there's no substitute part

Gear Train 4019
#4

Unit parts diagram

Gear train

Part #4019

The manufacturer no longer makes this part, and there's no substitute part

Foam Wrap 4023
#11

Unit parts diagram

Foam wrap

Part #4023

The manufacturer no longer makes this part, and there's no substitute part

Motor Base 3988
#2

Unit parts diagram

Motor base

Part #3988

The manufacturer no longer makes this part, and there's no substitute part
