Hampton Bay HAW-12CR1FD air conditioner

Hampton Bay HAW-12CR1FD air conditioner Parts

Here are the diagrams and repair parts for Hampton Bay HAW-12CR1FD air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for HAW-12CR1FD Air Conditioner

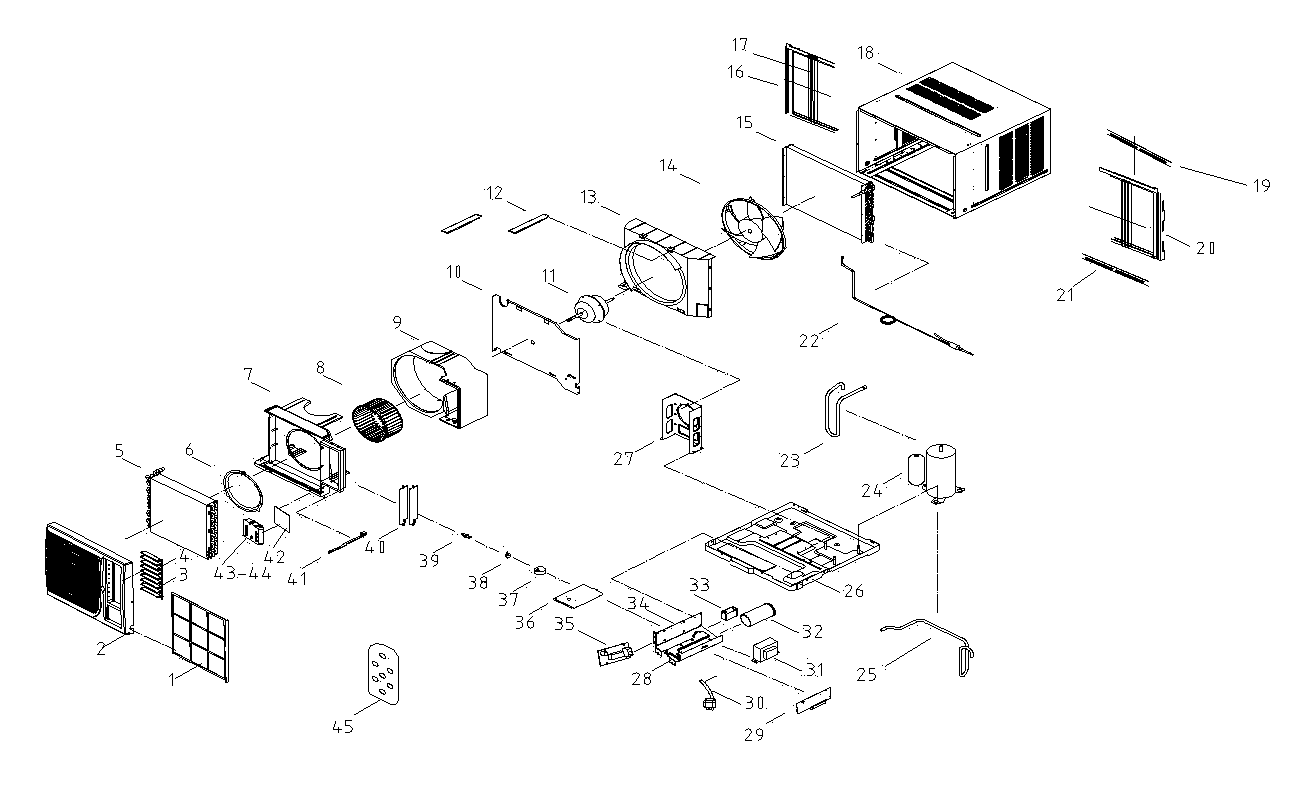

Cabinet parts diagram
Hisense Chassis
Part #8100238
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Panel Frame
Part #100469
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Electrical
Part #1005231
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Motor Base
Part #1108184
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Lnkage Rod
Part #120197
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Condenser
Part #1302384
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Discharge
Part #813031094
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Panel Frame
Part #100470
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Filter
Part #8110517
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Filler Panel
Part #180145
The manufacturer no longer makes this part, and there's no substitute part
