Jenn-Air M420 microwave Parts

Here are the diagrams and repair parts for Jenn-Air M420 microwave, as well as links to manuals and error code tables, if available.

Jenn-Air M420 microwave

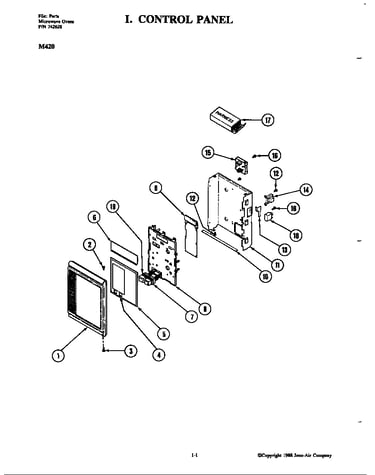

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for M420 Microwaves

  • Refrigerator Screw for Jenn-Air M420 - Part WP8281227

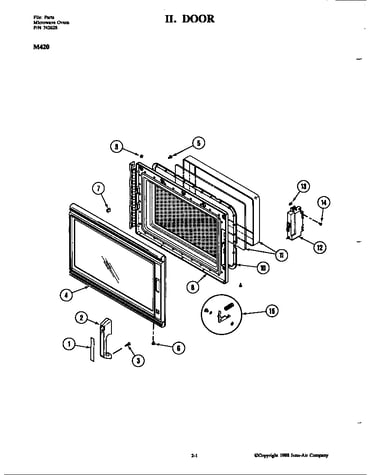

    Door diagram

    Screw

    Part #748025

    Replaced by #WP8281227

    Info Icon
    Manufacturer substitution
    This part replaces 748025. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.48
    10% OFF Phone Price : $10.48Info Icon
    Minus Item
    Qty
    Plus Item
  • .187 Dia Pus for Jenn-Air M420 - Part 5039-T

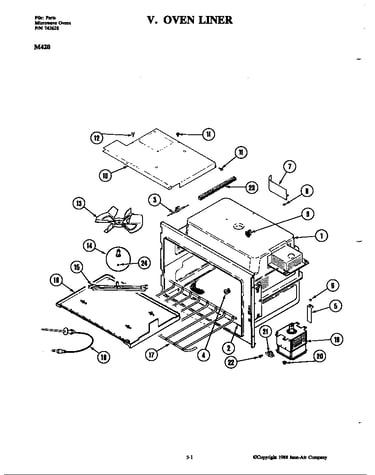

    Liner diagram

    Pop Rivet

    Part #748017

    Replaced by #5039-T

    Info Icon
    Manufacturer substitution
    This part replaces 748017. Substitute parts can look different from the original.
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Freezer Evaporator Mounting Screw for Jenn-Air M420 - Part WP3-24004-109

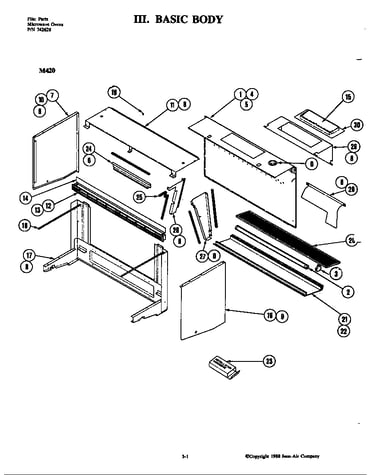

    Basic body diagram

    Grille Screw

    Part #748032

    Replaced by #WP3-24004-109

    Info Icon
    Manufacturer substitution
    This part replaces 748032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Nut for Jenn-Air M420 - Part M0282005

    Motor assy. diagram

    Nut

    Part #748014

    Replaced by #M0282005

    Info Icon
    Manufacturer substitution
    This part replaces 748014. Substitute parts can look different from the original.
    In Stock
    $30.77
    Minus Item
    Qty
    Plus Item
  • Fuse 15a 250 for Jenn-Air M420 - Part WPY01050009

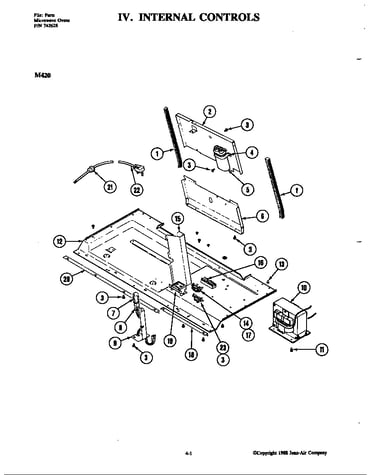

    Internal controls diagram

    Fuse

    Part #748083

    Replaced by #WPY01050009

    Info Icon
    Manufacturer substitution
    This part replaces 748083. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.35
    12% OFF Phone Price : $8.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Door Handle for Jenn-Air M420 - Part 748037

    Door diagram

    Door Handle

    Part #748037

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Grille for Jenn-Air M420 - Part 748106

    Basic body diagram

    Microwave Grille

    Part #748106

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal Block for Jenn-Air M420 - Part 748090

    Internal controls diagram

    Terminal Block

    Part #748090

    The manufacturer no longer makes this part, and there's no substitute part

  • Filter for Jenn-Air M420 - Part 748034

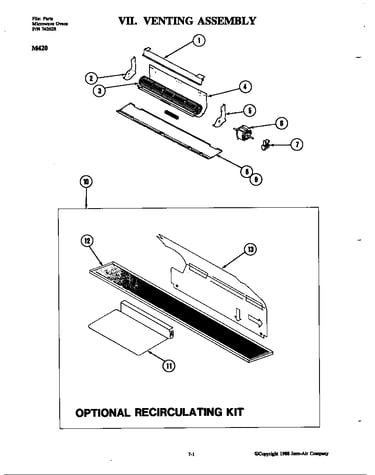

    Venting assembly diagram

    Filter

    Part #748034

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch Module for Jenn-Air M420 - Part 748043

    Door diagram

    Switch Module

    Part #748043

    The manufacturer no longer makes this part, and there's no substitute part
