Sony STR-DH520 audio receiver Parts

Here are the diagrams and repair parts for Sony STR-DH520 audio receiver, as well as links to manuals and error code tables, if available.

Sony STR-DH520 audio receiver
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for STR-DH520 Audio Equipment

  • 3x8mm T Bind for Sony STR-DH520 - Part 768564671

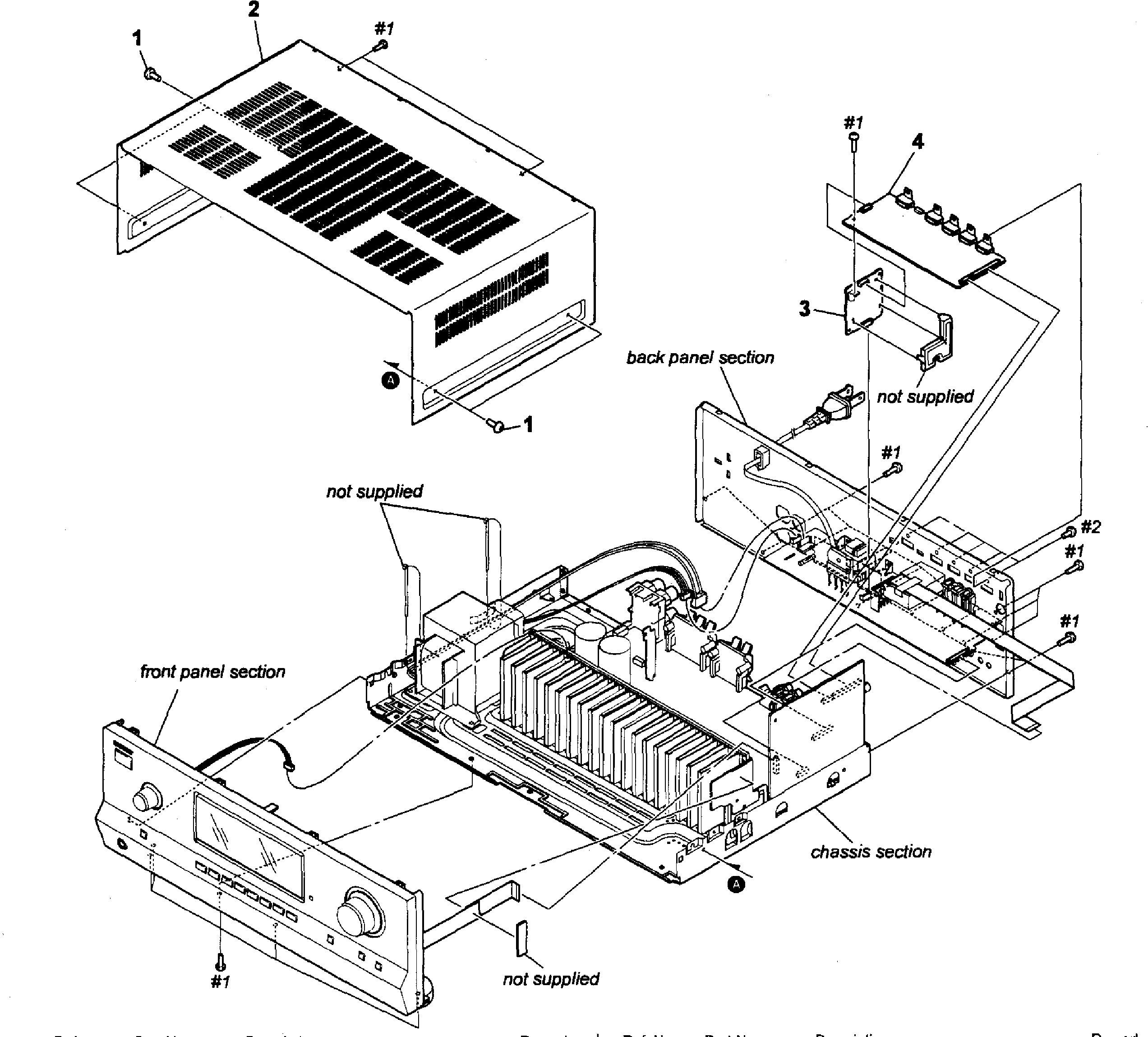

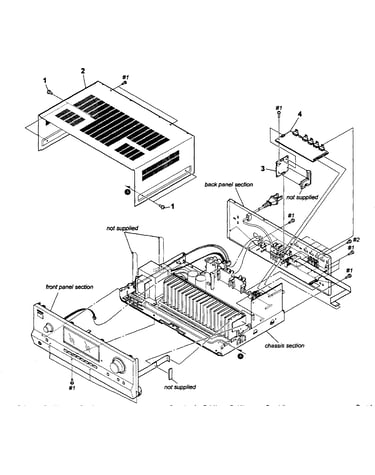

    Cabinet parts diagram

    3x8mm T Bind

    Part #768564671

    The manufacturer no longer makes this part, and there's no substitute part

  • Cushion 8x for Sony STR-DH520 - Part 497735801

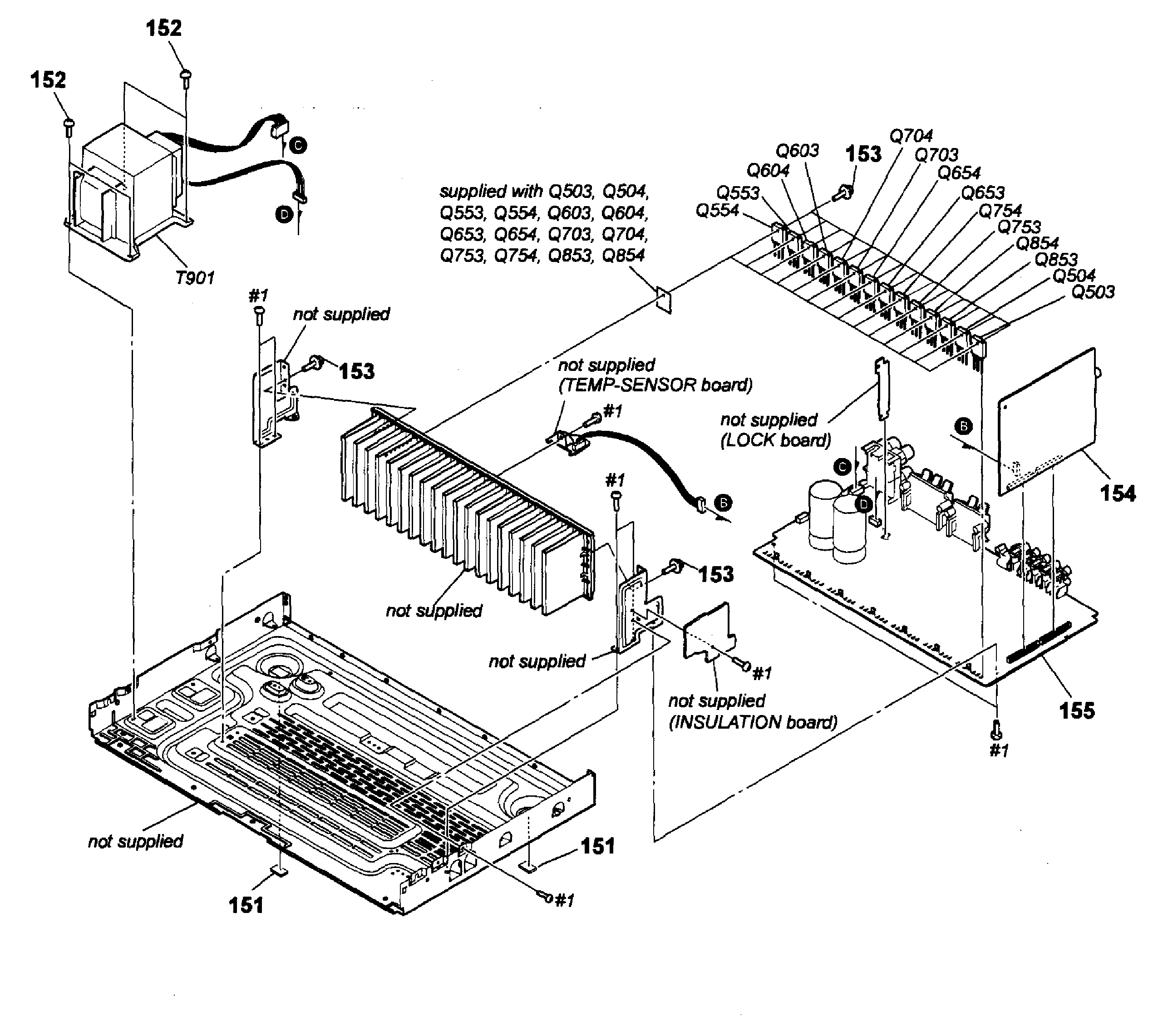

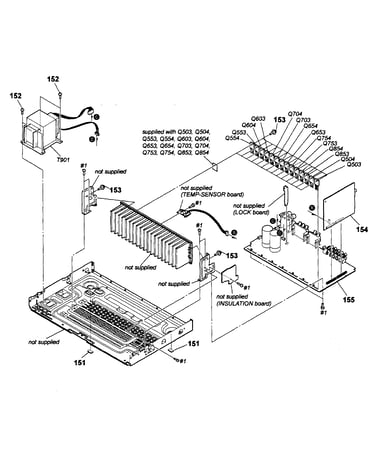

    Chassis diagram

    Cushion 8x

    Part #497735801

    The manufacturer no longer makes this part, and there's no substitute part

  • Loop Antenna for Sony STR-DH520 - Part 150137412

    Cabinet parts diagram

    Loop Antenna

    Part #150137412

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb for Sony STR-DH520 - Part A1795721A

    Chassis diagram

    Pcb

    Part #A1795721A

    The manufacturer no longer makes this part, and there's no substitute part

  • Audio/video Receiver Hdmi Board for Sony STR-DH520 - Part A1791327A

    Cabinet parts diagram

    Audio/video Receiver Hdmi Board

    Part #A1791327A

    The manufacturer no longer makes this part, and there's no substitute part

  • Main Pcb for Sony STR-DH520 - Part A1795711A

    Chassis diagram

    Main Pcb

    Part #A1795711A

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire15core for Sony STR-DH520 - Part 182834151

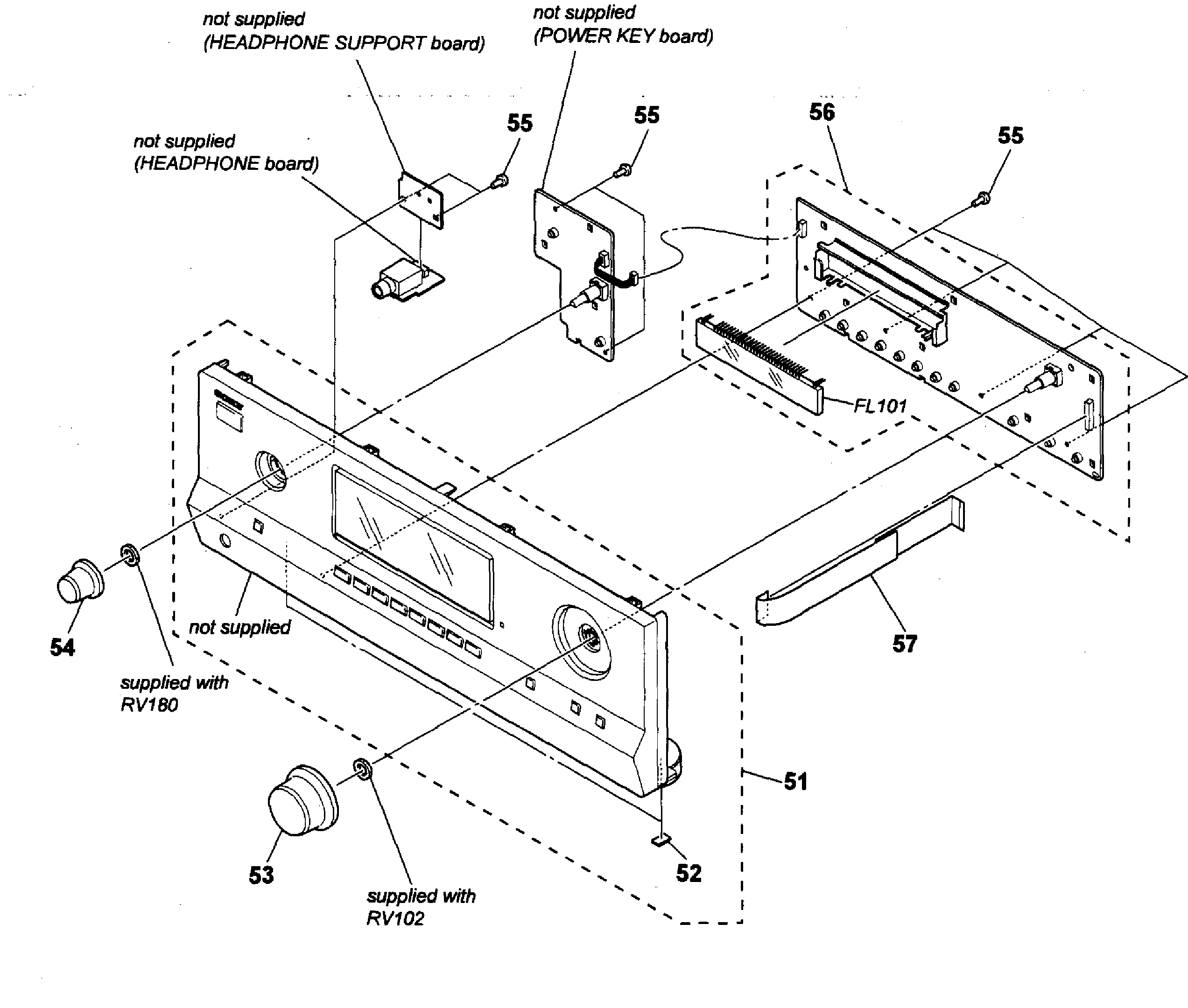

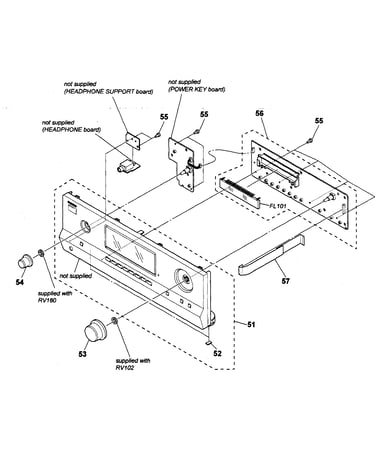

    Front panel diagram

    Wire15core

    Part #182834151

    The manufacturer no longer makes this part, and there's no substitute part

  • Audio/video Receiver Input Knob for Sony STR-DH520 - Part 412432201

    Front panel diagram

    Audio/video Receiver Input Knob

    Part #412432201

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Sony STR-DH520 - Part 416084531

    Cabinet parts diagram

    Cabinet

    Part #416084531

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb,video for Sony STR-DH520 - Part A1795713A

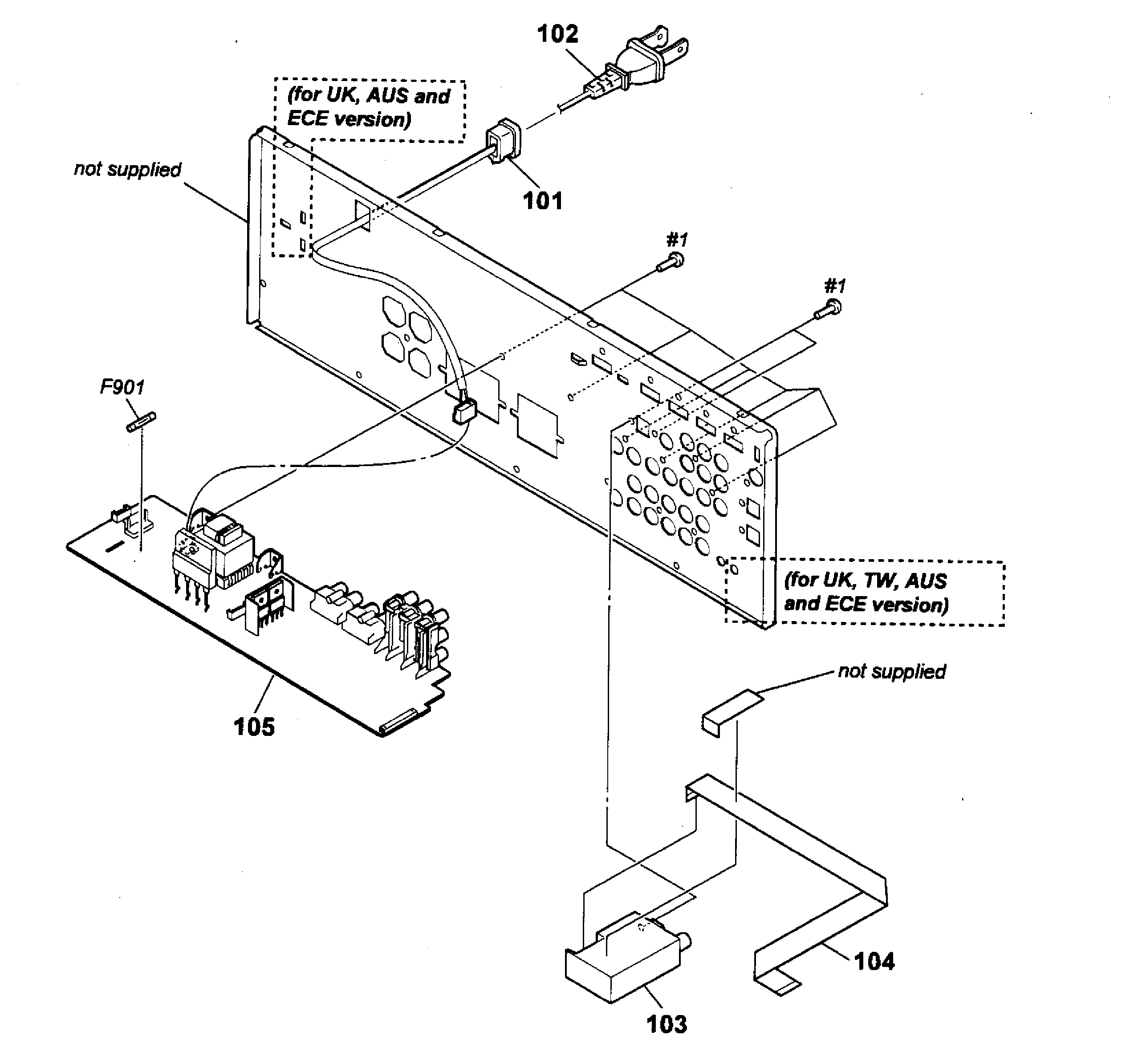

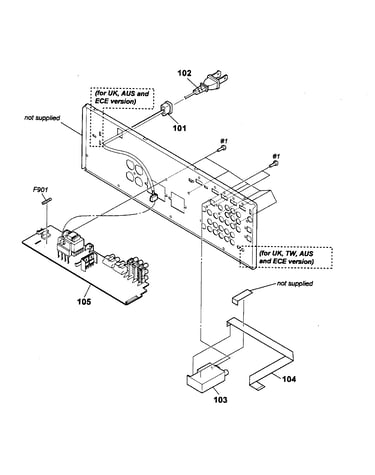

    Back panel diagram

    Pcb,video

    Part #A1795713A

    The manufacturer no longer makes this part, and there's no substitute part
