Craftsman
Line Trimmer

Model # 271281512 Official Craftsman brush cutter

Here are the diagrams and repair parts for Official Craftsman 271281512 brush cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

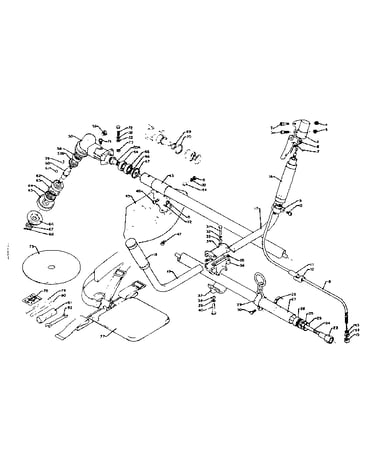

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Spark Plug 159010-00330
#55

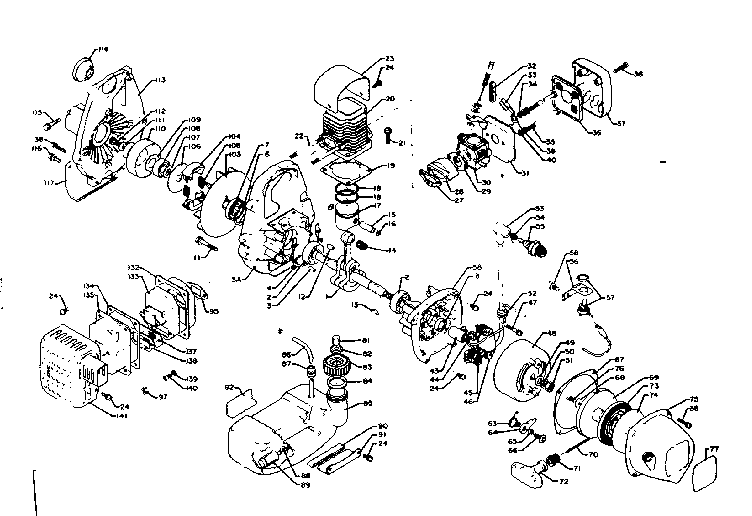

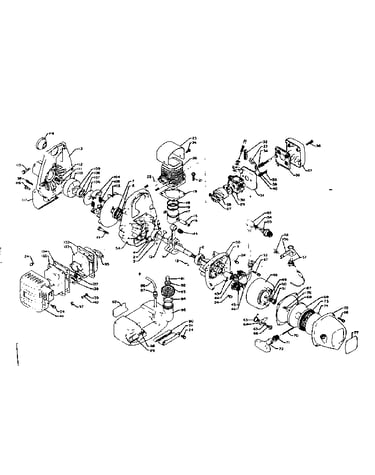

Power head, fuel tank, recoil starter and clutch diagram

Spark plug

Part #159010-00330

Replaced by #CJ8

?
Manufacturer substitution
This part replaces 159010-00330. Substitute parts can look different from the original.
This item is not returnable
$2.15 |
55% OFF MSRP : $4.80
In Stock
Pump Gasket 123125-03930
#27

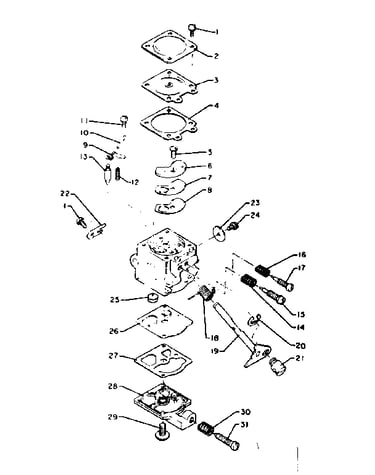

Carburetor diagram

Pump gasket

Part #123125-03930

The manufacturer no longer makes this part, and there's no substitute part

Spring 123121-03930
#16

Carburetor diagram

Spring

Part #123121-03930

The manufacturer no longer makes this part, and there's no substitute part

Gasket 123140-03930
#4

Carburetor diagram

Gasket

Part #123140-03930

The manufacturer no longer makes this part, and there's no substitute part

Gasket 123164-03930
#8

Carburetor diagram

Gasket

Part #123164-03930

The manufacturer no longer makes this part, and there's no substitute part

Screw 123167-05230
#5

Carburetor diagram

Screw

Part #123167-05230

The manufacturer no longer makes this part, and there's no substitute part

Screw 123139-03930
#11

Carburetor diagram

Screw

Part #123139-03930

The manufacturer no longer makes this part, and there's no substitute part

Packing 100242-04630
#4

Power head, fuel tank, recoil starter and clutch diagram

Packing

Part #100242-04630

The manufacturer no longer makes this part, and there's no substitute part

Valve Diaphm 123165-03930
#7

Carburetor diagram

Valve diaphm

Part #123165-03930

The manufacturer no longer makes this part, and there's no substitute part

Packing 101010-04630
#19

Power head, fuel tank, recoil starter and clutch diagram

Packing

Part #101010-04630

The manufacturer no longer makes this part, and there's no substitute part
