Maytag
Gas Water Heater

Model # HJ650PBDVTCGA Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HJ650PBDVTCGA water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Ve Terminal 66001255
#1

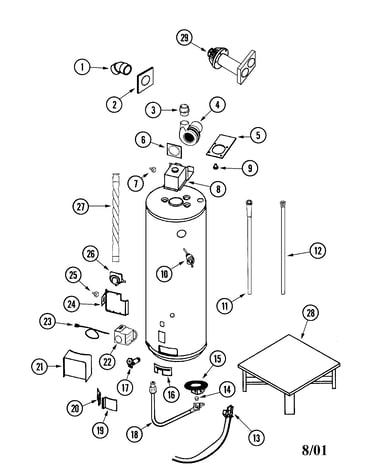

Body diagram

Ve terminal

Part #66001255

The manufacturer no longer makes this part, and there's no substitute part

Access Door 66001206
#20

Body diagram

Access door

Part #66001206

The manufacturer no longer makes this part, and there's no substitute part

Stand, Water 66001243
#28

Body diagram

Stand, water

Part #66001243

The manufacturer no longer makes this part, and there's no substitute part

Burner Orifice 66001025
#14

Body diagram

Burner orifice

Part #66001025

The manufacturer no longer makes this part, and there's no substitute part

On O Switch 66001247
#25

Body diagram

On o switch

Part #66001247

The manufacturer no longer makes this part, and there's no substitute part

Vent Hood 66001292
#8

Body diagram

Vent hood

Part #66001292

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Temperature And Pressure Relief Valve 66001216
#10

Body diagram

Water heater temperature and pressure relief valve

Part #66001216

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 66001295
#24

Body diagram

Mounting bracket

Part #66001295

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 66001189
#12

Body diagram

Anode rod

Part #66001189

The manufacturer no longer makes this part, and there's no substitute part

Inner Door 66001029
#16

Body diagram

Inner door

Part #66001029

The manufacturer no longer makes this part, and there's no substitute part
