Model # 4208 Official IBM computer printer

Here are the diagrams and repair parts for Official IBM 4208 computer printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

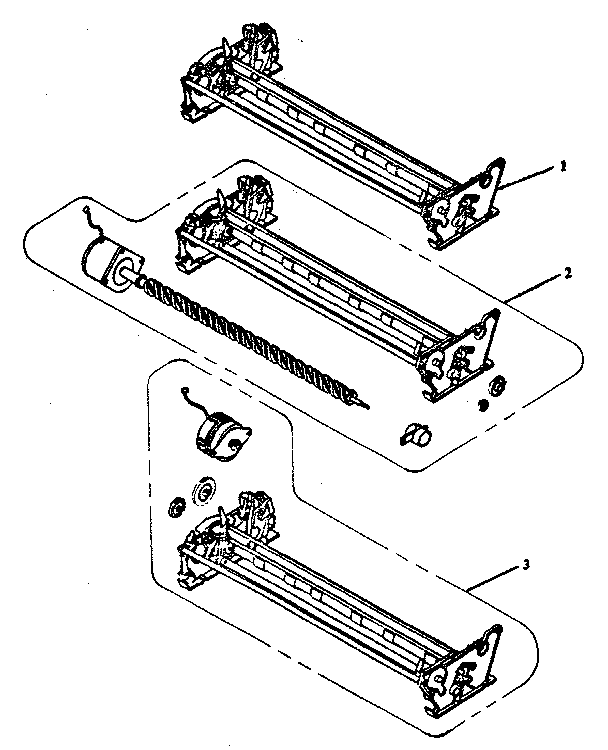

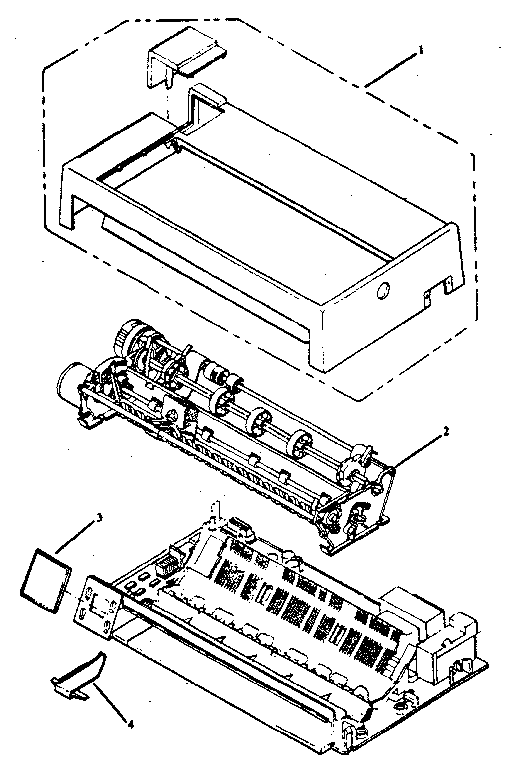

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

End-of-forms Sensing Lever 64X7723
#12

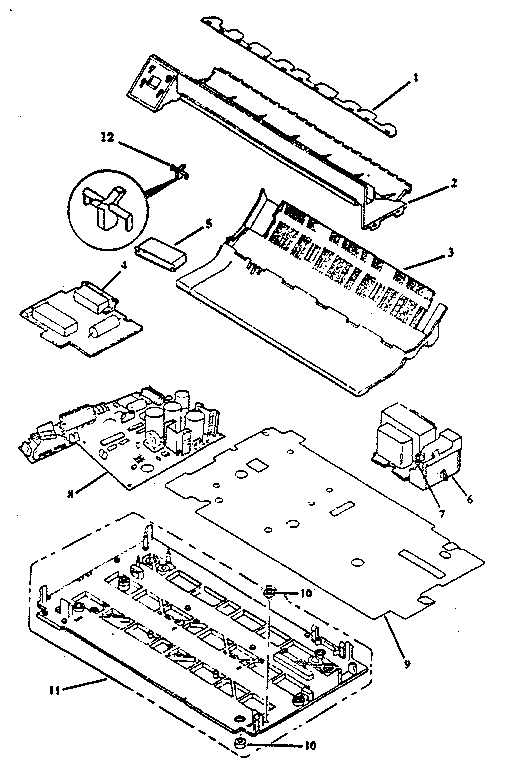

Base assembly diagram

End-of-forms sensing lever

Part #64X7723

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Drive Gears 6185882
#8

Pinfeed wheel assembly diagram

Ribbon drive gears

Part #6185882

The manufacturer no longer makes this part, and there's no substitute part

Main Access Cover 94X5956
#1

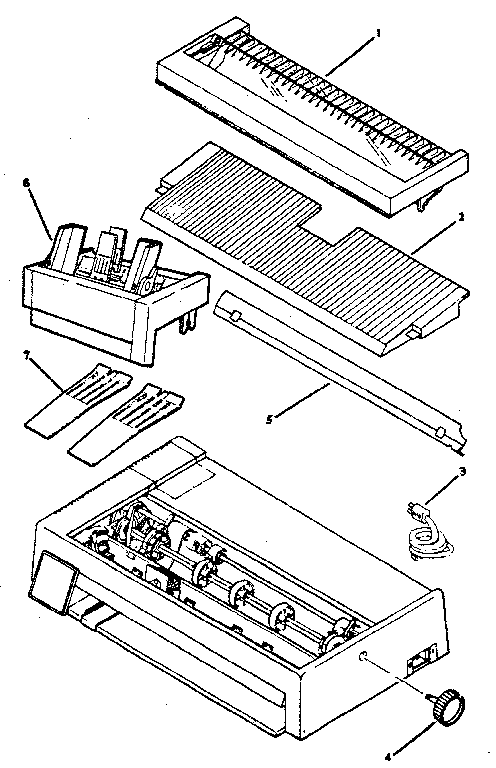

Replacement parts diagram

Main access cover

Part #94X5956

The manufacturer no longer makes this part, and there's no substitute part

Pinfeed Wheel Assembly 64X7785
#1

Pinfeed wheel assembly diagram

Pinfeed wheel assembly

Part #64X7785

The manufacturer no longer makes this part, and there's no substitute part

Card Cable Clip 94X5905
#10

Pinfeed wheel assembly diagram

Card cable clip

Part #94X5905

The manufacturer no longer makes this part, and there's no substitute part

Ground Shield 64X7783
#9

Base assembly diagram

Ground shield

Part #64X7783

The manufacturer no longer makes this part, and there's no substitute part

Sheet Feeder 87X9587
#6

Replacement parts diagram

Sheet feeder

Part #87X9587

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Supply (120 V Ac, 60 Hz) 94X5977
#6

Base assembly diagram

Ac power supply (120 v ac, 60 hz)

Part #94X5977

The manufacturer no longer makes this part, and there's no substitute part

Printed Circuit Board (120 V Ac, 60 Hz) Includes Printed Circuit Board, Card Cable, And Card Cable Clip. 94X5962
#8

Base assembly diagram

Printed circuit board (120 v ac, 60 hz) includes printed circuit board, card cable, and card cable clip.

Part #94X5962

The manufacturer no longer makes this part, and there's no substitute part

Continuous Form Guide 64X7774
#2

Replacement parts diagram

Continuous form guide

Part #64X7774

The manufacturer no longer makes this part, and there's no substitute part
