Kenmore 2538711411 air conditioner Parts
Here are the diagrams and repair parts for Kenmore 2538711411 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
By Part

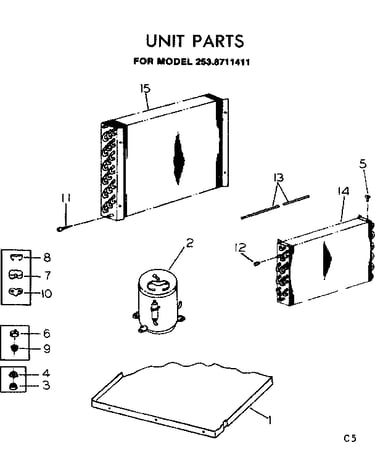

SELECT DIAGRAM
Browse Parts for 2538711411 Air Conditioner

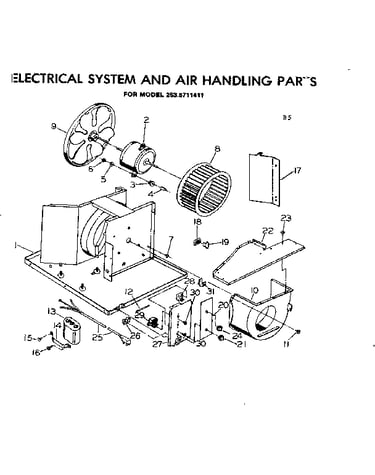

Electrical system & air handling parts diagram
Tube
In Stock$1805.50
Qty

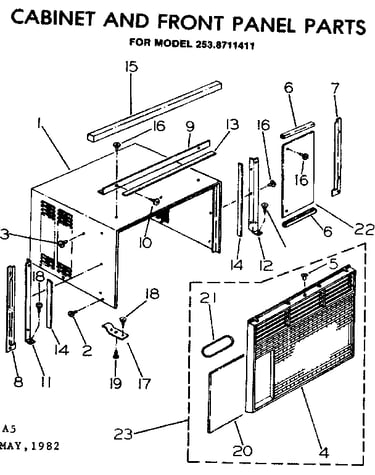

Cabinet and front panel parts diagram
Window Panel
Part #149202-10Replaced by #5300100078
Manufacturer substitutionThis part replaces 149202-10. Substitute parts can look different from the original.In Stock$54.32QtyCabinet and front panel parts diagram
Bracket
Part #513429Replaced by #5300135987
Manufacturer substitutionThis part replaces 513429. Substitute parts can look different from the original.In Stock$49.88QtyElectrical system & air handling parts diagram
Screw
Part #500638Replaced by #5303206864
Manufacturer substitutionThis part replaces 500638. Substitute parts can look different from the original.In Stock$28.46QtyCabinet and front panel parts diagram
Fornt Asm
Part #509023Replaced by #5300509023
Manufacturer substitutionThis part replaces 509023. Substitute parts can look different from the original.In Stock$128.30QtyCabinet and front panel parts diagram
Screw
Part #509750Replaced by #5308047555
Manufacturer substitutionThis part replaces 509750. Substitute parts can look different from the original.In Stock$25.17QtyElectrical system & air handling parts diagram
Nut
Part #500444Replaced by #5303311307
Manufacturer substitutionThis part replaces 500444. Substitute parts can look different from the original.In Stock$33.88QtyElectrical system & air handling parts diagram
Strap
Part #511947Replaced by #5308047452
Manufacturer substitutionThis part replaces 511947. Substitute parts can look different from the original.In Stock$27.17QtyElectrical system & air handling parts diagram
Retainer
Part #136663Replaced by #5300136663
Manufacturer substitutionThis part replaces 136663. Substitute parts can look different from the original.In Stock$25.15QtyElectrical system & air handling parts diagram
Grommet
Part #119108Replaced by #5308047501
Manufacturer substitutionThis part replaces 119108. Substitute parts can look different from the original.In Stock$36.67Qty
