Kenmore
Central Air Conditioner

Model # 867816862 Official Kenmore air conditioner condensing unit

Here are the diagrams and repair parts for Official Kenmore 867816862 air conditioner condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Motor 94896
#30

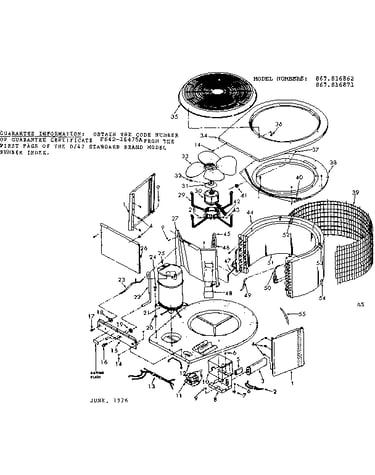

Unit parts diagram

Motor

Part #94896

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 94896. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Grille 702472
#35

Unit parts diagram

Grille

Part #702472

Replaced by #512848

?
Manufacturer substitution
This part replaces 702472. Substitute parts can look different from the original.
$164.46 |
6% OFF Phone Price : $174.46
In Stock
Capacitor 94149
#5

Unit parts diagram

Capacitor

Part #94149

Replaced by #12005

?
Manufacturer substitution
This part replaces 94149. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Compressor 703835
#25A

Unit parts diagram

Compressor

Part #703835

The manufacturer no longer makes this part, and there's no substitute part

Nut 96540
#41

Unit parts diagram

Nut

Part #96540

The manufacturer no longer makes this part, and there's no substitute part

Heater 701327
#21A

Unit parts diagram

Heater

Part #701327

Replaced by #1053477

?
Manufacturer substitution
This part replaces 701327. Substitute parts can look different from the original.
$152.12
In Stock
Capacitor 95411
#3B

Unit parts diagram

Capacitor

Part #95411

The manufacturer no longer makes this part, and there's no substitute part

Start Kit SKTDC-4248

#NI

All parts diagram

Start kit

Part #SKTDC-4248

The manufacturer no longer makes this part, and there's no substitute part

Screw 85790
#9

Unit parts diagram

Screw

Part #85790

The manufacturer no longer makes this part, and there's no substitute part

Start Kit SKTDT-0042

#NI

All parts diagram

Start kit

Part #SKTDT-0042

The manufacturer no longer makes this part, and there's no substitute part
