Model # FJ180V-BS05 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki FJ180V-BS05 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

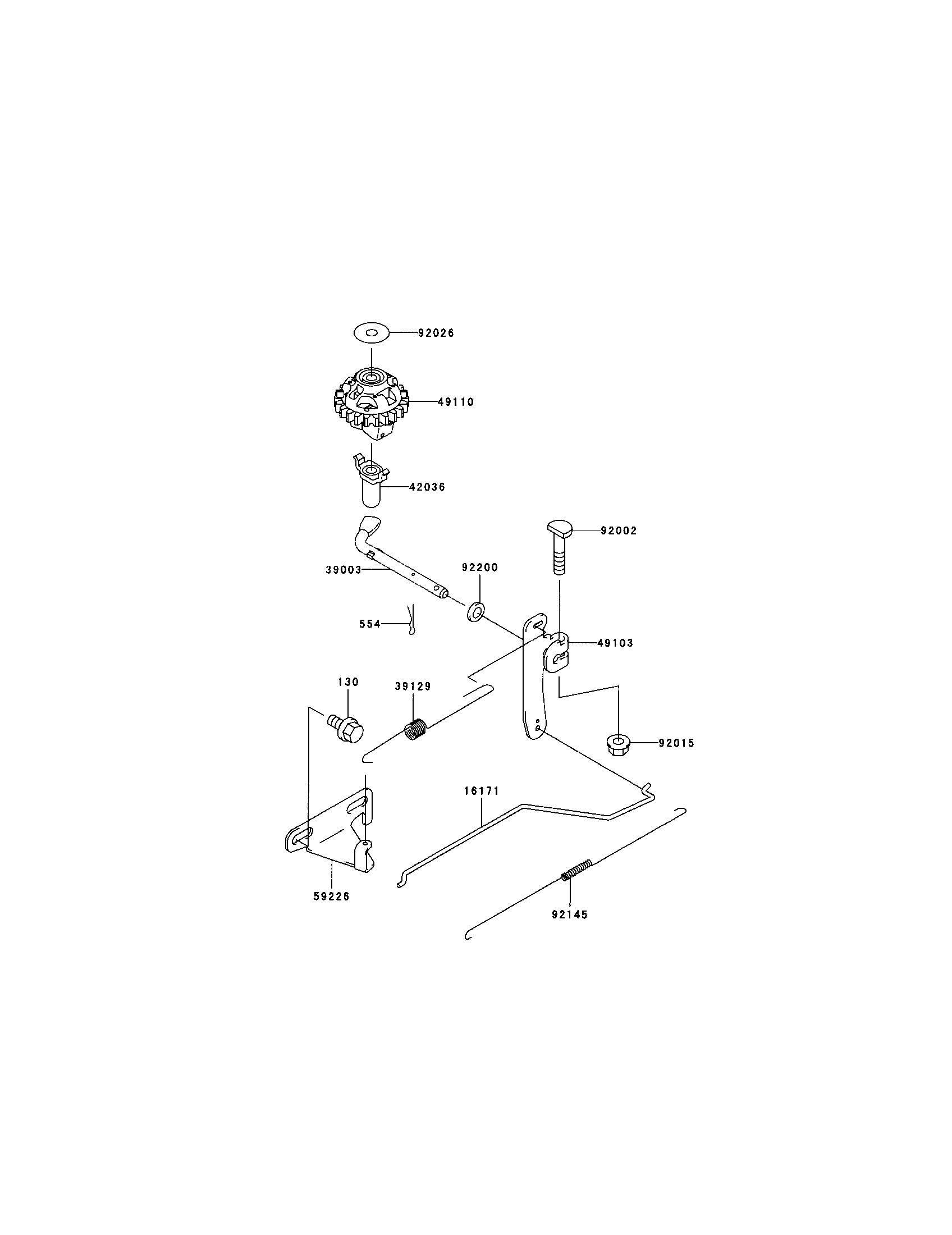

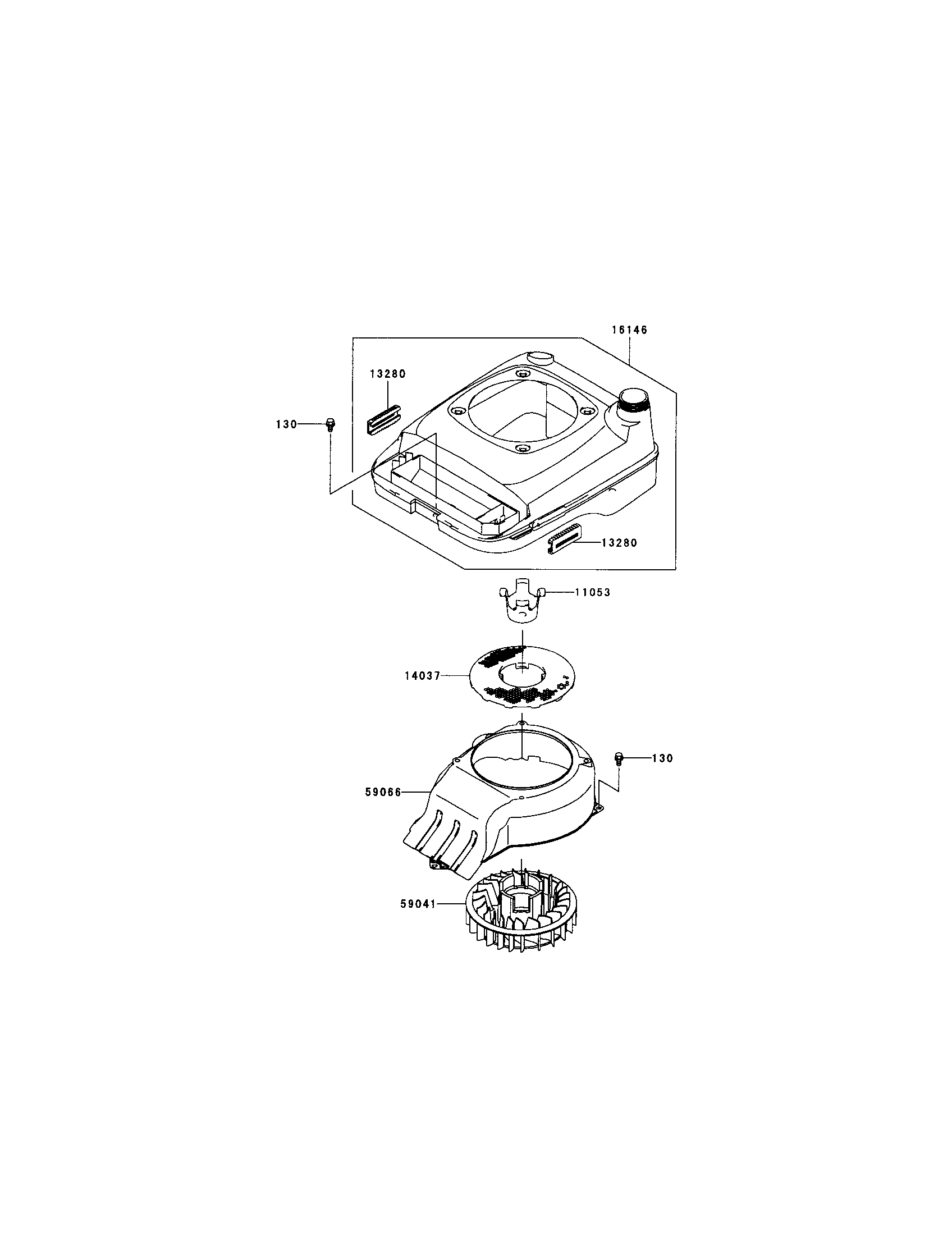

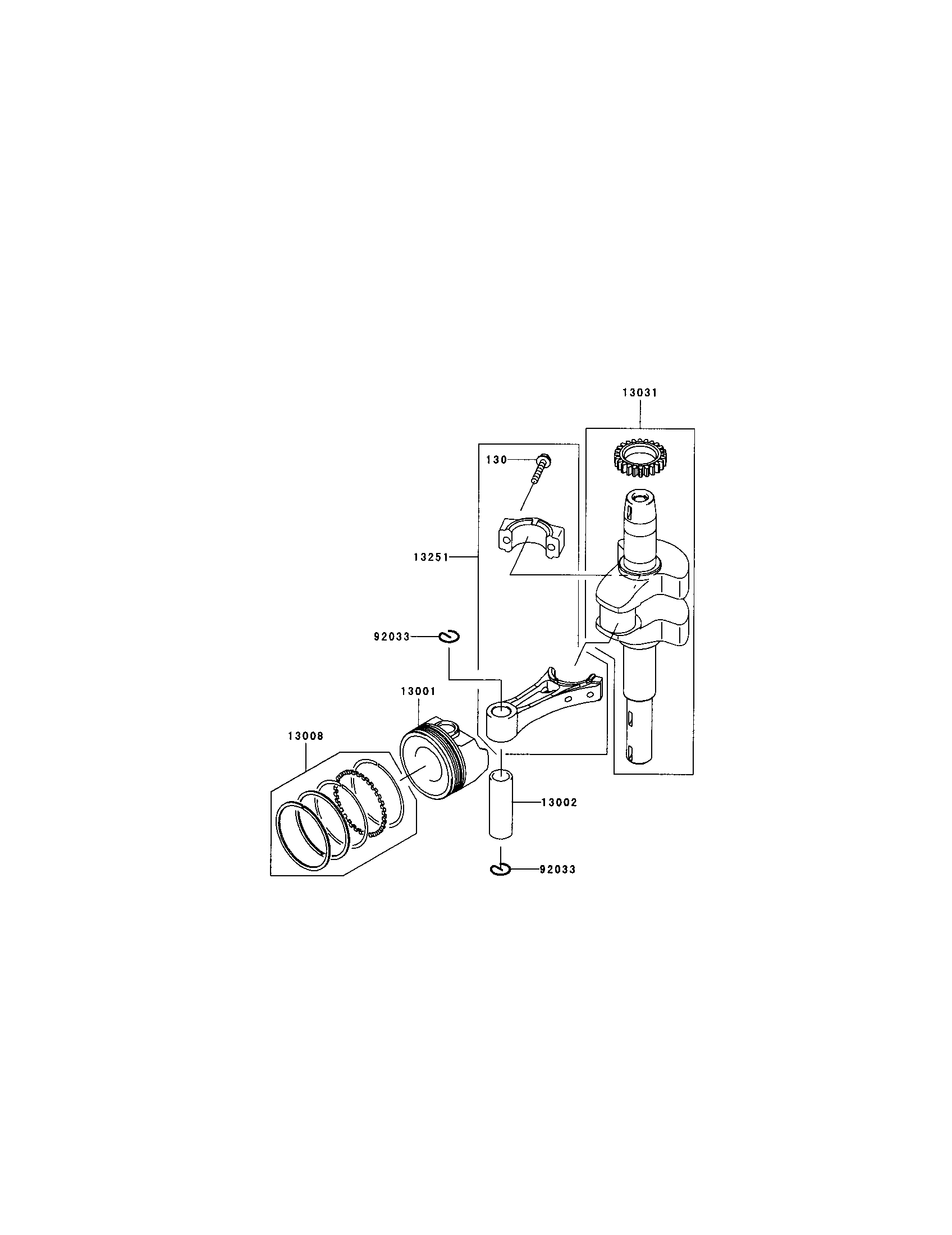

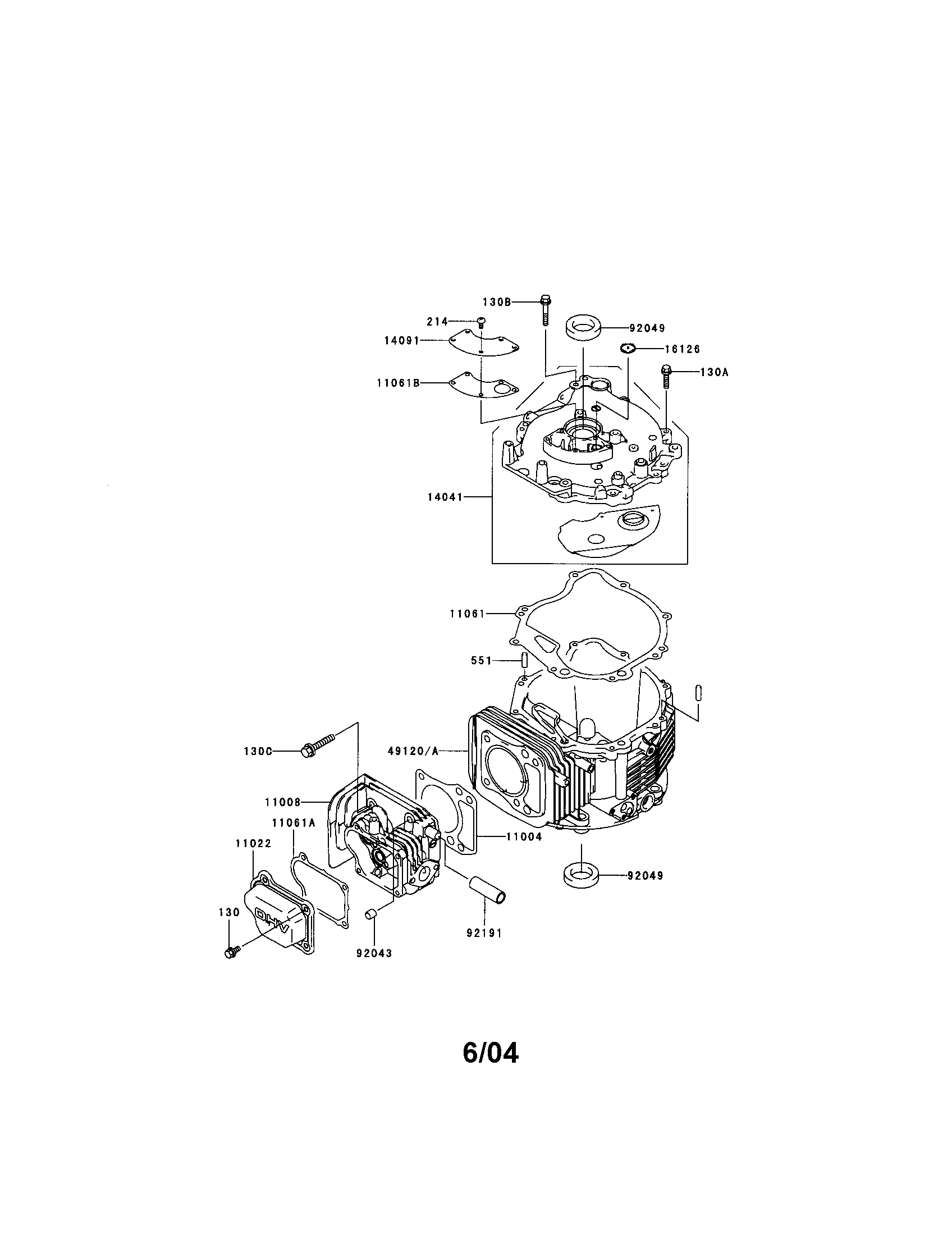

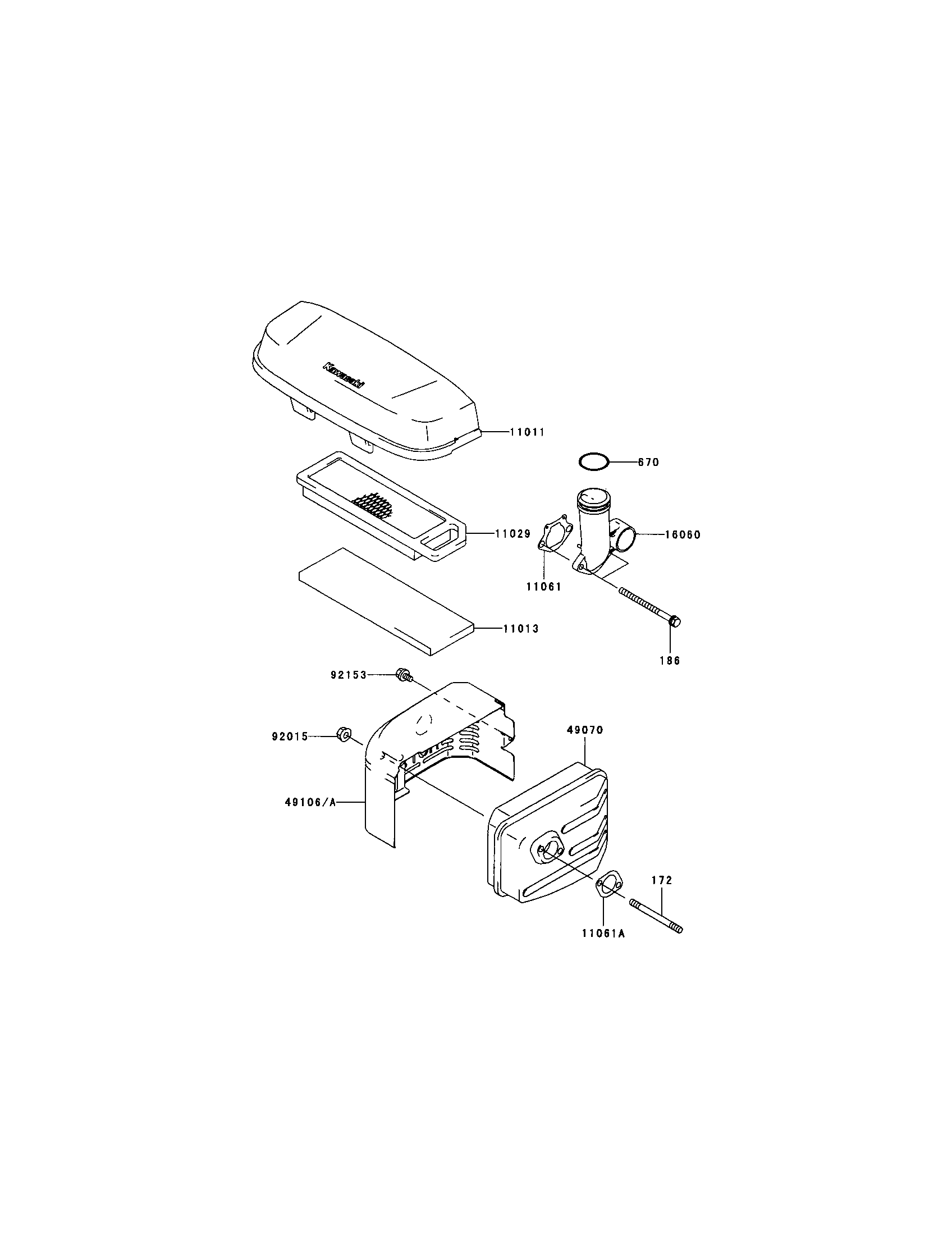

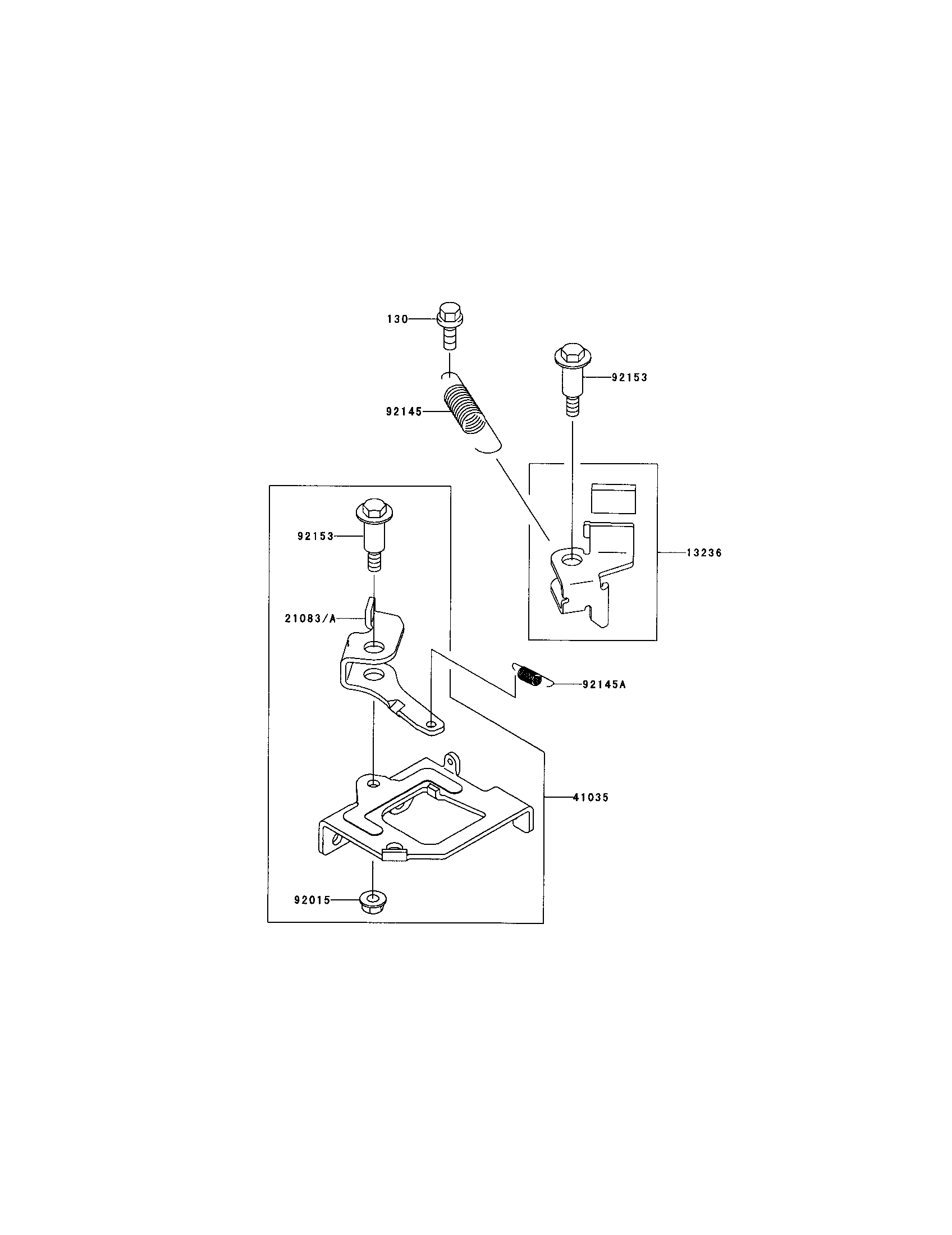

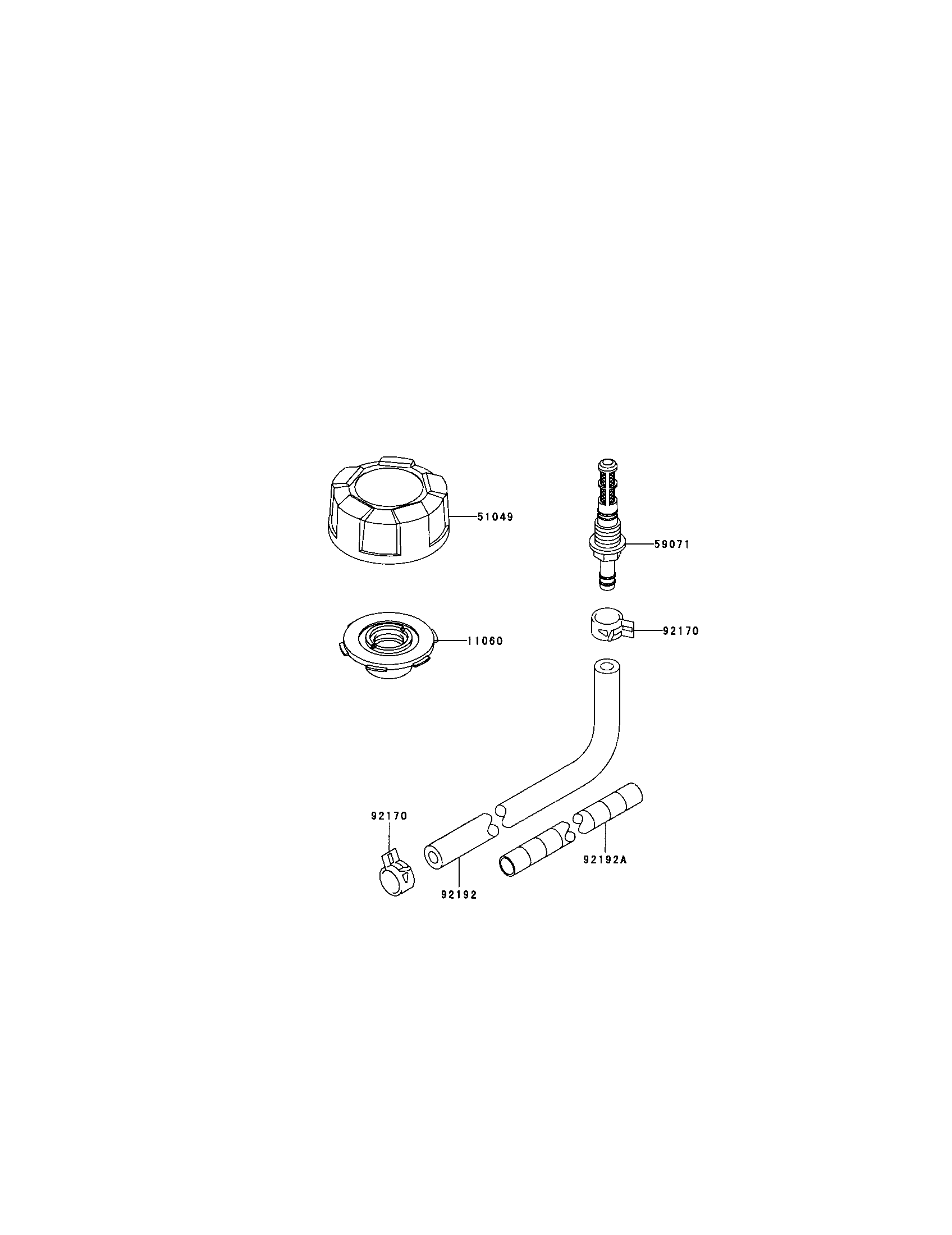

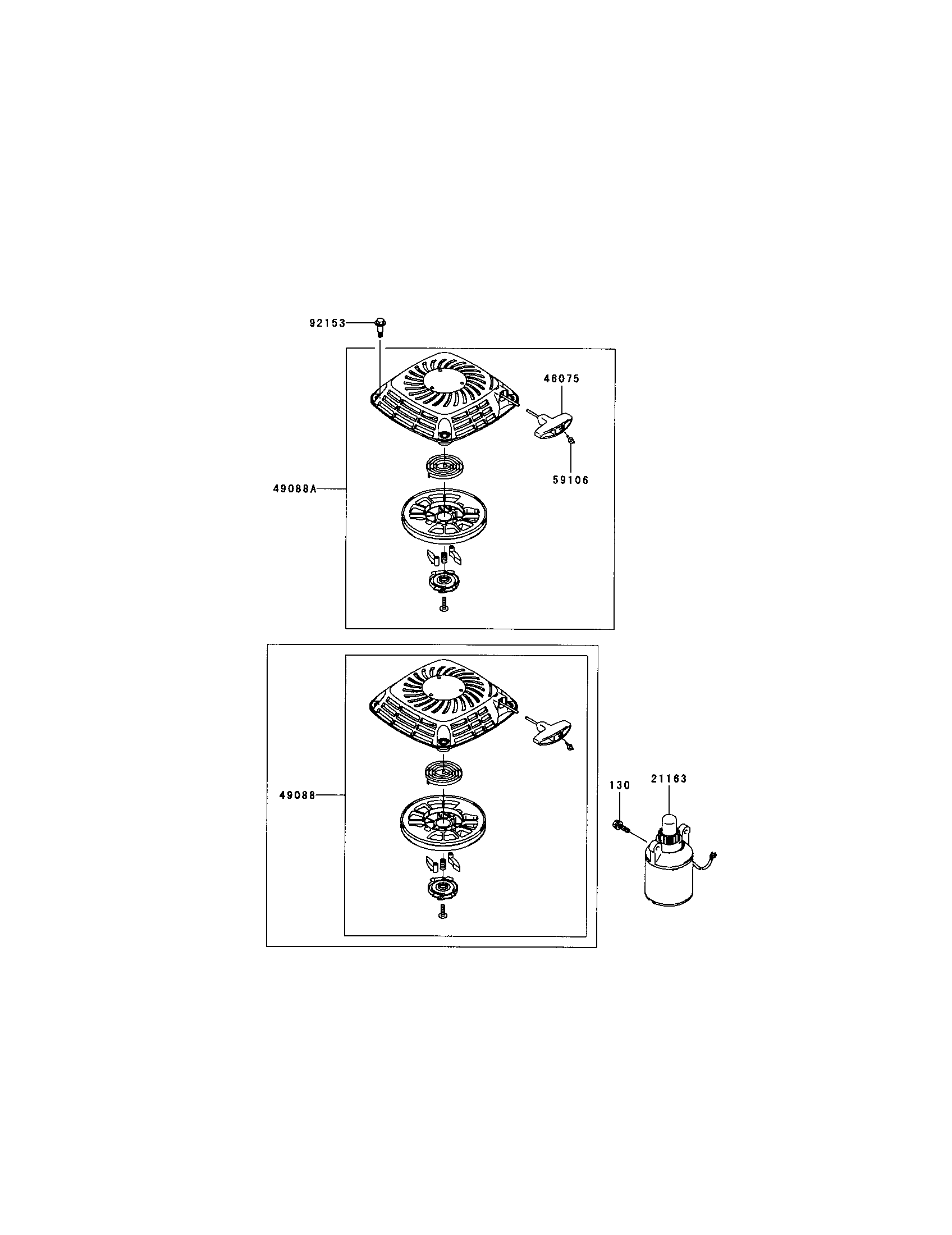

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Lawn & Garden Equipment Engine Carburetor Primer (replaces 49043-7002) KM-49043-7002
#49043

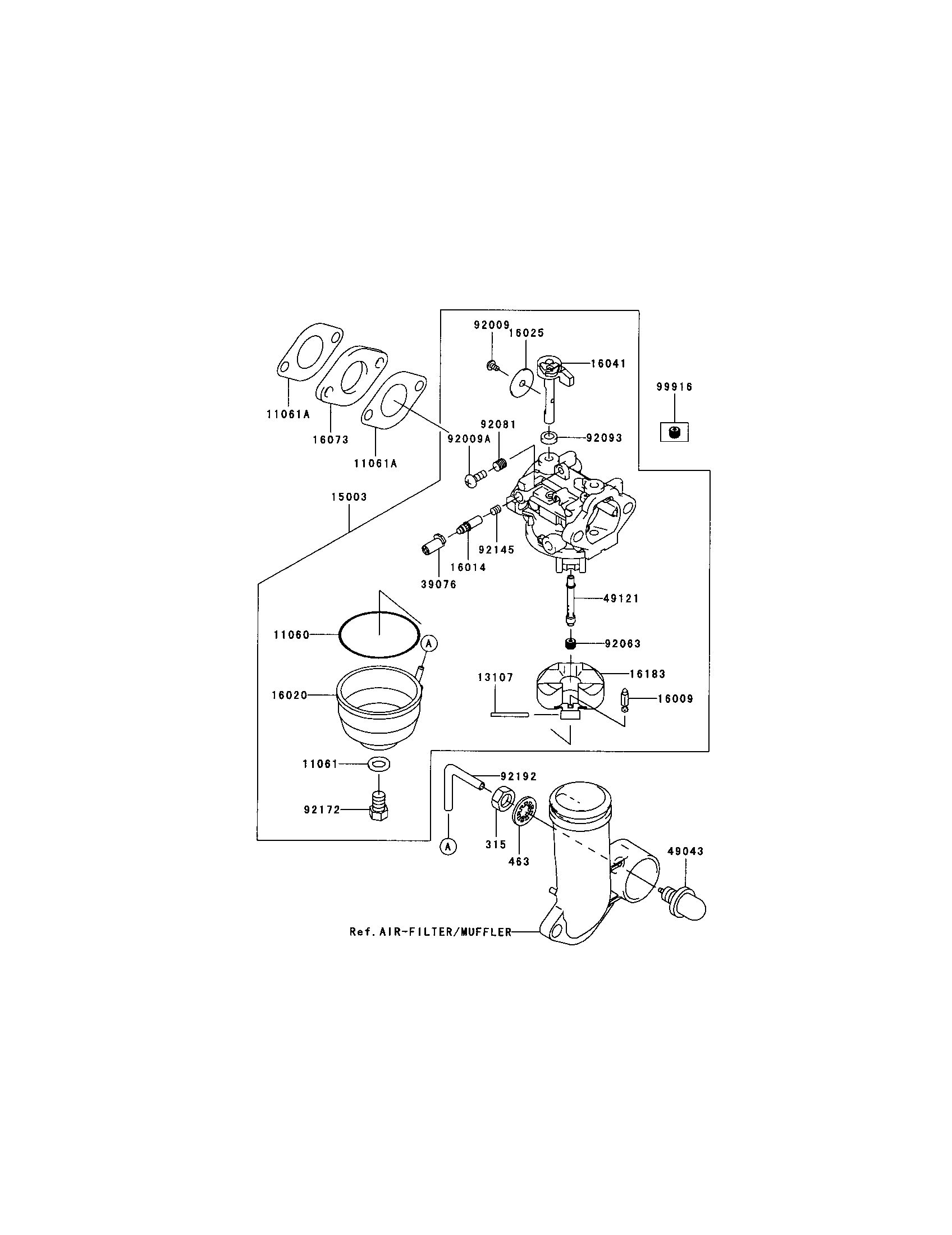

Carburetor diagram

Lawn & garden equipment engine carburetor primer (replaces 49043-7002)

Part #KM-49043-7002

$16.86
In Stock
Collet KM-12011-2056
#12011

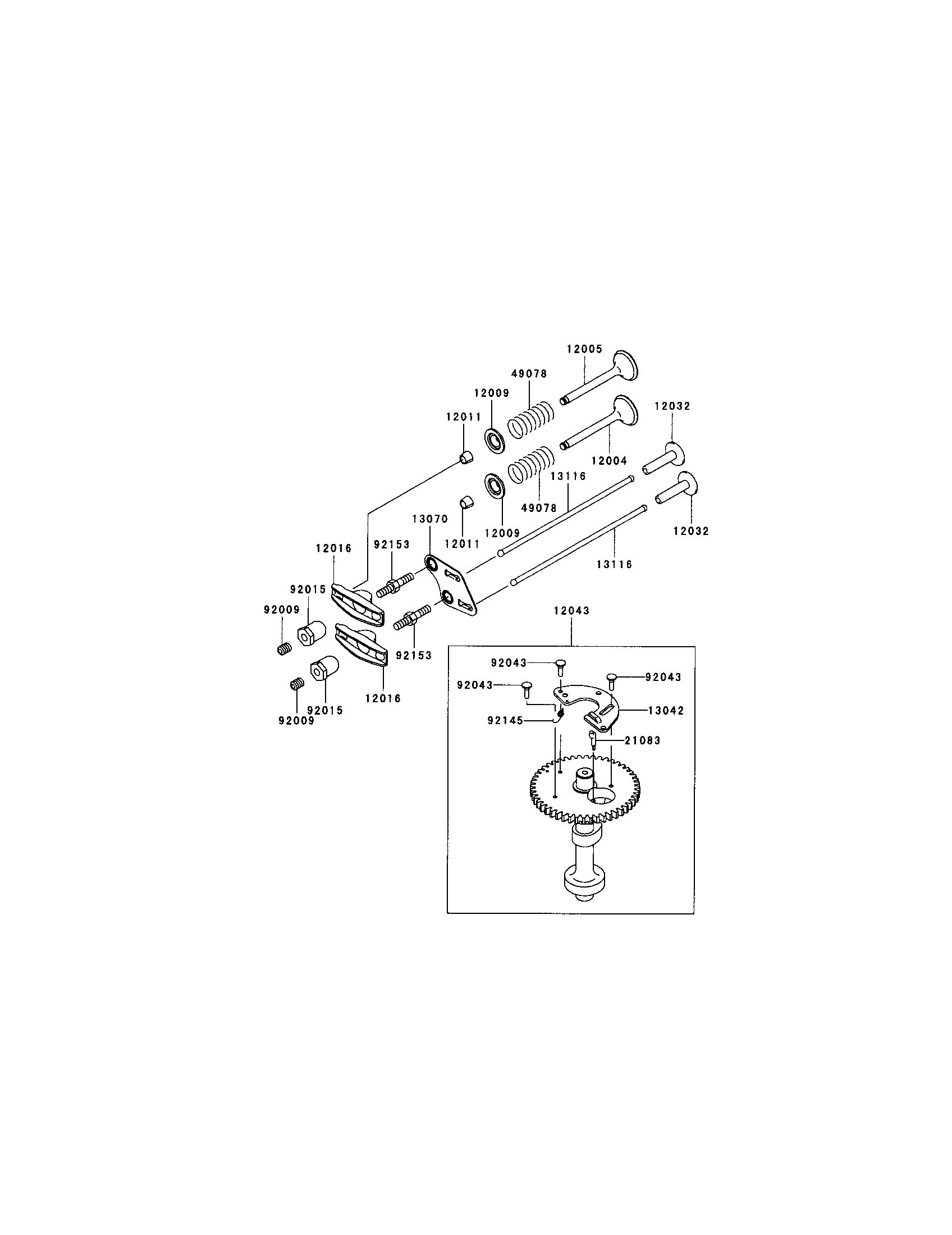

Valve / camshaft diagram

Collet

Part #KM-12011-2056

This item is not returnable
$6.57
In Stock
Band KM-92072-7003
#92072

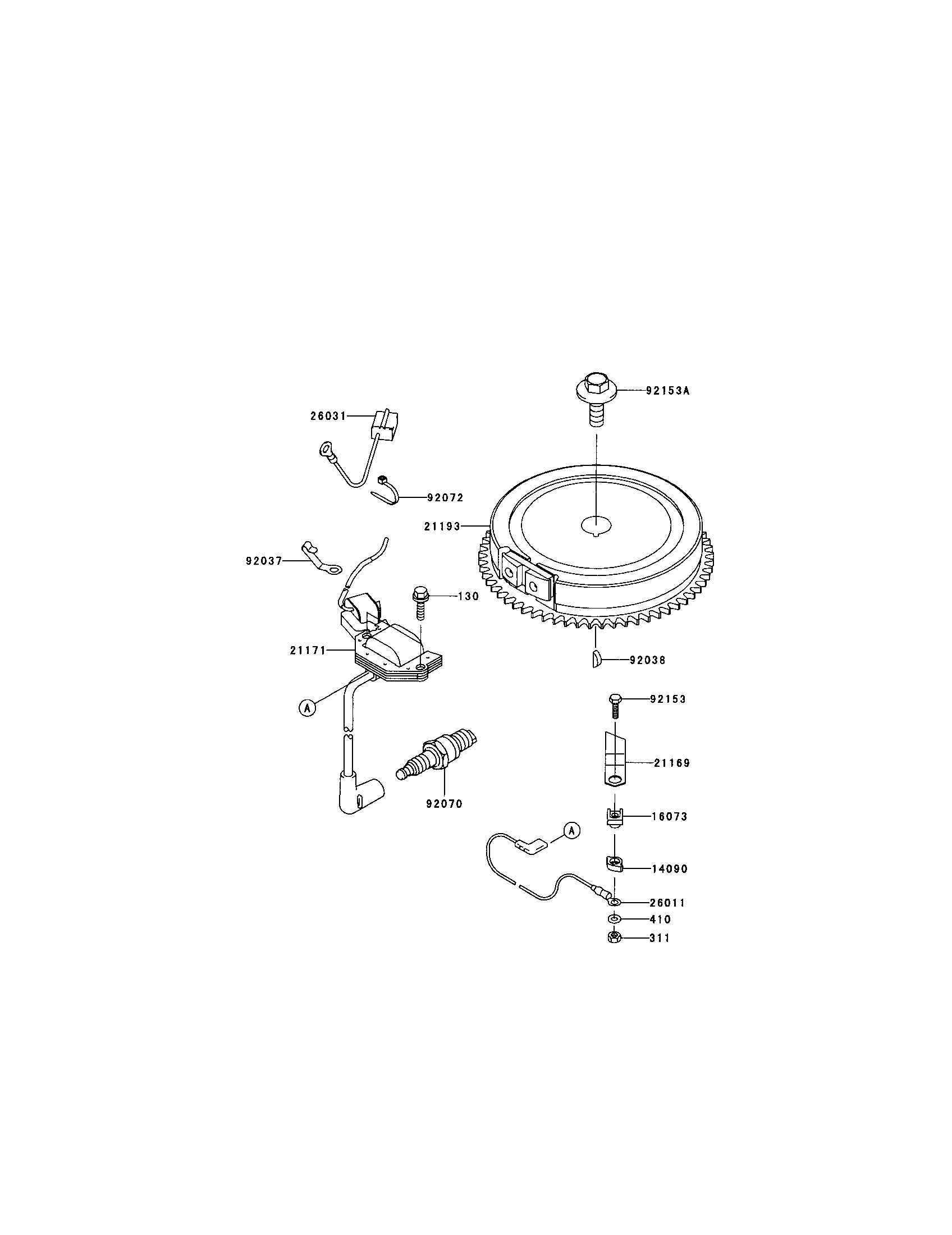

Electric - equipment diagram

Band

Part #KM-92072-7003

This item is not returnable
$3.29
In Stock
Float Valve KM-16009-2136
#16009

Carburetor diagram

Float valve

Part #KM-16009-2136

$40.42
In Stock
Throttle Spring KM-92081-2234
#92081

Carburetor diagram

Throttle spring

Part #KM-92081-2234

This item is not returnable
$6.00
In Stock
Throttle Screw KM-92009-2349
#92009A

Carburetor diagram

Throttle screw

Part #KM-92009-2349

This item is not returnable
$3.44
In Stock
Limiter KM-39076-7001
#39076

Carburetor diagram

Limiter

Part #KM-39076-7001

$11.44
In Stock
Retainer-valve Spring KM-12009-7001
#12009

Valve / camshaft diagram

Retainer-valve spring

Part #KM-12009-7001

$9.91
In Stock
Spring-air S KM-92145-7015
#92145

Carburetor diagram

Spring-air s

Part #KM-92145-7015

This item is not returnable
$3.51
In Stock
O-ring KM-670D2016
#670

Lubrication - equipment diagram

O-ring

Part #KM-670D2016

This item is not returnable
$6.26
In Stock
