Black & Decker
Drill/Driver

Model # DW959K-2 TYPE 1 Official Black & Decker 18-v drill/driver

Here are the diagrams and repair parts for Official Black & Decker DW959K-2-TYPE-1 18-v drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Nameplate 616697-00
#23

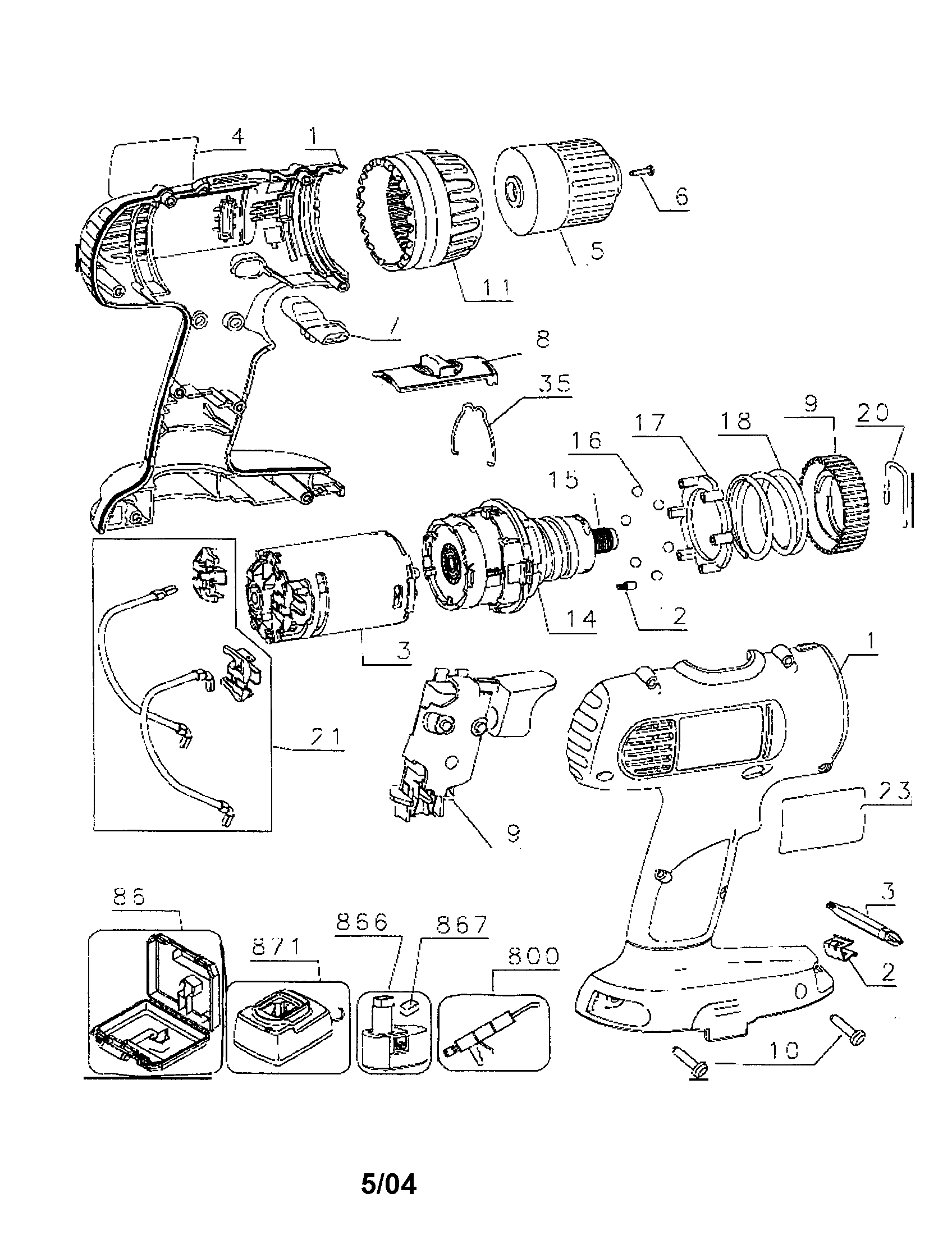

18 volt drill/driver diagram

Nameplate

Part #616697-00

The manufacturer no longer makes this part, and there's no substitute part

Spindle 392095-00
#15

18 volt drill/driver diagram

Spindle

Part #392095-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 397303-00
#17

18 volt drill/driver diagram

Plate

Part #397303-00

The manufacturer no longer makes this part, and there's no substitute part

Scrwdrvbit 607918-41
#3

18 volt drill/driver diagram

Scrwdrvbit

Part #607918-41

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#2

18 volt drill/driver diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Clip 798959-00
#20

18 volt drill/driver diagram

Clip

Part #798959-00

The manufacturer no longer makes this part, and there's no substitute part

F/r Button 623997-00
#7

18 volt drill/driver diagram

F/r button

Part #623997-00

The manufacturer no longer makes this part, and there's no substitute part

Clutch Spring 391912-01
#18

18 volt drill/driver diagram

Clutch spring

Part #391912-01

The manufacturer no longer makes this part, and there's no substitute part

Detent 326467-00
#12

18 volt drill/driver diagram

Detent

Part #326467-00

The manufacturer no longer makes this part, and there's no substitute part

Adj. Nut 391911-00
#19

18 volt drill/driver diagram

Adj. nut

Part #391911-00

The manufacturer no longer makes this part, and there's no substitute part
