Model # ZDIB50YA Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIB50YA ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Refrigerator Filter Dryer WR86X96
#740

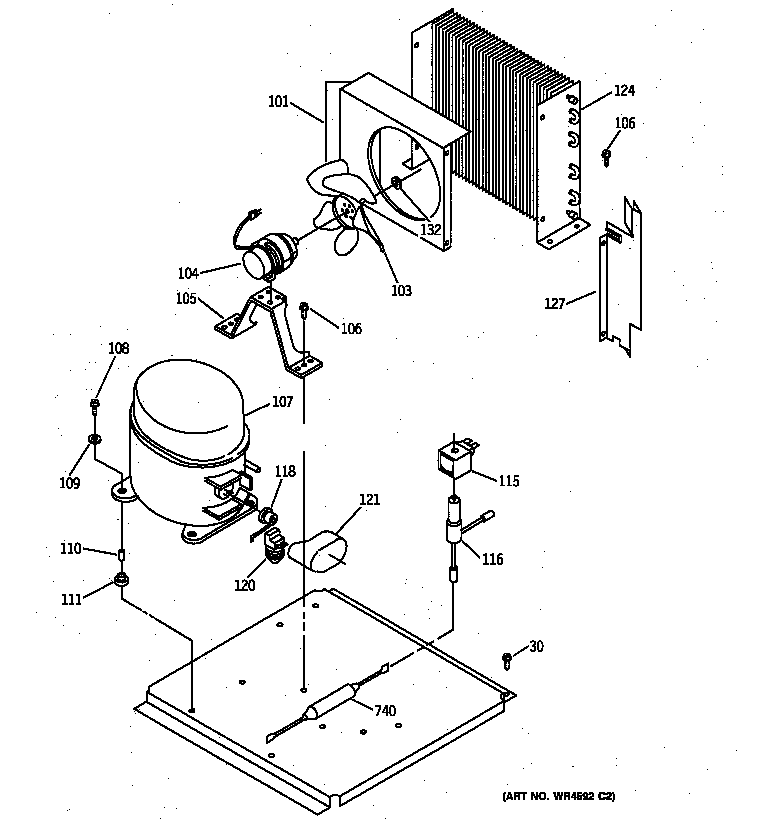

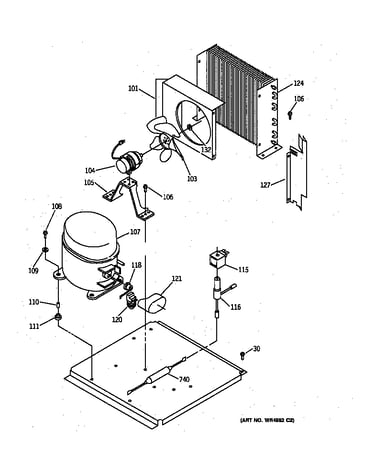

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Refrigerator Terminal Cover WR2X9564
#121

Unit parts diagram

Refrigerator terminal cover

Part #WR2X9564

$50.00
In Stock
Uc Zdi B/w 5 49-6857
#1B

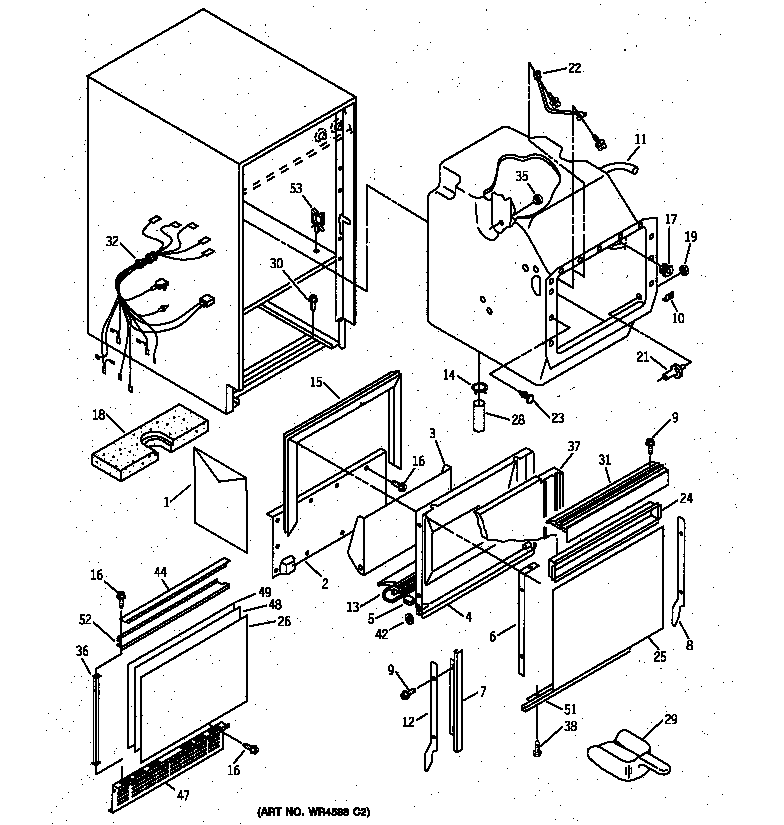

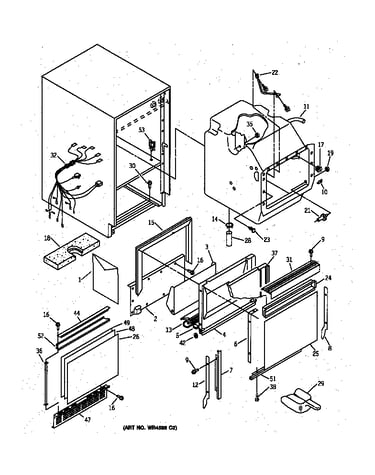

Cabinet liner & door parts diagram

Uc zdi b/w 5

Part #49-6857

$8.49
In Stock
Thumbscrew WR1X2101
Thumbscrew

Part #WR1X2101

$9.99 |
9% OFF Phone Price : $10.99
In Stock
Handle Screw WR1X2103
#85

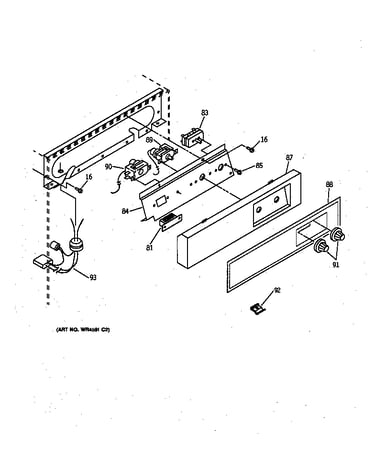

Escutcheon & control components diagram

Handle screw

Part #WR1X2103

Replaced by #WR1X5690

?
Manufacturer substitution
This part replaces WR1X2103. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Valve Body WR86X106
#116

Unit parts diagram

Refrigerator valve body

Part #WR86X106

Replaced by #WR86X25463

?
Manufacturer substitution
This part replaces WR86X106. Substitute parts can look different from the original.
$287.96 |
$10.00 OFF Phone Price : $297.96
In Stock
Refrigerator Thumbscrew WR1X2205
#34

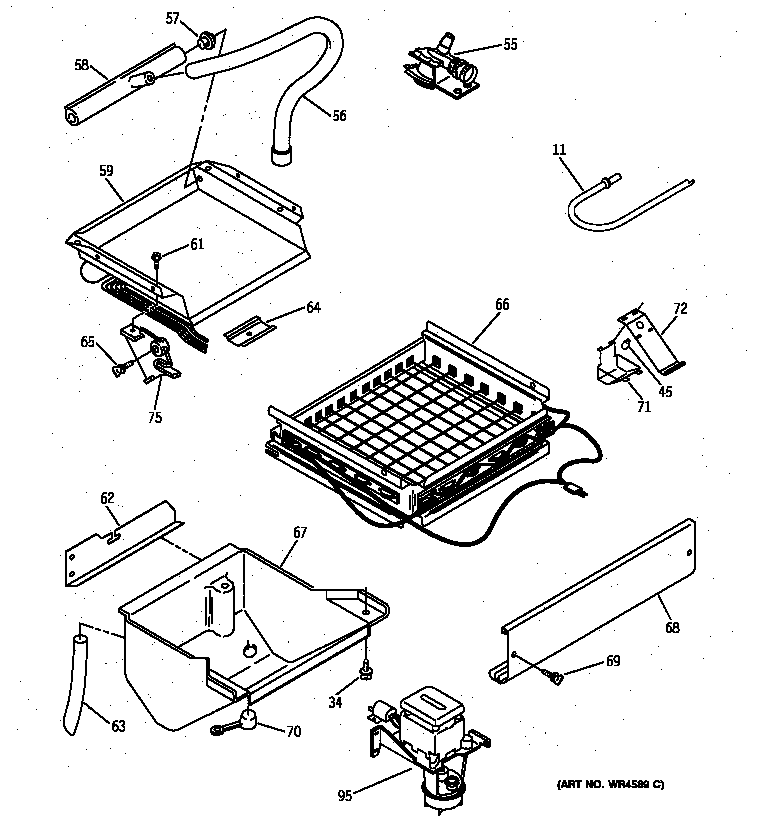

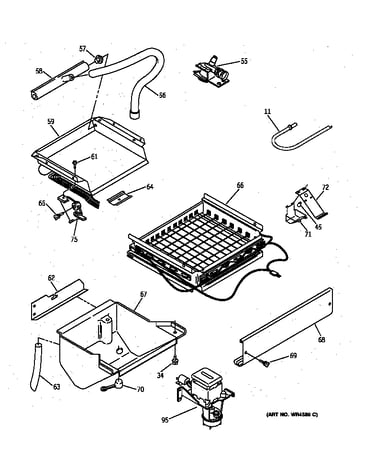

Evaporator, ice cutter grid & water parts diagram

Refrigerator thumbscrew

Part #WR1X2205

Replaced by #WR1X2101

?
Manufacturer substitution
This part replaces WR1X2205. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Compressor WR87X498
#107

Unit parts diagram

Compressor

Part #WR87X498

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X498. Substitute parts can look different from the original.
$607.54 |
$10.00 OFF Phone Price : $617.54
In Stock
Tube WR17X3975
#56

Evaporator, ice cutter grid & water parts diagram

Tube

Part #WR17X3975

The manufacturer no longer makes this part, and there's no substitute part

Panel, Exter WR78X8766
#25

Cabinet liner & door parts diagram

Panel, exter

Part #WR78X8766

The manufacturer no longer makes this part, and there's no substitute part
