Model # 143541072 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143541072 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Plug Cover 27276
#93

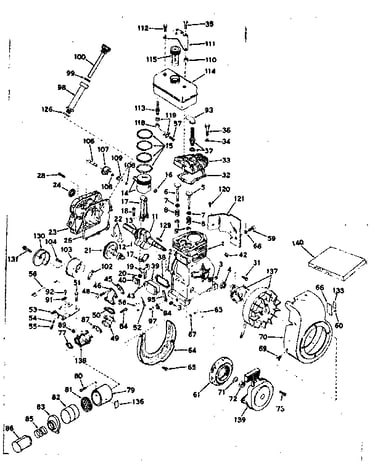

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#94

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Chmp J8 Plug 21943
#37

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#109

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

/intke Valve 29314A
#5

Basic engine diagram

/intke valve

Part #29314A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor Valve Seat Gasket 630742
#19

Carburetor diagram

Lawn & garden equipment engine carburetor valve seat gasket

Part #630742

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Screw 650506
#4

Carburetor diagram

Lawn & garden equipment engine screw

Part #650506

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Tension Spring 630766
#5

Carburetor diagram

Lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
$2.16
In Stock
