GE A3B601DXALT1 room air conditioner Parts

Here are the diagrams and repair parts for GE A3B601DXALT1 room air conditioner, as well as links to manuals and error code tables, if available.

GE A3B601DXALT1 room air conditioner
By Schematic

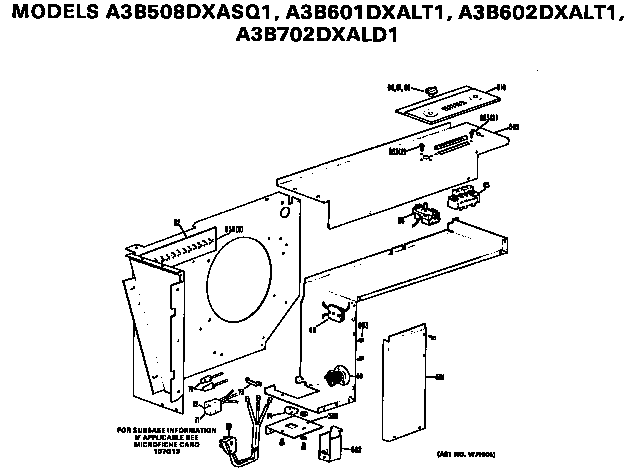

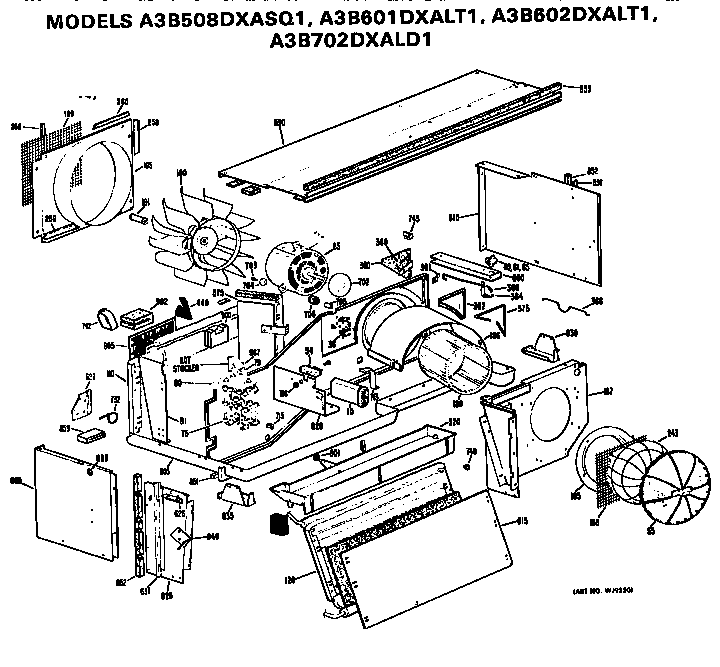

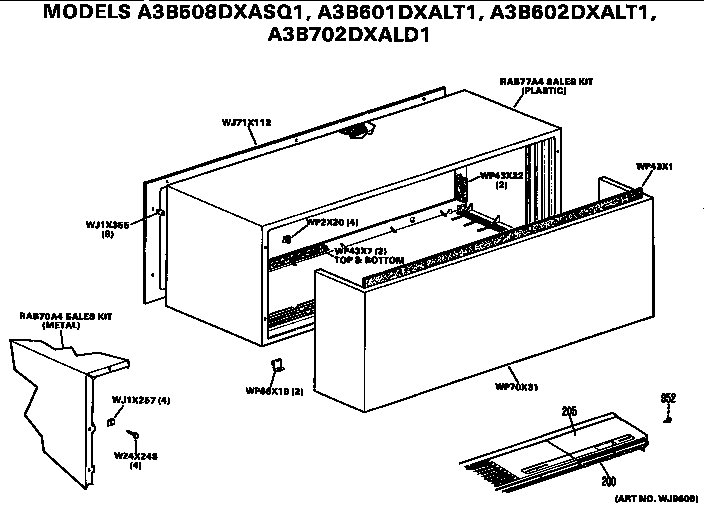

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forA3B601DXALT1 Room Air Conditioner

  • Fan Motor for GE A3B601DXALT1 - Part WP94X01

    #25

    All parts diagram

    Fan Motor

    Part #WP94X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal Cap for GE A3B601DXALT1 - Part WJ79X302

    #406

    All parts diagram

    Terminal Cap

    Part #WJ79X302

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10-16 X 3/8 Hex Ws for GE A3B601DXALT1 - Part WZ2X549

    #1006

    All parts diagram

    Screw 10-16 X 3/8 Hex Ws

    Part #WZ2X549

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser for GE A3B601DXALT1 - Part WJ88X159

    #110

    All parts diagram

    Condenser

    Part #WJ88X159

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate for GE A3B601DXALT1 - Part WP79X18

    #560

    All parts diagram

    Plate

    Part #WP79X18

    The manufacturer no longer makes this part, and there's no substitute part

  • Left Rear Side Panel for GE A3B601DXALT1 - Part WP81X01

    #605

    All parts diagram

    Left Rear Side Panel

    Part #WP81X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 10-16 X 2" Hex for GE A3B601DXALT1 - Part WZ4X286

    #361

    All parts diagram

    Screw 10-16 X 2" Hex

    Part #WZ4X286

    The manufacturer no longer makes this part, and there's no substitute part

  • Sealer for GE A3B601DXALT1 - Part WJ84X29

    #NI

    All parts diagram

    Sealer

    Part #WJ84X29

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket Compressor Mount for GE A3B601DXALT1 - Part WP66X01

    #421

    All parts diagram

    Bracket Compressor Mount

    Part #WP66X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip for GE A3B601DXALT1 - Part WJ2X443

    #742

    All parts diagram

    Clip

    Part #WJ2X443

    The manufacturer no longer makes this part, and there's no substitute part
