Model # 7218822880 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218822880 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

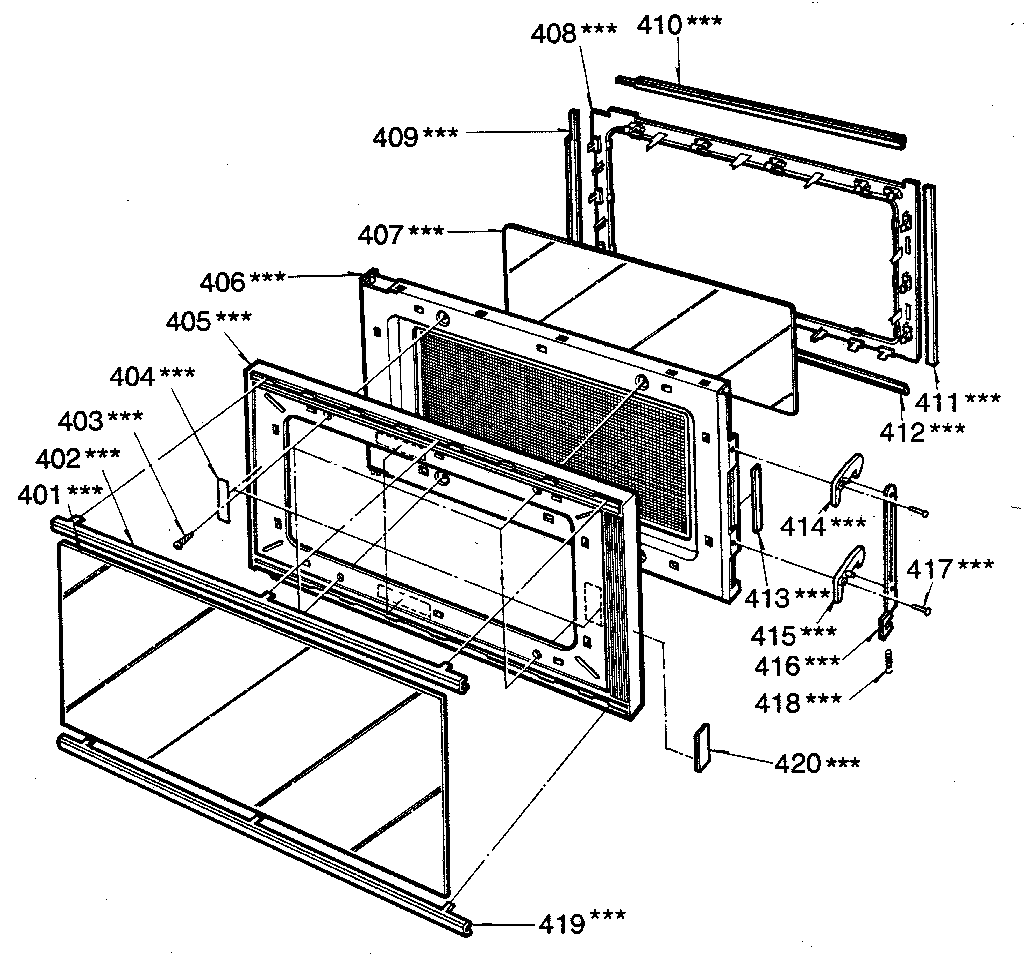

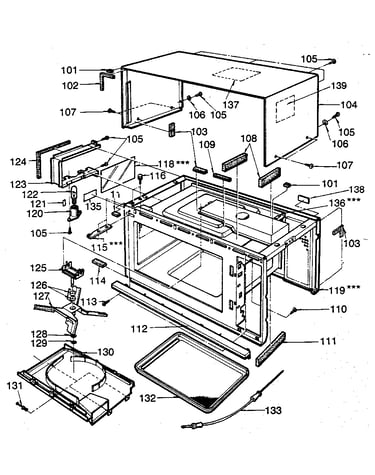

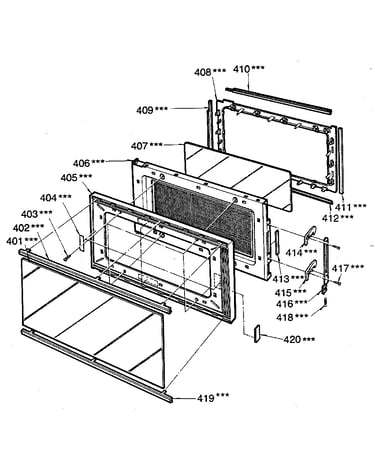

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
High-voltage Diode 500163
#317

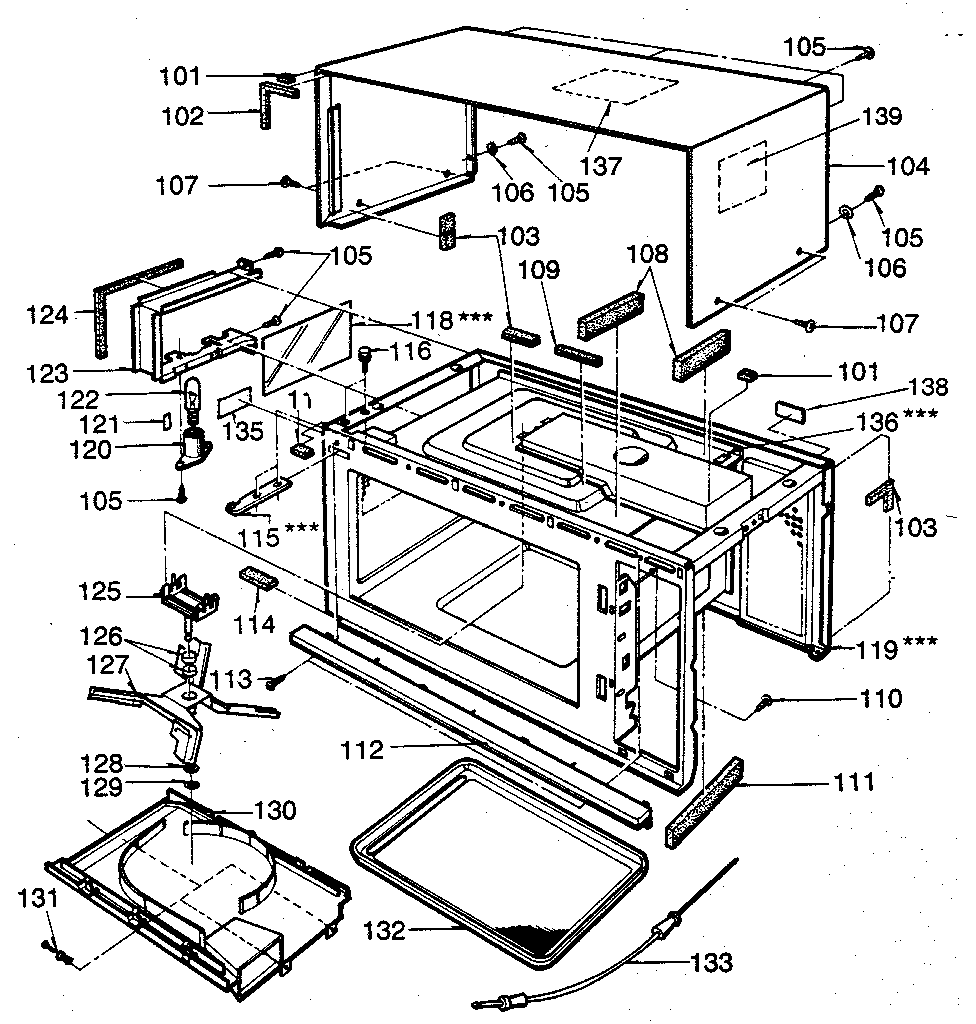

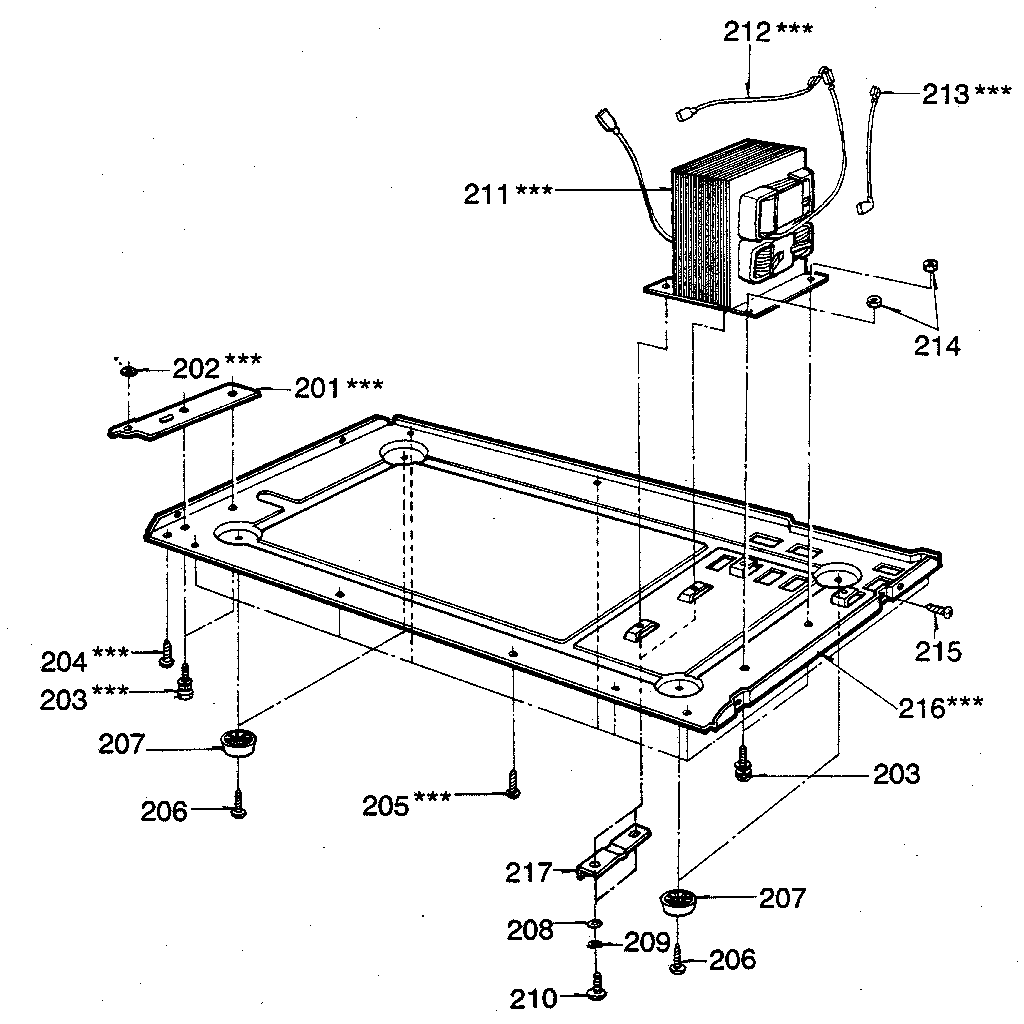

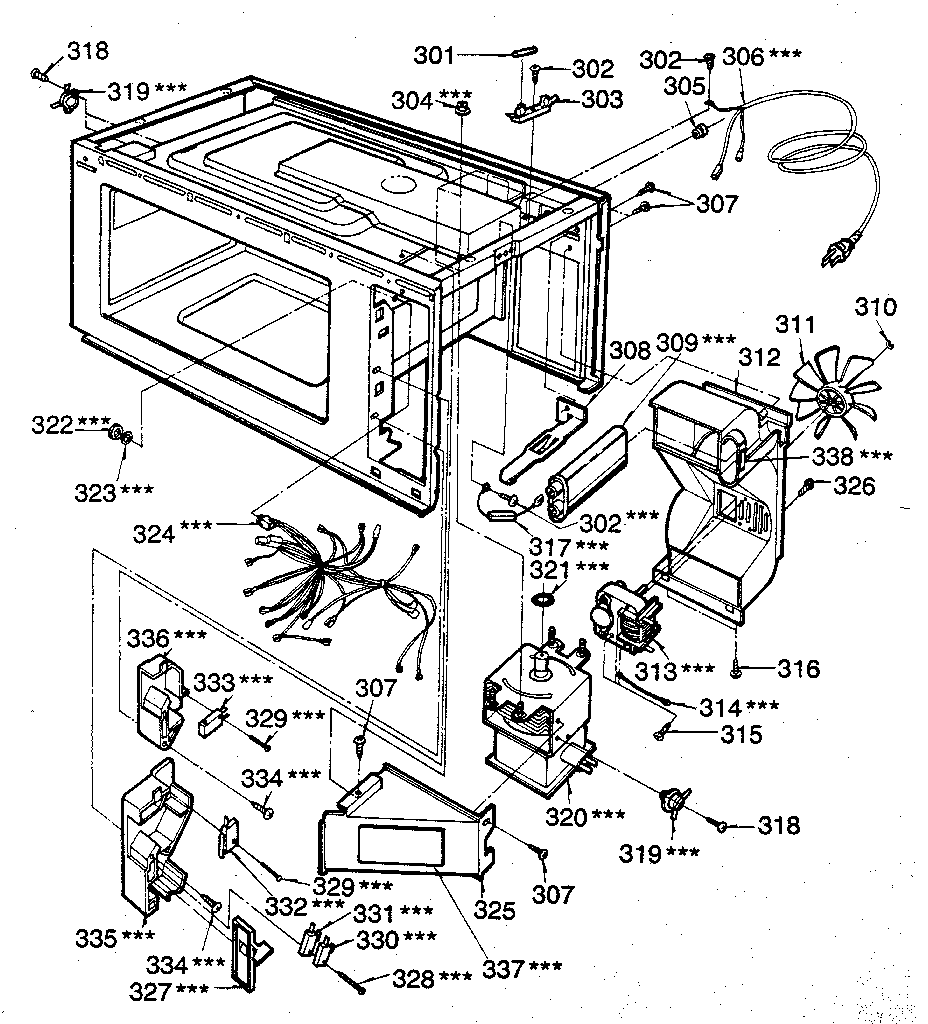

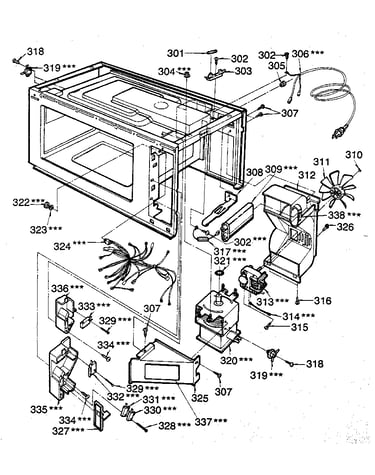

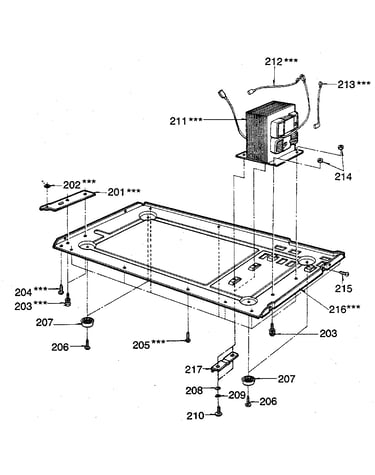

Switches and microwave diagram

High-voltage diode

Part #500163

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 500322
#320

Switches and microwave diagram

Magnetron

Part #500322

The manufacturer no longer makes this part, and there's no substitute part

Screw 500218
Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Spring 500359
#510

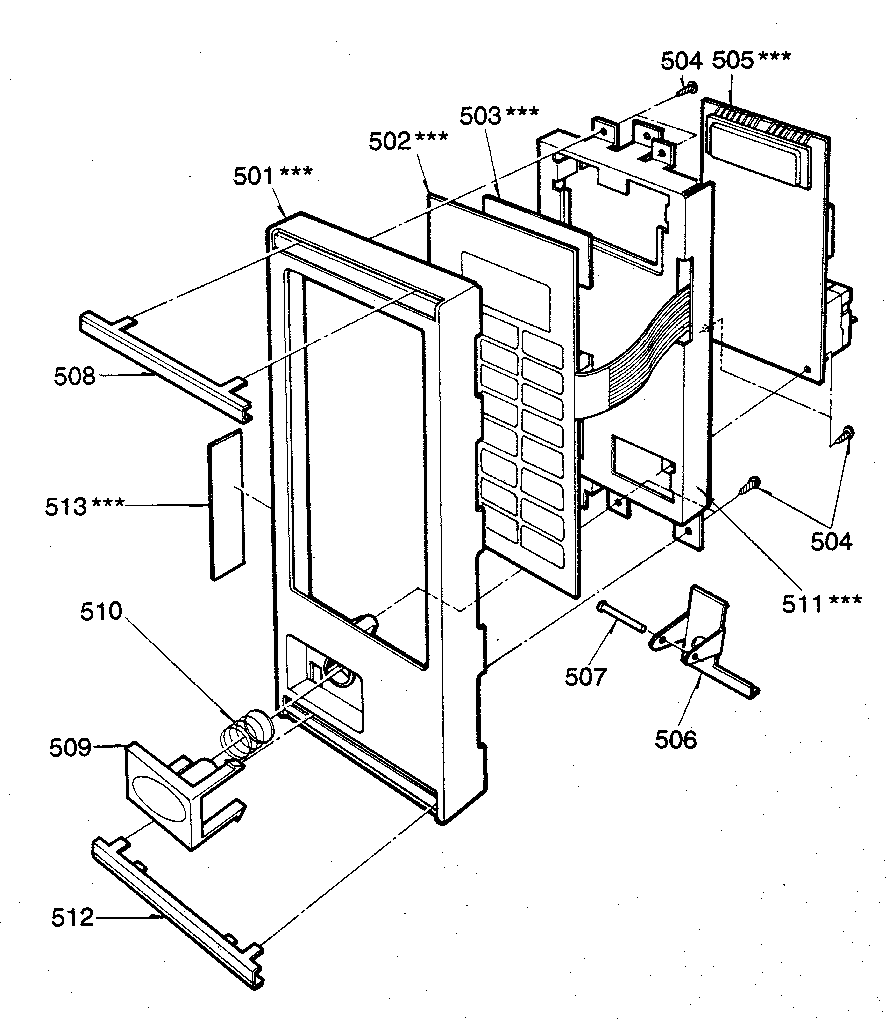

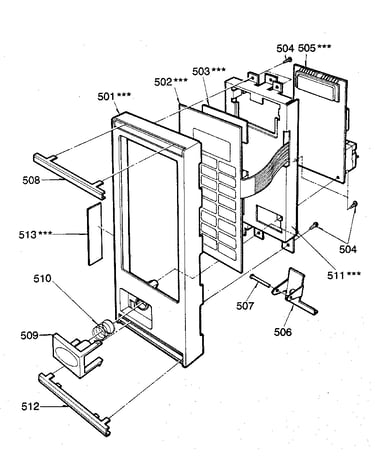

Control panel diagram

Spring

Part #500359

Replaced by #4B72023A

?
Manufacturer substitution
This part replaces 500359. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Capacitor 500004
#1E

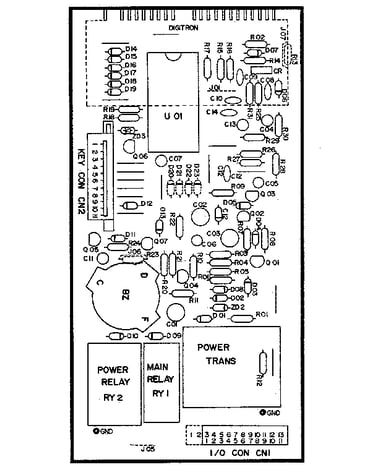

Power and control circuit board (part no. 2q10232a) diagram

Capacitor

Part #500004

The manufacturer no longer makes this part, and there's no substitute part

Zener Diode 500777
#3A

Power and control circuit board (part no. 2q10232a) diagram

Zener diode

Part #500777

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500273
Capacitor

Part #500273

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500277
#6A

Power and control circuit board (part no. 2q10232a) diagram

Transistor

Part #500277

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500281
Resistor

Part #500281

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 500080
#303

Switches and microwave diagram

Fuse holder

Part #500080

The manufacturer no longer makes this part, and there's no substitute part
