Model # 58CMR12010120 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CMR12010120 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Cover B01747
#51

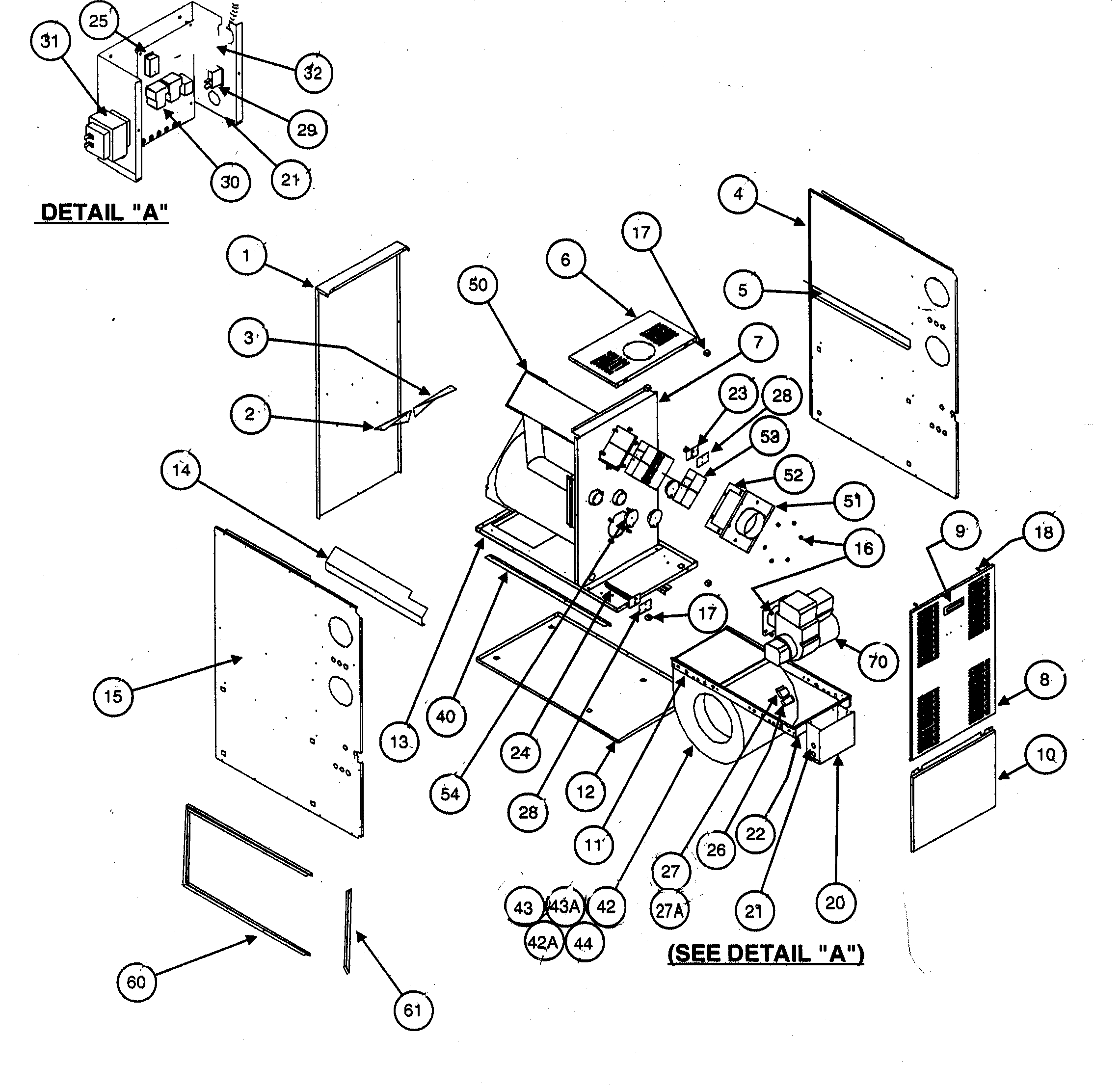

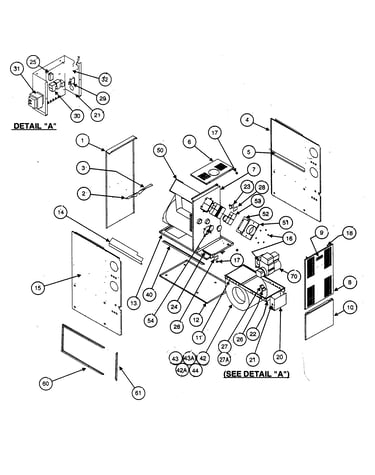

Cabinet parts diagram

Cover

Part #B01747

$105.51
In Stock
Motor Mnt B01889
#44

Cabinet parts diagram

Motor mnt

Part #B01889

$137.16
In Stock
Furnace Blower Fan Motor L06I004
#43A

Cabinet parts diagram

Furnace blower fan motor

Part #L06I004

$395.80
In Stock
Oil Pump C7001010
#NI

Cabinet parts diagram

Oil pump

Part #C7001010

$514.27
In Stock
Gasket B00205
#52

Cabinet parts diagram

Gasket

Part #B00205

$43.69
In Stock
Latch,male Z99F038
#18

Cabinet parts diagram

Latch,male

Part #Z99F038

$17.71
In Stock
Top Panel B01874
#6

Cabinet parts diagram

Top panel

Part #B01874

$114.54
In Stock
Capacitor L01I005
#27A

Cabinet parts diagram

Capacitor

Part #L01I005

$29.27
In Stock
Baffle B01751
#53

Cabinet parts diagram

Baffle

Part #B01751

$133.30 |
7% OFF Phone Price : $143.30
In Stock
Control R02R002
#24

Cabinet parts diagram

Control

Part #R02R002

$23.62
In Stock
