GE
Wall Oven/Microwave Combo

Model # CT9800SH6SS Official GE electric oven/microwave combo

Here are the diagrams and repair parts for Official GE CT9800SH6SS electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

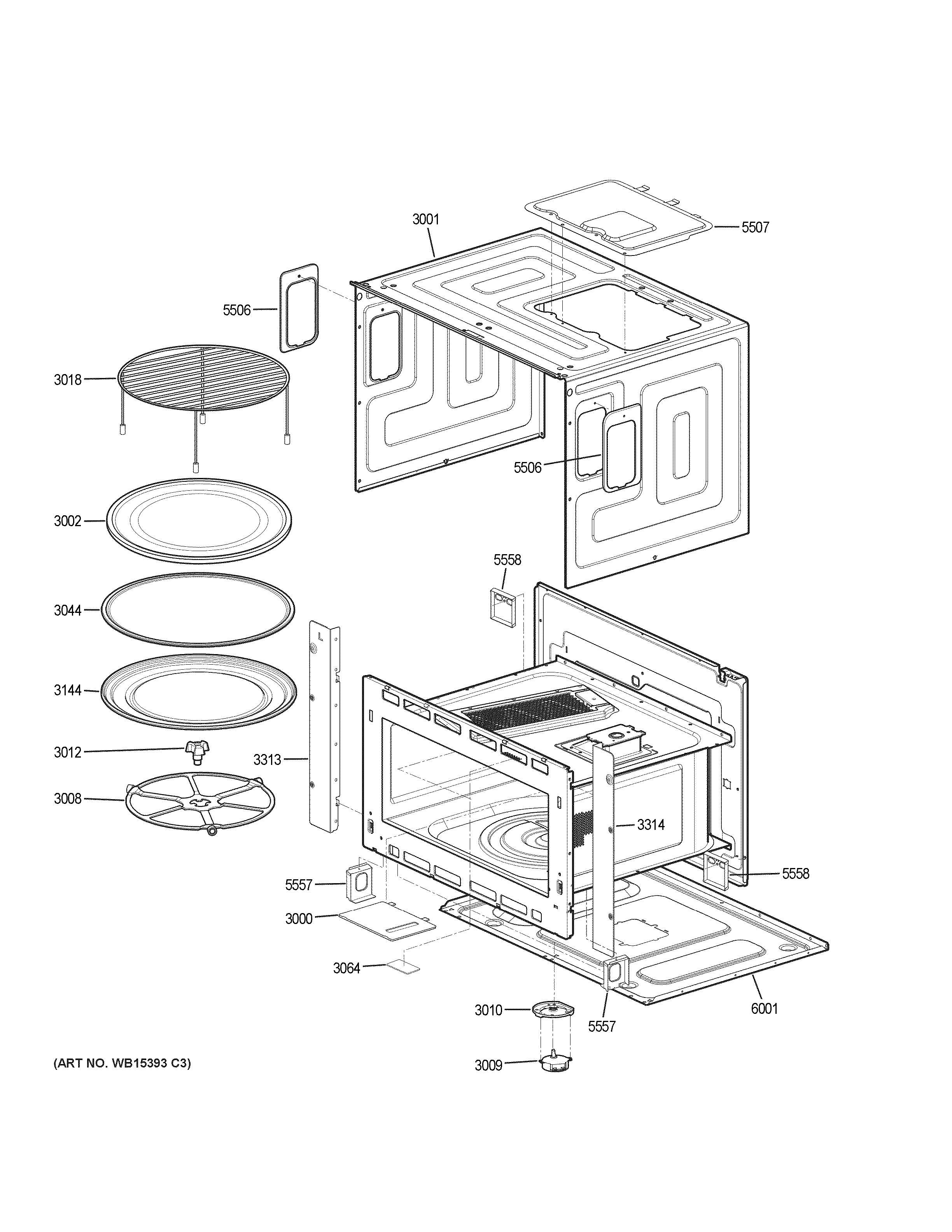

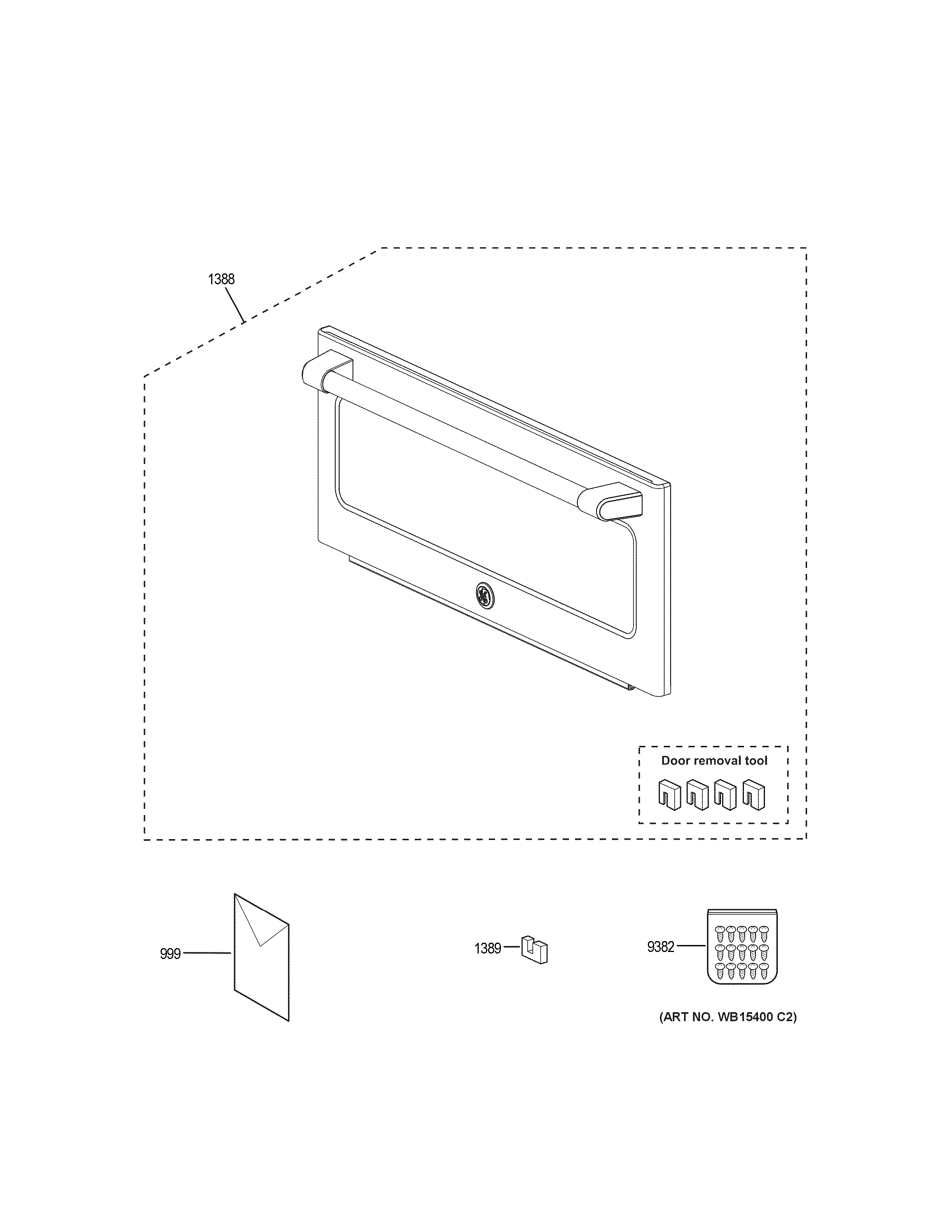

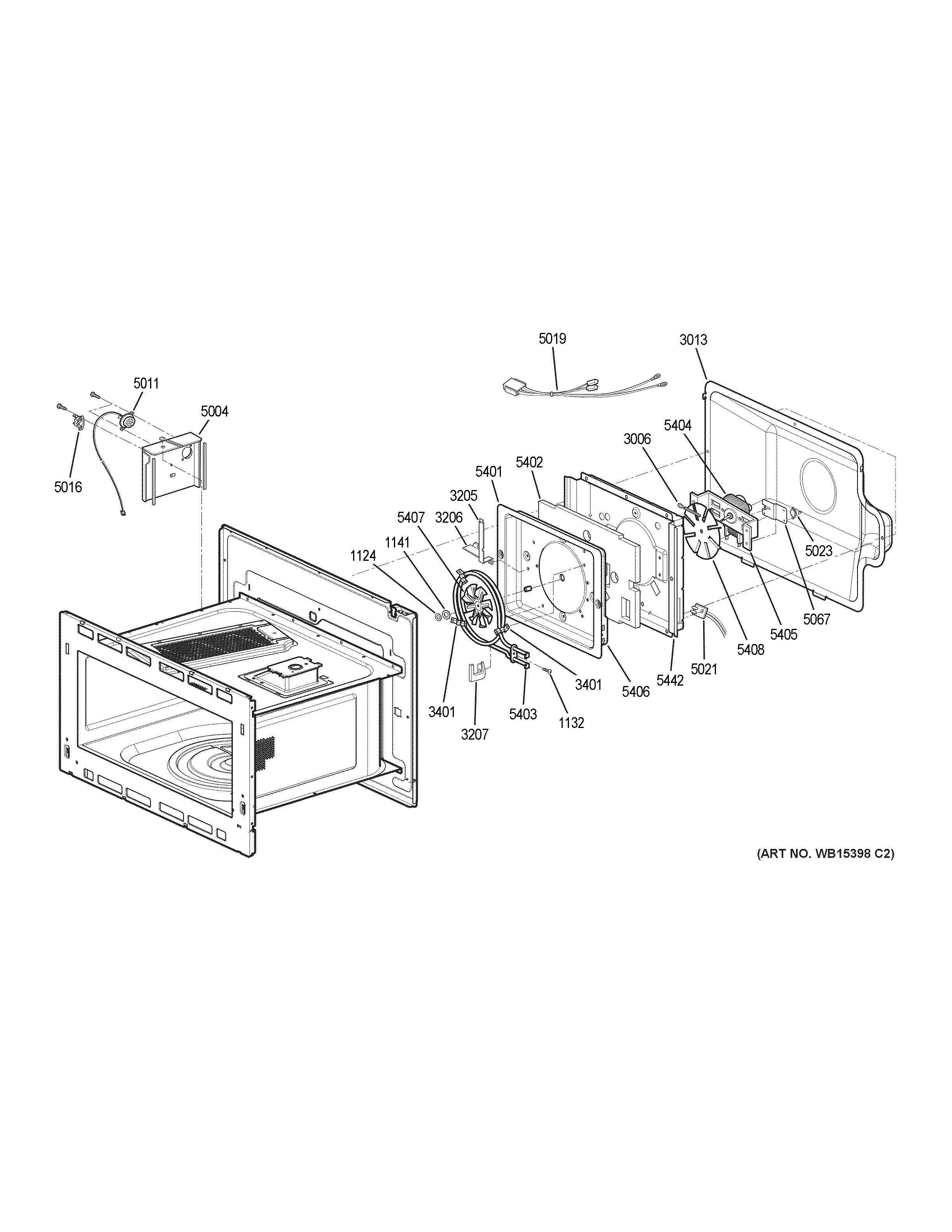

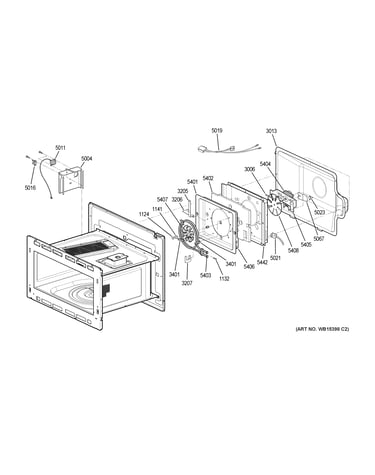

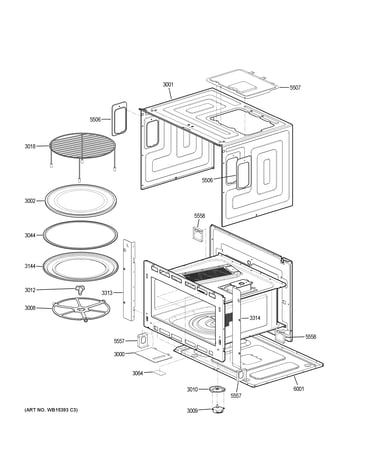

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Microwave Fuse WB27X10388
#5001

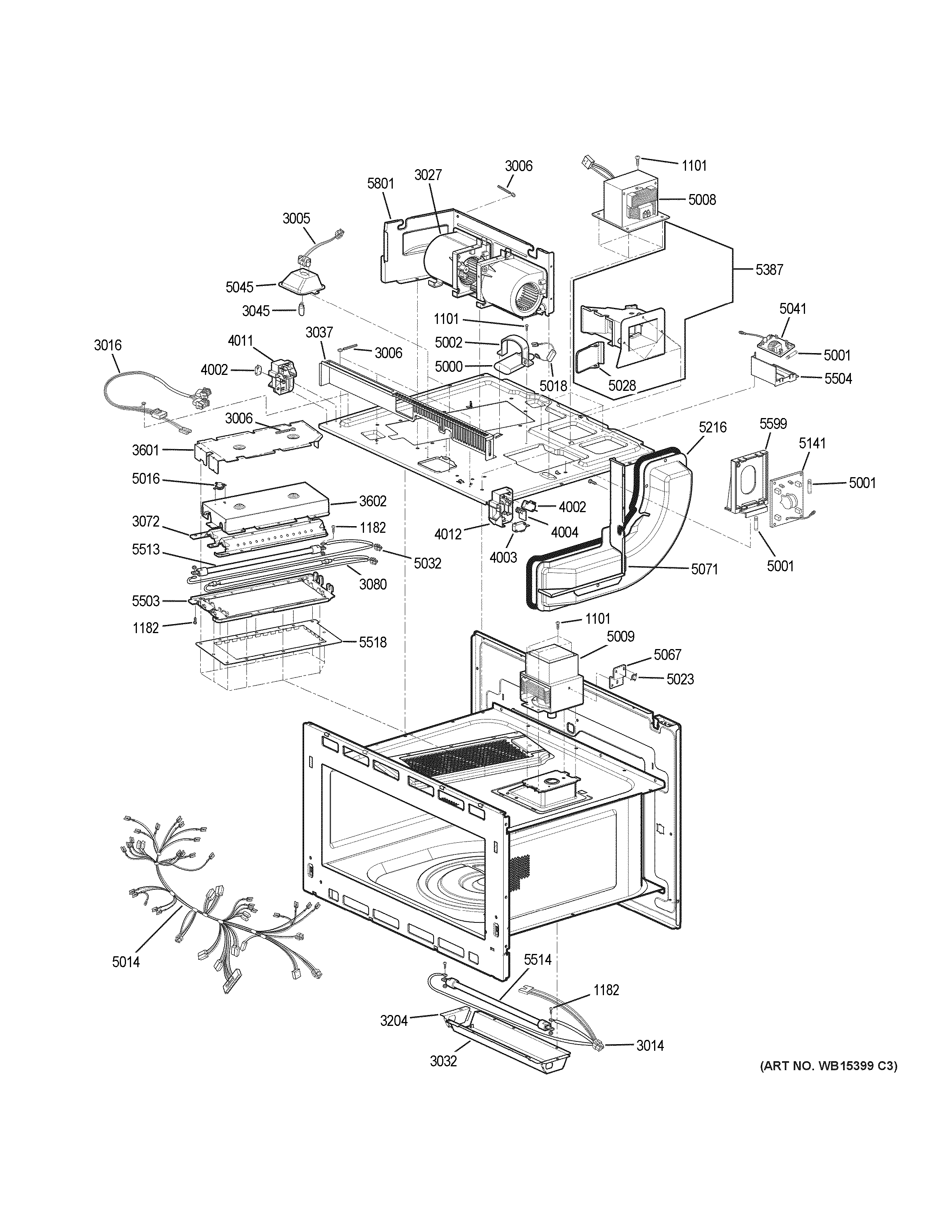

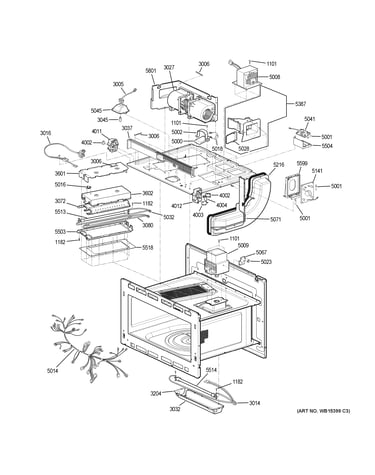

Insulator parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

Insulator parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch WB24X10029
#4002

Insulator parts diagram

Microwave door interlock switch

Part #WB24X10029

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X10029. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
17% OFF Phone Price : $29.27
In Stock
Drive Capacitor WB27X10701
#5000

Insulator parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

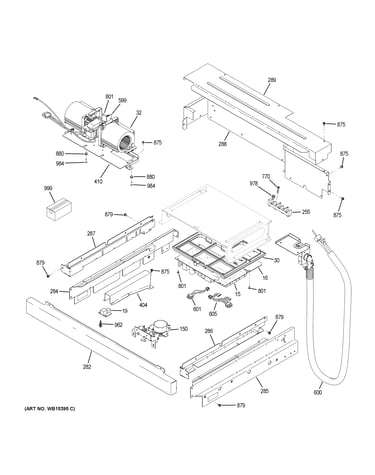

Center spacer diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
$55.77 |
8% OFF Phone Price : $60.77
In Stock
Wall Oven Door Window Assembly WB56X27480
#338

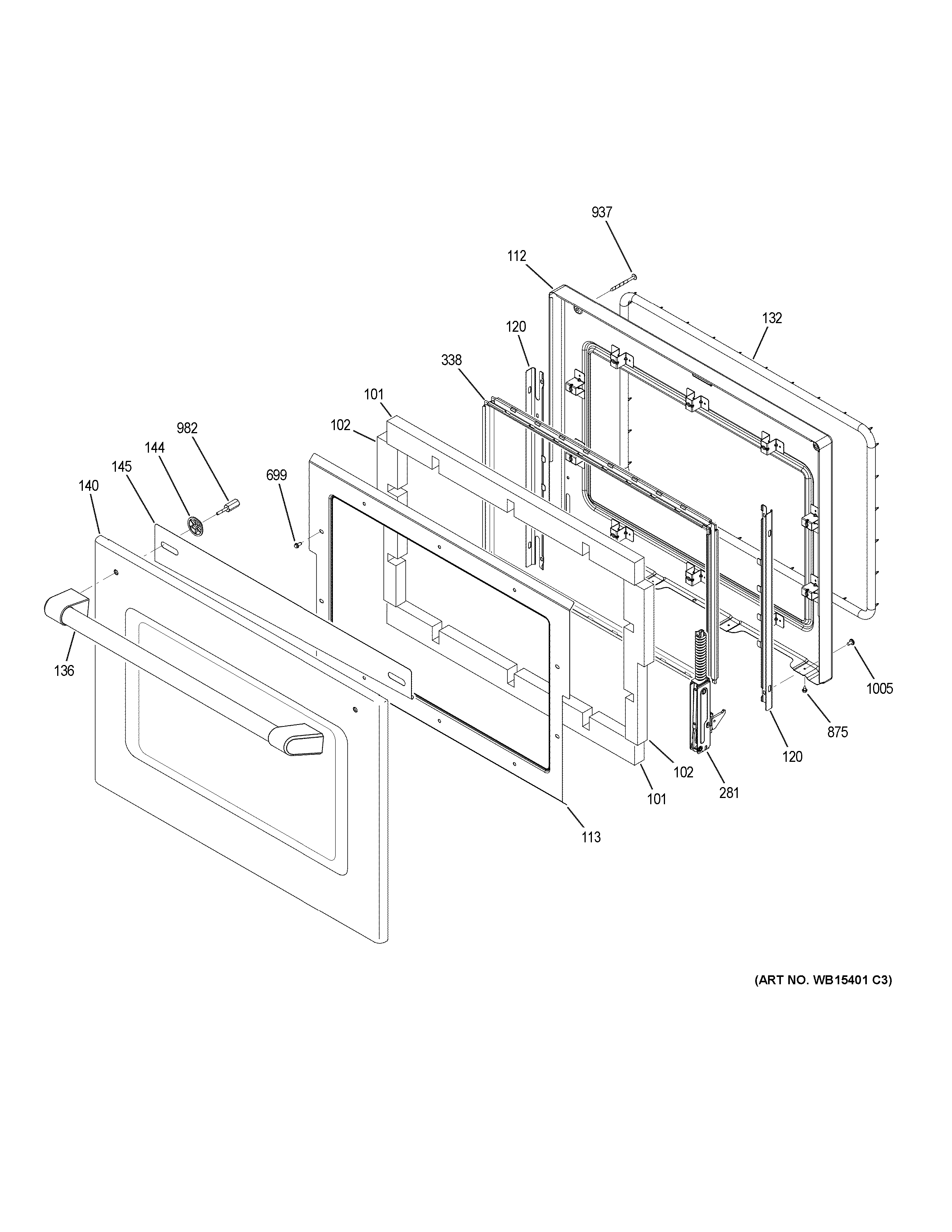

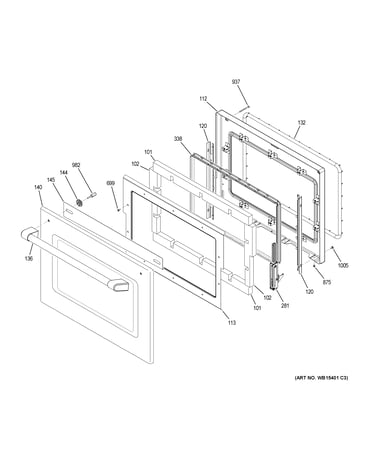

Door diagram

Wall oven door window assembly

Part #WB56X27480

BEST SELLER
$203.65 |
9% OFF Was : $222.95
In Stock
Wall Oven Temperature Sensor WB21X10165
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21X10165

BEST SELLER
$22.00 |
19% OFF Phone Price : $27.00
In Stock
Wall Oven Cooling Fan Assembly (replaces Wb26x23477) WB26X31060
#32

Center spacer diagram

Wall oven cooling fan assembly (replaces wb26x23477)

Part #WB26X31060

BEST SELLER
$76.06 |
6% OFF Phone Price : $81.06
In Stock
Cable WB18X10286
#5018

Insulator parts diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
17% OFF Phone Price : $29.73
In Stock
Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#3045

Insulator parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
