Model # 106163060 Official Craftsman air-operated caulk gun

Here are the diagrams and repair parts for Official Craftsman 106163060 air-operated caulk gun, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |

Screw ST-680
#6

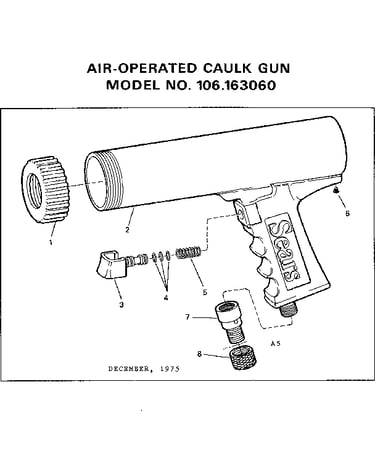

Unit diagram

Screw

Part #ST-680

The manufacturer no longer makes this part, and there's no substitute part

Gun Body AT-0031-01
#2

Unit diagram

Gun body

Part #AT-0031-01

The manufacturer no longer makes this part, and there's no substitute part

Bl Vlv Asm AT-0038

#NI

All parts diagram

Bl vlv asm

Part #AT-0038

The manufacturer no longer makes this part, and there's no substitute part

Cap AT-0030
#1

Unit diagram

Cap

Part #AT-0030

The manufacturer no longer makes this part, and there's no substitute part

Bl Vlv Body AT-0037
#8

Unit diagram

Bl vlv body

Part #AT-0037

The manufacturer no longer makes this part, and there's no substitute part

O-ring ST-0701-16
#4

Unit diagram

O-ring

Part #ST-0701-16

The manufacturer no longer makes this part, and there's no substitute part

Spring AT-0032
#5

Unit diagram

Spring

Part #AT-0032

The manufacturer no longer makes this part, and there's no substitute part

Bl Vlv Body AT-0036
#7

Unit diagram

Bl vlv body

Part #AT-0036

The manufacturer no longer makes this part, and there's no substitute part

Trigger AT-0029
#3

Unit diagram

Trigger

Part #AT-0029

The manufacturer no longer makes this part, and there's no substitute part
