Thermador
Electric Cooktop

Model #CIS365GB/02 Thermador cooktop

Here are the diagrams and repair parts for Thermador CIS365GB-02 cooktop, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 59 parts

Sensor

#137

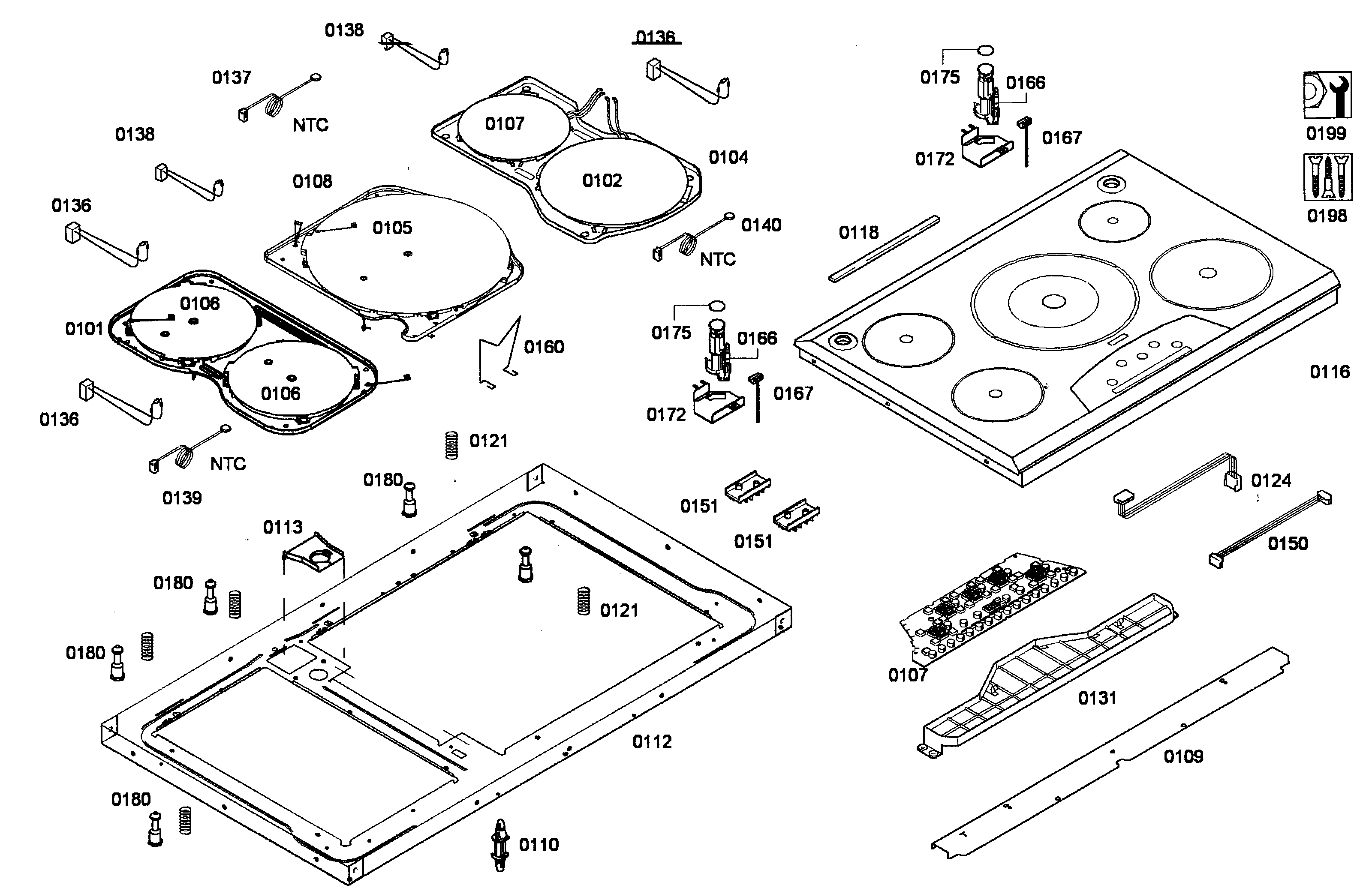

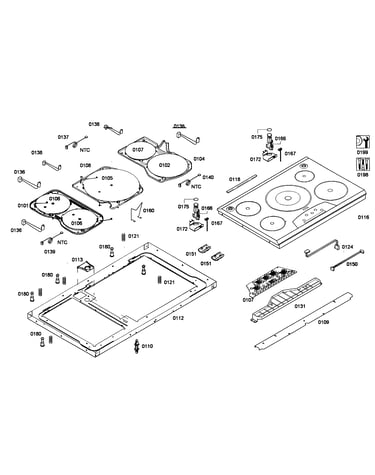

Top assy Diagram

Sensor

Part #00614198
?
Manufacturer substitution
This part replaces 614198. Substitute parts can look different from the original.
This part replaces 614198
$8.76

In Stock

Electronic PCB

#227

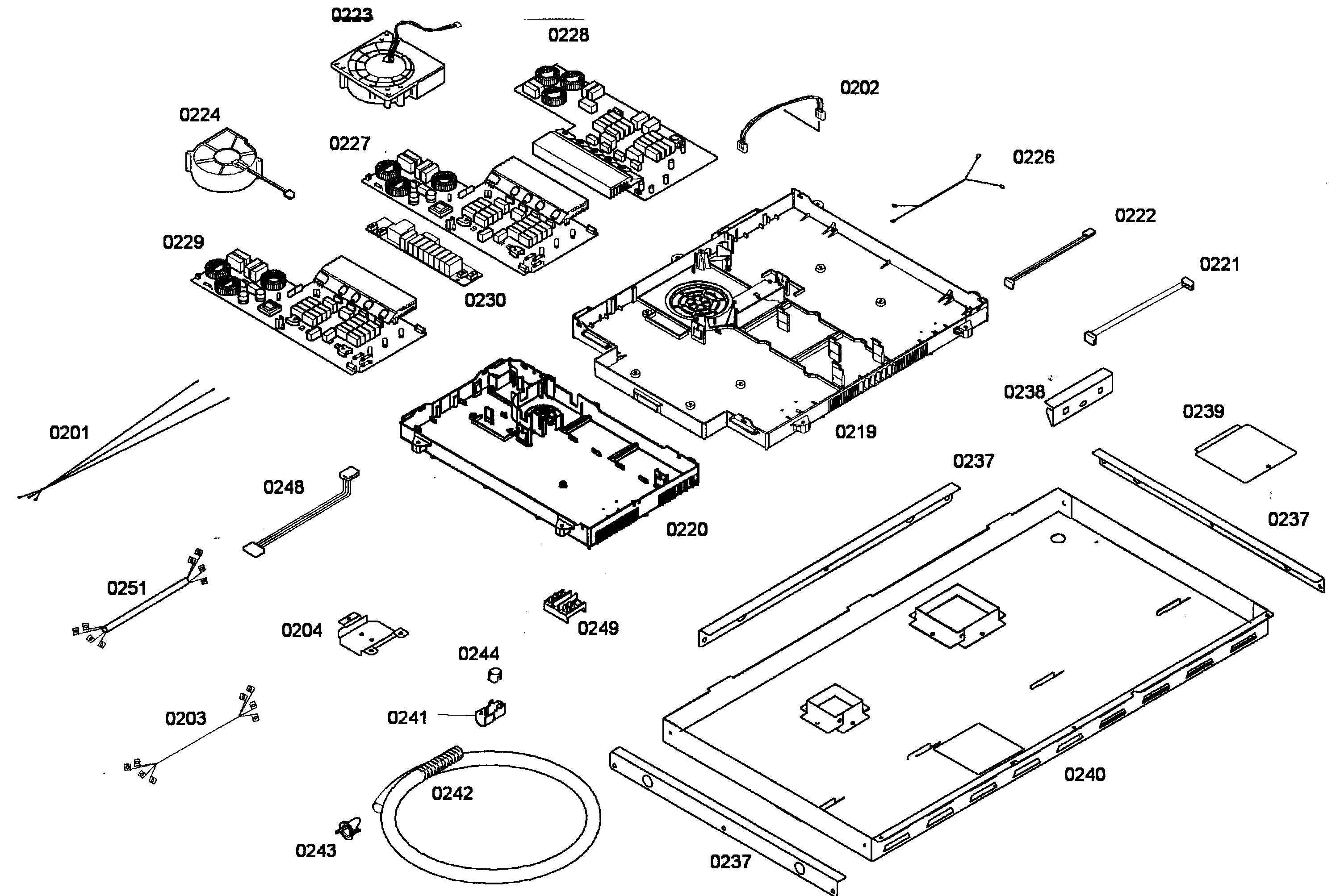

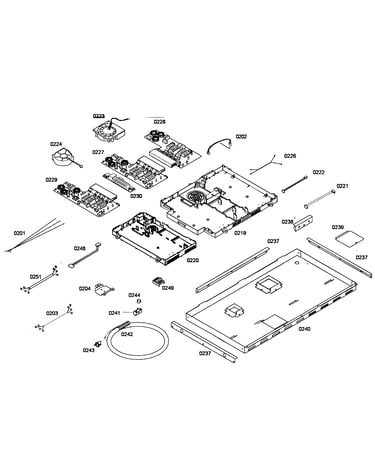

Cabinet assy Diagram

Electronic pcb

Part #00745771
?
Manufacturer substitution
This part replaces 672227. Substitute parts can look different from the original.
This part replaces 672227
$283.30

In Stock

Cover

#105

Top assy Diagram

Cover

Part #00672230
?
Manufacturer substitution
This part replaces 672230. Substitute parts can look different from the original.
This part replaces 672230
This item is not returnable
$4.98

In Stock

Spring

#160

Top assy Diagram

Spring

Part #00646129
?
Manufacturer substitution
This part replaces 646129. Substitute parts can look different from the original.
This part replaces 646129
This item is not returnable
$2.16

In Stock

Lock Cap

#113

Top assy Diagram

Lock cap

Part #00647684
?
Manufacturer substitution
This part replaces 647684. Substitute parts can look different from the original.
This part replaces 647684
This item is not returnable
$2.16

In Stock

Permanent

#NI

Top assy Diagram

Permanent

Part #00603231
?
Manufacturer substitution
This part replaces 603231. Substitute parts can look different from the original.
This part replaces 603231
$8.36

In Stock

Connection

#124

Top assy Diagram

Connection

Part #00604944
?
Manufacturer substitution
This part replaces 604944. Substitute parts can look different from the original.
This part replaces 604944
$15.75

In Stock

Fan

#224

Cabinet assy Diagram

Fan

Part #00612885
?
Manufacturer substitution
This part replaces 612885. Substitute parts can look different from the original.
This part replaces 612885
$38.42

In Stock

Cover

#172

Top assy Diagram

Cover

Part #00615656
?
Manufacturer substitution
This part replaces 615656. Substitute parts can look different from the original.
This part replaces 615656
$13.78

In Stock

Sealing

#118

Top assy Diagram

Sealing

Part #00609712
?
Manufacturer substitution
This part replaces 609712. Substitute parts can look different from the original.
This part replaces 609712
This item is not returnable
$4.16

In Stock
