Model # 11655812501 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11655812501 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Vacuum Beater Bar Belt KC28SBZTZ000
#33

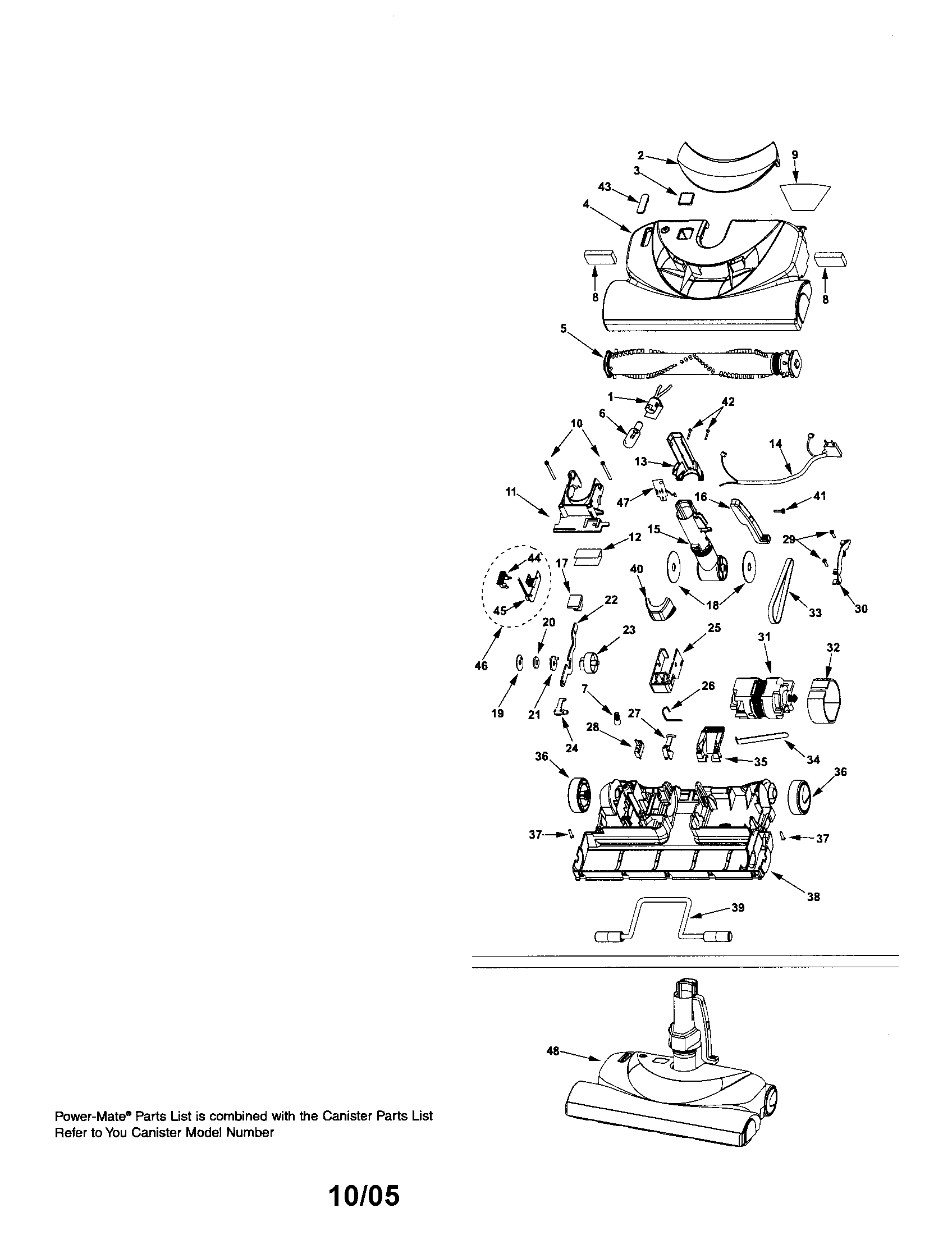

Power-mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

Replaced by #KC28SBZTZ000

?
Manufacturer substitution
This part replaces KC28SBZTZ000. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$15.95 |
11% OFF Phone Price : $17.95
In Stock
Vacuum Beater Bar 8192535
#5

Power-mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power-mate diagram

Vacuum foam filter

Part #4370713

This item is not returnable

Get free shipping with Automatic Reorder

$4.10
In Stock
Vacuum Screw 4368563
#10

Power-mate diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Wiring Label LITKC30ZAENZ000

#NI

All parts diagram

Wiring label

Part #LITKC30ZAENZ000

Replaced by #LITKC30ZAENZ000

?
Manufacturer substitution
This part replaces LITKC30ZAENZ000. Substitute parts can look different from the original.
This item is not returnable
$2.40
In Stock
Vacuum Powermate Swivel Seal KS742019
#18

Power-mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Floor Nozzle Attachment Swivel Cap 4370967
#40

Power-mate diagram

Vacuum powermate floor nozzle attachment swivel cap

Part #4370967

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wire Harness KC67VAXEZV06
#14

Power-mate diagram

Vacuum wire harness

Part #KC67VAXEZV06

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#22

Power-mate diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part

Bulb 4370018
#6

Power-mate diagram

Bulb

Part #4370018

The manufacturer no longer makes this part, and there's no substitute part
