Model # 73TCA110101D Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 73TCA110101D room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

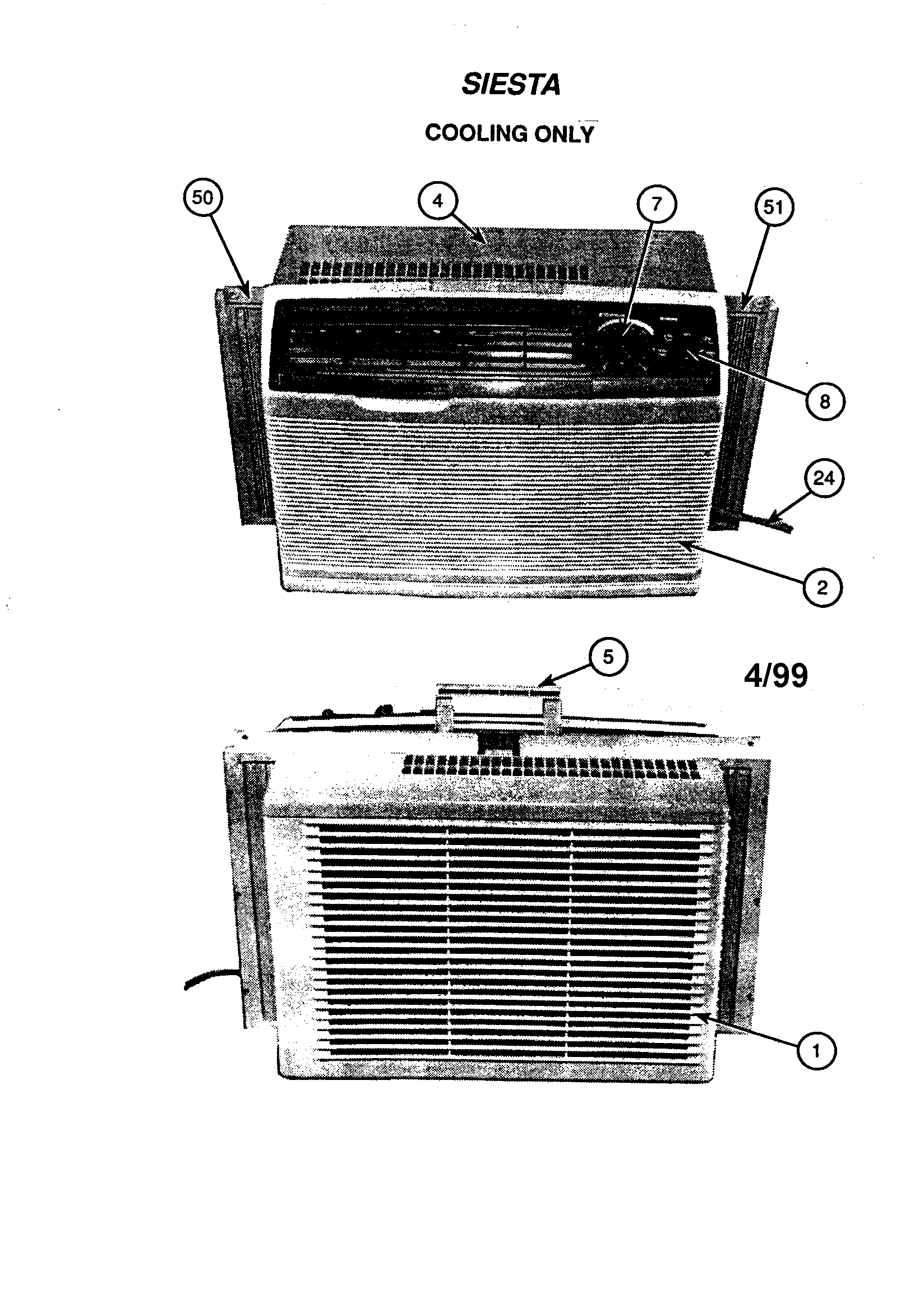

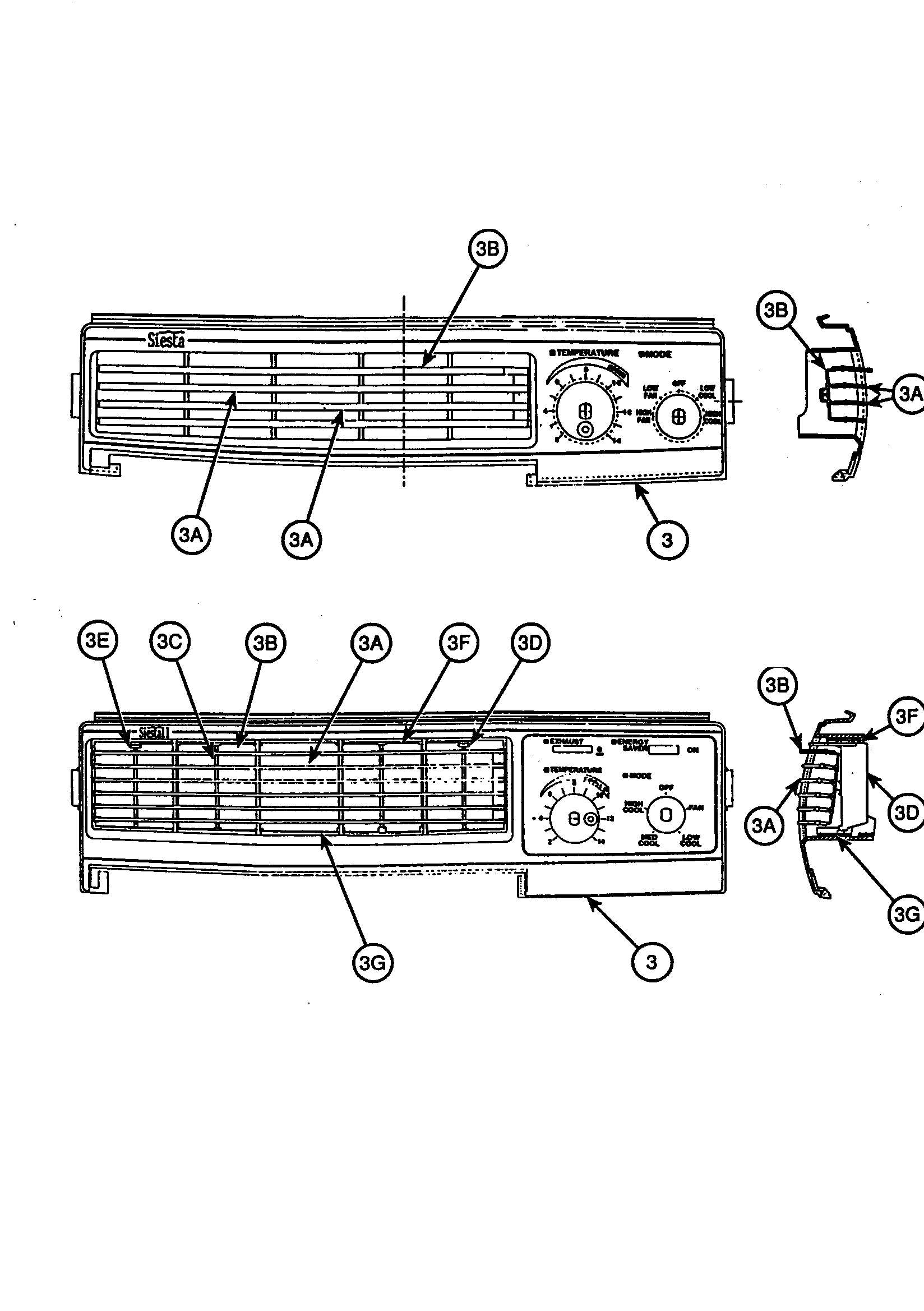

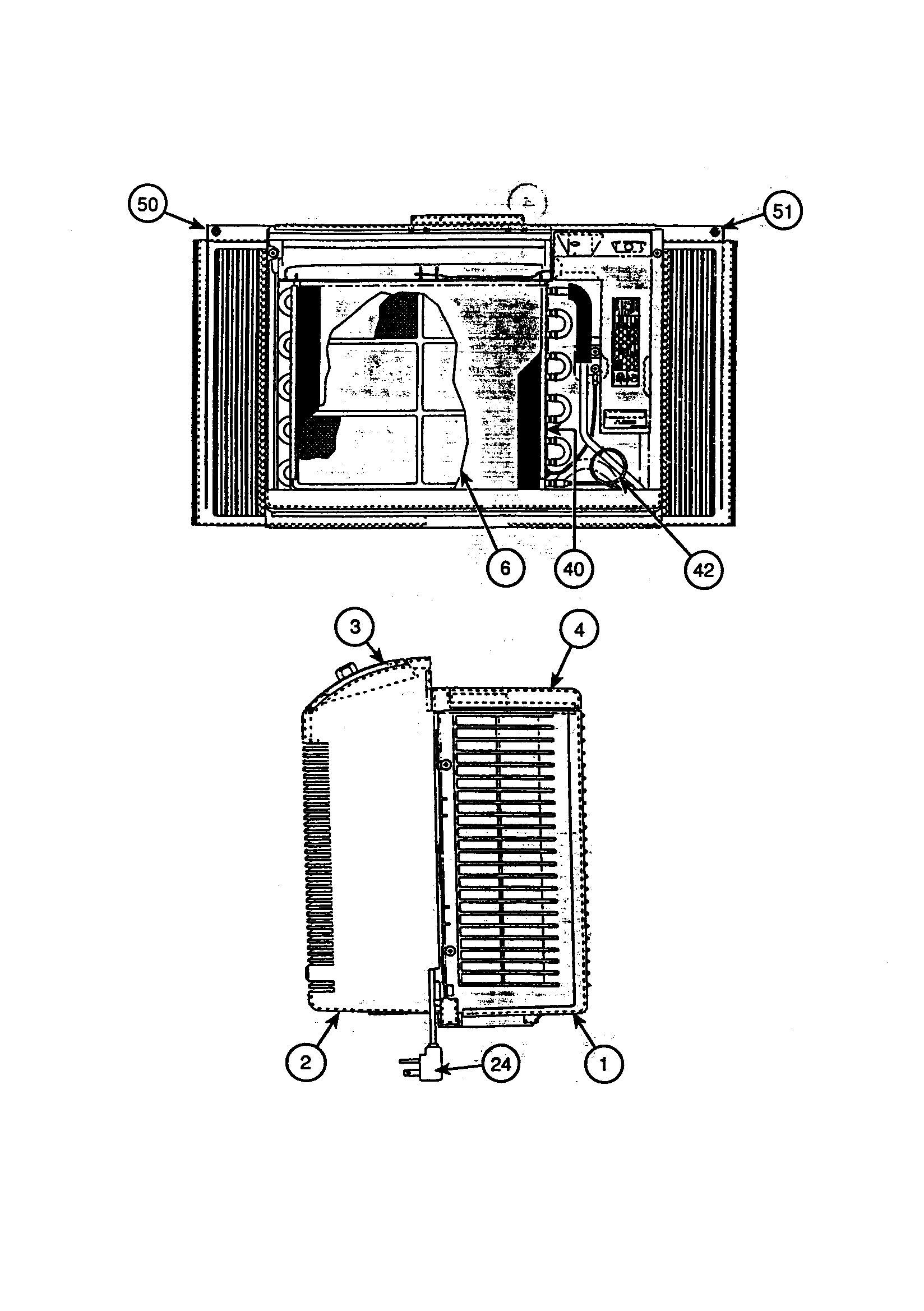

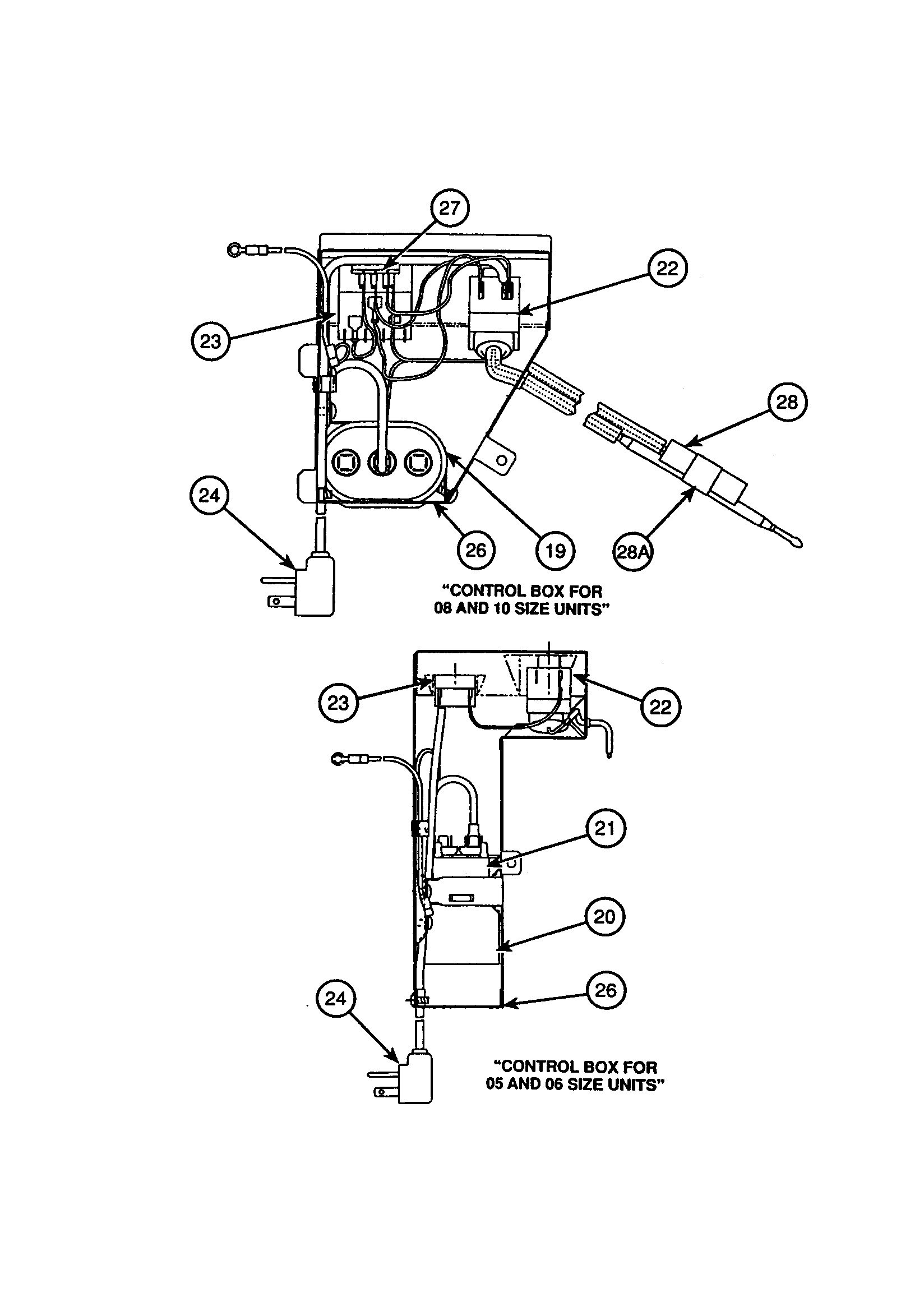

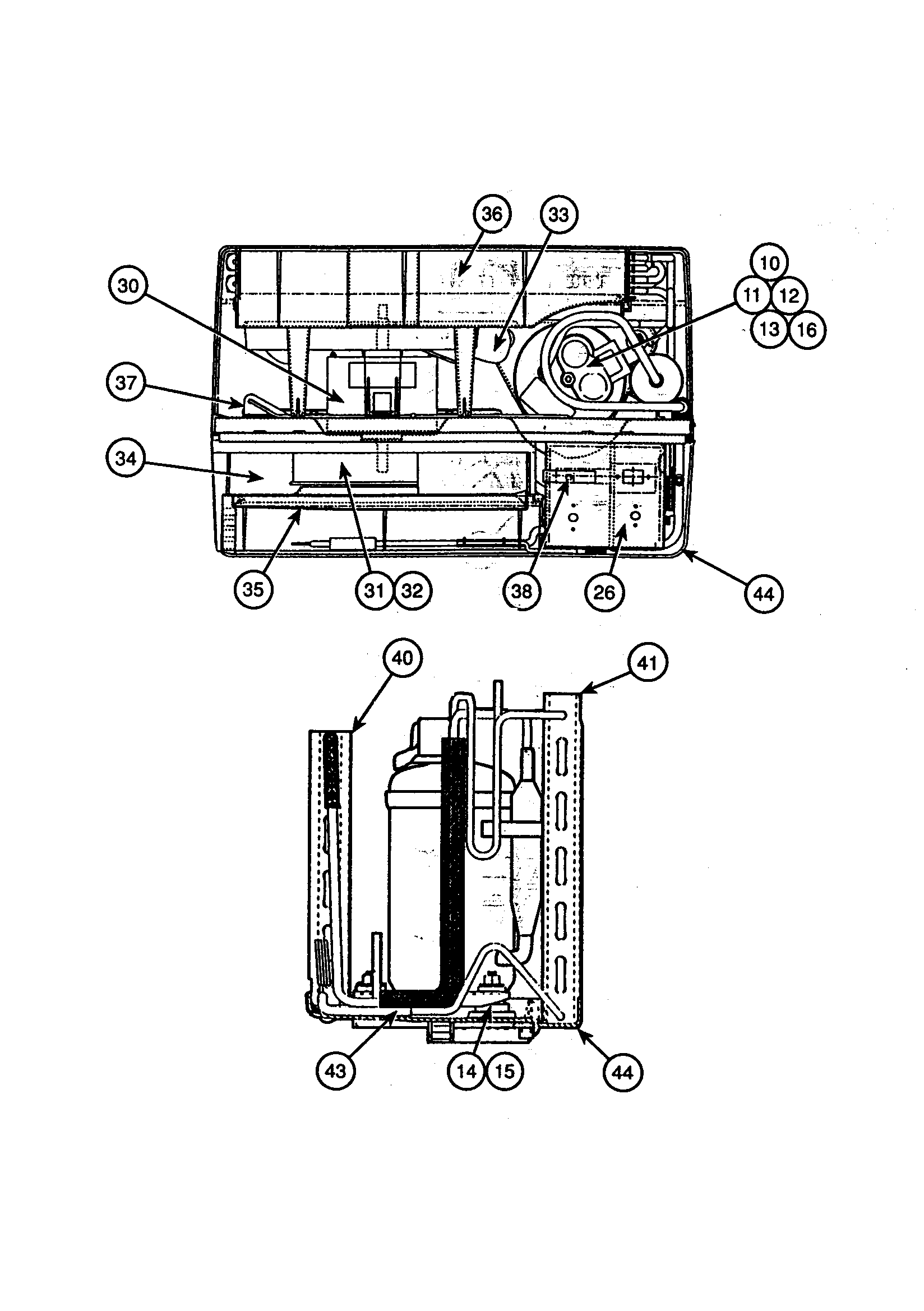

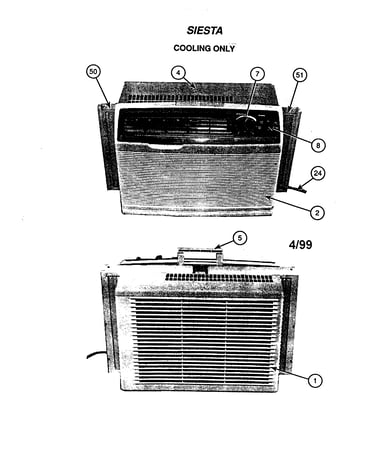

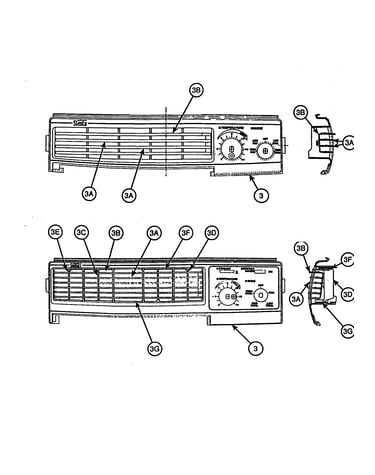

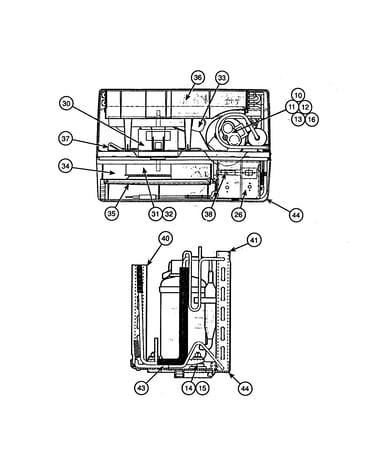

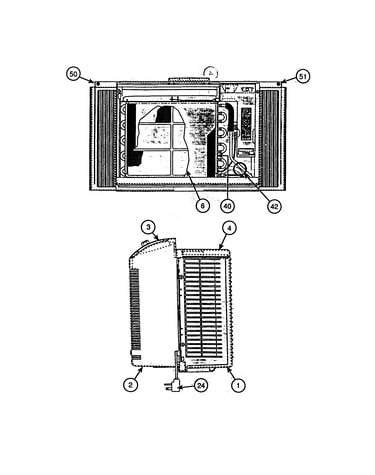

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Thermostat Knob 51TH400121

#7

All parts diagram

Thermostat knob

Part #51TH400121

Replaced by #51TH400391

?
Manufacturer substitution
This part replaces 51TH400121. Substitute parts can look different from the original.
In Stock
Coil Evaporator 73TC400651

#40A

All parts diagram

Coil evaporator

Part #73TC400651

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube (.036" Id X 44") (73tca005121b) UNAV3

#42D

All parts diagram

Capillary tube (.036" id x 44") (73tca005121b)

Part #UNAV3

The manufacturer no longer makes this part, and there's no substitute part

Partition (73tca008111p) 73TC500114

#39

All parts diagram

Partition (73tca008111p)

Part #73TC500114

The manufacturer no longer makes this part, and there's no substitute part

Clip, Knob (2) 51TH50002

#9

All parts diagram

Clip, knob (2)

Part #51TH50002

The manufacturer no longer makes this part, and there's no substitute part

Bulb Heater (anticipator) (not Shown) (51gmb009111b, 51gmc114111b) HH91ZZ087

#28

All parts diagram

Bulb heater (anticipator) (not shown) (51gmb009111b, 51gmc114111b)

Part #HH91ZZ087

The manufacturer no longer makes this part, and there's no substitute part

Switch HR56KM124

#23

All parts diagram

Switch

Part #HR56KM124

The manufacturer no longer makes this part, and there's no substitute part

Overload (461aac 008ba) HN68GP173

#11

All parts diagram

Overload (461aac 008ba)

Part #HN68GP173

The manufacturer no longer makes this part, and there's no substitute part

Bracket 51TH500142

#52

All parts diagram

Bracket

Part #51TH500142

The manufacturer no longer makes this part, and there's no substitute part

Cap Tube (63.9") (2) (462ajc015ba) / (29.3") (2) (462ajc018ba) Unav UNAV

#42A

All parts diagram

Cap tube (63.9") (2) (462ajc015ba) / (29.3") (2) (462ajc018ba) unav

Part #UNAV

The manufacturer no longer makes this part, and there's no substitute part
