Model #65164 Craftsman tool box

Here are the diagrams and repair parts for Craftsman 65164 tool box, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 5 of 5 parts

Tool Box Draw Bolt Latch

#5

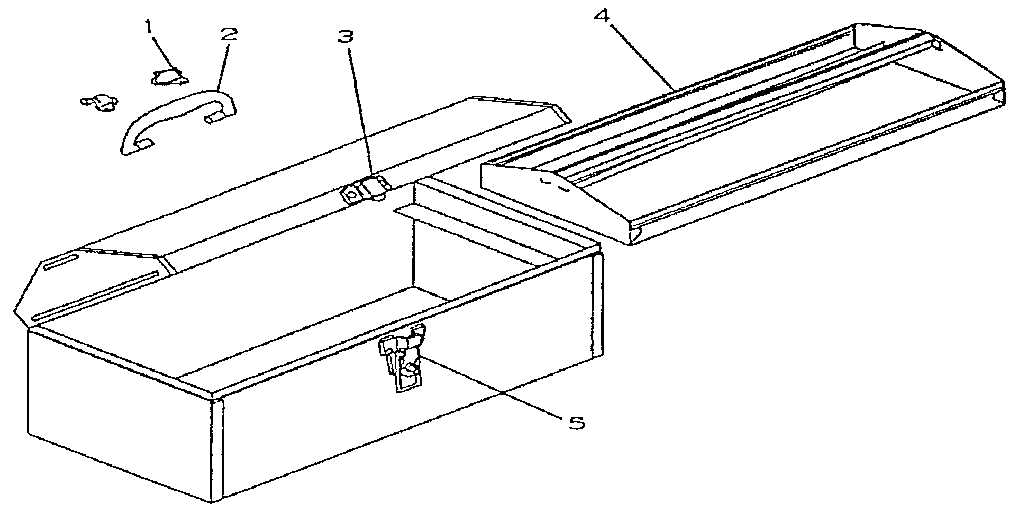

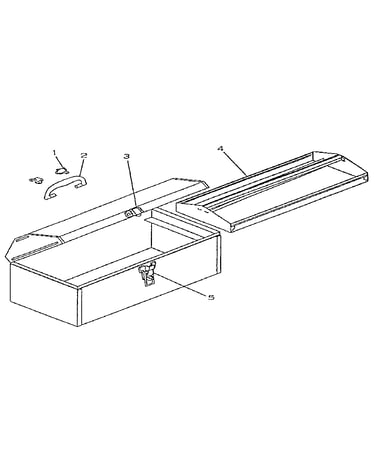

Unit parts Diagram

Tool box draw bolt latch

Part #M1004A6

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle End Cap

#1

Unit parts Diagram

Tool chest handle end cap

Part #T13915A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Box Draw Bolt Catch

#3

Unit parts Diagram

Tool box draw bolt catch

Part #M2890

The manufacturer no longer makes this part, and there's no substitute part

Handle

#2

Unit parts Diagram

Handle

Part #WT15871

The manufacturer no longer makes this part, and there's no substitute part

Tote Tray

#4

Unit parts Diagram

Tote tray

Part #A7095CGY

The manufacturer no longer makes this part, and there's no substitute part
